The 7014-C-TYN-P4S-UL is a high-speed design spindle bearing.The bearing has an internal design with optimised friction and the balls are subjected to very low centrifugal forces. Even at very high speeds, a high degree of rigidity is maintained. This makes the 7014-CTYN-P4S-UL particularly suitable for use in high-speed- or grinding spindles.

Due to their extremely tight tolerances, they are particularly suitable for applications that require high guidance accuracy and suitability for high speeds. Spindle bearings are commonly used for main spindles in machine tools.

This Special Design Allows The Bearing To Have Lower Friction And Lower Noise. The Temperature Rise Of The Bearing With A TYN Cage Is Lower Than That With A Phenolic Cage

Technical Data

Inside Ø (mm):	70
Outside Ø (mm):	110
Width (mm):	20
Tolerance for inside-Ø (mm):	0/-0,006
Tolerance for outside-Ø (mm):	0/-0,007
Tolerance for width (mm):	0/-0,12
Tolerance for shaft da (mm):	0,25/-0,25
Contact Angle:	15°
Rows Of Balls:	single row
Seal:	non seals
Ring Material:	GCr15, 100Cr6, SUJ2
Rolling Element Material:	Steel balls
Cage Material:	polyamide
Tolerance Class:	P4S
Lubrication:	no greased
Type of lubrication:	oil
Product weight:	0,59 kg

Features

· it is suitable for high radial and axial loads in one direction

· it has also an axial load carrying capacity on both sides in the X- or O-arrangement in pairs

· accuracy grade: P4S (main dimensions at least according to ISO-tolerance class 4)

· all running tolerances are classified according to ISO-tolerance class 2

· it is designed for a high running accuracy and high speeds with maximum rigidity and operational safety

· seal: open design (without seal)

· Exchange: 7014-CTYN-P4S-UL(NSK), B7014C-T-P4S-UL (FAG), SM6014CTAULP4(GMN)

Application: machine tools

Type	Dimensions					Abutment dimension				Weight	Load rating		Speed value
	mm					mm					N		r/min
	d	D	B	r（min)	r1(min)	da	Da	ra(max)	ra1(max)	m	C	C0r	Noil	Ngrease

8mm
708 C	8	22	7	0.3	0.3	11.0	19.0	0.3	0.1	0.010	3800	1730	115000	86000
708 AC	8	22	7	0.3	0.3	11.0	19.0	0.3	0.1	0.01	3750	1660	110000	75000
9mm
709 C	9	24	7	0.3	0.3	10.5	19.0	0.3	0.1	0.014	3750	1710	102000	76000
709 AC	9	24	7	0.3	0.3	10.5	19.0	0.3	0.1	0.014	3450	1600	100000	67000
10mm
71800 C	10	19	5	0.3	0.2	12.0	17.0	0.3	0.15	0.005	1660	830	115000	86000
71800 AC	10	19	5	0.3	0.2	12.0	17.0	0.3	0.15	0.005	1500	725	100000	75000
71900 C	10	22	6	0.3	0.3	12.5	19.5	0.3	0.1	0.010	2800	1360	110000	82000
71900 AC	10	22	6	0.3	0.3	12.5	19.5	0.3	0.1	0.010	2700	1300	92000	69000
7000 C	10	26	8	0.3	0.3	12.5	23.0	0.3	0.1	0.018	5450	2600	95000	71000
7000 AC	10	26	8	0.3	0.3	12.5	23.0	0.3	0.1	0.018	5250	2550	80000	60000
7200 C	10	30	9	0.6	0.6	14.5	25.5	0.6	0.3	0.030	7500	3750	85000	64000
7200 AC	10	30	9	0.6	0.6	14.5	25.5	0.6	0.3	0.030	7250	3600	72000	54000
12mm
71801 C	12	21	5	0.3	0.2	14.0	19.0	0.3	0.15	0.006	1800	980	105000	79000
71801 AC	12	21	5	0.3	0.2	14.0	19.0	0.3	0.15	0.006	1710	930	89000	67000
71901 C	12	24	6	0.3	0.3	14.5	21.5	0.3	0.1	0.011	3100	1660	97000	73000
71901 AC	12	24	6	0.3	0.3	14.5	21.5	0.3	0.1	0.011	2950	1580	83000	62000
7001 C	12	28	8	0.3	0.3	14.5	25.0	0.3	0.1	0.020	5900	3000	85000	64000
7001 AC	12	28	8	0.3	0.3	14.5	25.0	0.3	0.1	0.020	5650	2900	72500	54000
7201 C	12	32	10	0.6	0.6	16.5	27.5	0.6	0.3	0.037	8300	4150	77000	58000
7201 AC	12	32	10	0.6	0.6	16.5	27.5	0.6	0.3	0.037	8000	4050	66000	49000
15mm
71802 C	15	24	5	0.3	0.2	17.0	22.0	0.3	0.15	0.007	1900	1150	87000	65000
71802 AC	15	24	5	0.3	0.2	17.0	22.0	0.3	0.15	0.007	1790	1090	74000	55000
71902 C	15	28	7	0.3	0.3	17.5	25.5	0.3	0.1	0.015	4500	2450	79000	59000
71902 AC	15	28	7	0.3	0.3	17.5	25.5	0.3	0.1	0.015	4300	2330	67000	50000
7002 C	15	32	9	0.3	0.3	17.5	29.0	0.3	0.1	0.028	6650	3750	72000	54000
7002 AC	15	32	9	0.3	0.3	17.5	29.0	0.3	0.1	0.028	6350	3600	62000	46000
7202 C	15	35	11	0.6	0.3	19.5	30.5	0.6	0.3	0.044	9000	4850	67000	50000
7202 AC	15	35	11	0.6	0.3	19.5	30.5	0.6	0.3	0.044	8700	4700	57000	43000

17mm
71803 C	17	26	5	0.3	0.2	19.0	24.0	0.3	0.15	0.008	2000	1310	79000	59000
71803 AC	17	26	5	0.3	0.2	19.0	24.0	0.3	0.15	0.008	1890	1240	67000	50000
71903 C	17	30	7	0.3	0.3	19.5	27.5	0.3	0.1	0.017	4700	2700	71000	53000
71903 AC	17	30	7	0.3	0.3	19.5	27.5	0.3	0.1	0.017	4450	2600	61000	46000
7003 C	17	35	10	0.3	0.3	20.0	31.5	0.3	0.1	0.037	6950	4150	65000	49000
7003 AC	17	35	10	0.3	0.3	20.0	31.5	0.3	0.1	0.037	6650	4000	56000	42000
7203 C	17	40	12	0.6	0.3	21.5	35.0	0.6	0.3	0.065	11400	6350	60000	45000
7203 AC	17	40	12	0.6	0.3	21.5	35.0	0.6	0.3	0.065	11000	6100	51000	38000
20mm
71804 C	20	32	7	0.3	0.3	23.0	29.0	0.3	0.15	0.018	3650	2500	65000	49000
71804 AC	20	32	7	0.3	0.3	23.0	29.0	0.3	0.15	0.018	3450	2380	56000	42000
71904 C	20	37	9	0.3	0.3	23.0	33.5	0.3	0.15	0.036	7250	4600	60000	45000
71904 AC	20	37	9	0.3	0.3	23.0	33.5	0.3	0.15	0.036	6850	4350	51000	38000
7004 C	20	42	12	0.6	0.3	25.0	37	0.6	0.3	0.063	12200	7600	55000	41000
7004 AC	20	42	12	0.6	0.3	25.0	37	0.6	0.3	0.063	11700	7300	47000	35000
7204 C	20	47	14	1.0	0.6	26.0	41.0	1.0	0.6	0.105	16900	10000	51000	38000
7204 AC	20	47	14	1.0	0.6	26.0	41.0	1.0	0.6	0.105	16200	9800	43000	32000
25mm
71805 C	25	37	7	0.3	0.3	28.0	34.0	0.3	0.15	0.021	3650	2750	55000	41000
71805 AC	25	37	7	0.3	0.3	28.0	34.0	0.3	0.15	0.021	3450	2600	47000	35000
71905 C	25	42	9	0.3	0.3	28.0	38.5	0.3	0.15	0.041	7700	5400	50000	37000
71905 AC	25	42	9	0.3	0.3	28.0	38.5	0.3	0.15	0.041	7300	5100	43000	32000
7005 C	25	47	12	0.6	0.3	30.0	42.0	0.6	0.3	0.076	13400	9200	47000	35000
7005 AC	25	47	12	0.6	0.3	30.0	42.0	0.6	0.3	0.076	12700	8800	40000	30000
7205 C	25	52	15	1.0	0.6	31.0	46.0	1.0	0.6	0.128	19000	12600	44000	33000
7205 AC	25	52	15	1.0	0.6	31.0	46.0	1.0	0.6	0.128	18200	12000	37000	27500
30mm
71806 C	30	42	7	0.3	0.3	33.0	39.0	0.3	0.15	0.025	3850	3250	47000	35000
71806 AC	30	42	7	0.3	0.3	33.0	39.0	0.3	0.15	0.025	3650	3100	40000	30000
71906 C	30	47	9	0.3	0.3	33.0	43.5	0.3	0.15	0.047	7800	5850	44000	33000
71906 AC	30	47	9	0.3	0.3	33.0	43.5	0.3	0.15	0.047	7400	5550	38000	28500
7006 C	30	55	13	1.0	0.6	36.0	49.0	1.0	0.3	0.112	16500	11900	40000	30000
7006 AC	30	55	13	1.0	0.6	36.0	49.0	1.0	0.3	0.112	15700	11400	34000	25500
7206 C	30	62	16	1.0	0.6	36.0	55.0	1.0	0.6	0.199	25000	16700	37000	27500
7206 AC	30	62	16	1.0	0.6	36.0	55.0	1.0	0.6	0.199	24000	16100	32000	24000
35mm
71807 C	35	47	7	0.3	0.3	38.0	44.0	0.3	0.15	0.028	3950	3600	41000	31000
71807 AC	35	47	7	0.3	0.3	38.0	44.0	0.3	0.15	0.028	3750	3400	35000	26000
71907 C	35	55	10	0.6	0.3	40.0	50.5	0.6	0.15	0.075	10900	8700	38000	28500
71907 AC	35	55	10	0.6	0.3	40.0	50.5	0.6	0.15	0.075	10300	8200	32000	24000
7007 C	35	62	14	1.0	0.6	41.0	56.0	1.0	0.3	0.149	20600	15500	35000	26000
7007 AC	35	62	14	1.0	0.6	41.0	56.0	1.0	0.3	0.149	19600	14800	30000	22500
7207 C	35	72	17	1.1	0.6	43.0	64.0	1.0	0.6	0.290	35000	24300	32000	24000
7207 AC	35	72	17	1.1	0.6	43.0	64.0	1.0	0.6	0.290	33500	23200	27000	20000
40mm
71808 C	40	52	7	0.3	0.3	43.0	49.0	0.3	0.15	0.031	4050	3950	37000	27500
71808 AC	40	52	7	0.3	0.3	43.0	49.0	0.3	0.15	0.031	3800	3700	32000	24000
71908 C	40	62	12	0.6	0.3	45.0	57.5	0.6	0.15	0.109	14900	12700	33000	24500
71908 AC	40	62	12	0.6	0.3	45.0	57.5	0.6	0.15	0.109	14100	12100	28500	21500
7008 C	40	68	15	1.0	0.6	46.0	62.0	1.0	0.3	0.185	22000	17900	31500	23500
7008 AC	40	68	15	1.0	0.6	46.0	62.0	1.0	0.3	0.185	20900	17100	27000	20000
7208 C	40	80	18	1.1	0.6	48.0	72.0	1.0	0.6	0.368	36500	25500	28500	21500
7208 AC	40	80	18	1.1	0.6	48.0	72.0	1.0	0.6	0.368	35000	24400	24000	18000
45mm
71909 C	45	68	12	0.6	0.3	50.0	63.5	0.6	0.15	0.128	15200	13600	30000	22500
71909 AC	45	68	12	0.6	0.3	50.0	63.5	0.6	0.15	0.128	14300	12900	25500	19000
7009 C	45	75	16	0.6	0.3	50.0	63.5	0.6	0.15	0.238	27000	22600	28000	21000
7009 AC	45	75	16	0.6	0.3	50.0	63.5	0.6	0.15	0.238	26000	21500	24000	18000
7209 C	45	85	19	1.1	0.6	53.0	77.0	1.0	0.60	0.416	45500	33500	26000	19500
7209 AC	45	85	19	1.1	0.6	53.0	77.0	1.0	0.60	0.416	43500	32500	22500	17000
50mm
71910 C	50	72	12	0.6	0.3	55.0	67.5	0.6	0.15	0.129	15400	14500	28000	21000
71910 AC	50	72	12	0.6	0.3	55.0	67.5	0.6	0.15	0.129	14500	13700	24000	18000
7010 C	50	80	16	0.6	0.3	55.0	67.5	0.6	0.15	0.256	28000	24300	26000	19500
7010 AC	50	80	16	0.6	0.3	55.0	67.5	0.6	0.15	0.256	26500	23100	22000	16500
7210 C	50	90	20	1.1	0.6	58.0	82.0	1.0	0.6	0.486	47500	37000	24500	18500
7210 AC	50	90	20	1.1	0.6	58.0	82.0	1.0	0.6	0.486	45000	35500	20500	15500
55mm
71911 C	55	80	13	1.0	0.3	60.0	75.0	0.6	0.3	0.181	18400	17100	25000	18500
71911 AC	55	80	13	1.0	0.3	60.0	75.0	0.6	0.3	0.181	17400	16200	21500	16000
7011 C	55	90	18	1.1	1.0	62.0	83.0	1.1	0.6	0.374	32500	29500	23500	17500
7011 AC	55	90	18	1.1	1.0	62.0	83.0	1.1	0.6	0.374	30500	28000	20000	15000
7211 C	55	100	21	1.5	1.0	64.0	91.0	1.5	1.0	0.621	58000	46000	22000	16500
7211 AC	55	100	21	1.5	1.0	64.0	91.0	1.5	1.0	0.621	55500	44000	18500	14000
60mm
71912 C	60	85	13	1.0	0.3	65.0	80.0	0.6	0.3	0.195	19200	19000	23500	17500
71912 AC	60	85	13	1.0	0.3	65.0	80.0	0.6	0.3	0.195	18100	17900	20000	15000
7012 C	60	95	18	1.1	1.0	67.0	88.0	1.1	0.6	0.406	34000	32500	22000	16500
7012 AC	60	95	18	1.1	1.0	67.0	88.0	1.1	0.6	0.406	32000	31000	18500	14000
7212 C	60	110	22	1.5	1.0	70.0	101.0	1.5	1.0	0.795	70000	56500	20000	15000
7212 AC	60	110	22	1.5	1.0	70.0	101.0	1.5	1.0	0.795	66500	54000	17000	12500
65mm
71913 C	65	90	13	1.0	0.3	70.0	85.0	0.6	0.3	0.207	19500	20000	22000	16500
71913 AC	65	90	13	1.0	0.3	70.0	85.0	0.6	0.3	0.207	18300	18900	18500	14000
7013 C	65	100	18	1.1	1.0	72.0	93.0	1.1	0.6	0.431	34500	34500	20500	15500
7013 AC	65	100	18	1.1	1.0	72.0	93.0	1.1	0.6	0.431	32500	32500	17500	13000
7213 C	65	120	23	1.5	1.1	75.0	110.0	1.5	1.1	1.008	72500	61500	18500	14000
7213 AC	65	120	23	1.5	1.1	75.0	110.0	1.5	1.1	1.008	69000	59000	15500	11500
70mm
71914 C	70	100	16	1.0	0.3	76.0	94.5	0.6	0.3	0.346	24400	26000	20000	15000
71914 AC	70	100	16	1.0	0.3	76.0	94.5	0.6	0.3	0.346	23000	24500	17000	12500
7014 C	70	110	20	1.1	1.0	77.0	102.0	1.1	0.6	0.593	48500	46000	19000	14000
7014 AC	70	110	20	1.1	1.0	77.0	102.0	1.1	0.6	0.593	46000	43500	16000	12000
7214 C	70	125	24	1.5	0.6	80.0	115.0	1.5	1.1	1.100	70200	74600	17000	10000
7214 AC	70	125	24	1.5	0.6	80.0	115.0	1.5	1.1	1.100	66600	71100	15000	9000
75mm
71915 C	75	105	16	0.6	0.3	81.0	99.5	0.6	0.3	0.35	29500	31000	19000	14000
71915 AC	75	105	16	0.6	0.3	81.0	99.5	0.6	0.3	0.35	27500	29500	16000	12000
7015 C	75	115	20	1.1	0.6	82.0	107.0	1.1	0.6	0.64	49500	48500	18000	13500
7015 AC	75	115	20	1.1	0.6	82.0	107.0	1.1	0.6	0.64	47000	46000	15500	11500
7215 C	75	130	25	1.5	0.6	85.0	120.0	1.1	0.6	1.20	72700	80200	16000	9500
7215 AC	75	130	25	1.5	0.6	85.0	120.0	1.1	0.6	1.20	68900	76300	14000	8500
80mm
71916 C	80	110	16	0.6	0.3	86	104	0.6	0.3	0.37	35500	38500	18000	13500
71916 AC	80	110	16	0.6	0.3	86	104	0.6	0.3	0.37	33500	36500	15500	11500
7016 C	80	125	22	1.1	0.6	88	117	1.1	0.6	0.84	60000	58000	16500	12500
7016 AC	80	125	22	1.1	0.6	88	117	1.1	0.6	0.84	57500	56500	14000	10500
7216 C	80	140	26	2.0	1.0	91	129	2.0	1.0	1.43	86500	96500	15000	9000
7216 AC	80	140	26	2.0	1.0	91	129	2.0	1.0	1.43	82100	91900	13000	8000
85mm
71917 C	85	120	18	0.6	0.6	108.8	112.9	0.6	0.6	0.54	40000	43000	16500	12500
71917 AC	85	120	18	0.6	0.6	108.8	112.9	0.6	0.6	0.54	37500	40500	14000	10500
7017 C	85	130	22	1.1	0.6	115.7	121.1	1.1	0.6	0.89	61500	61500	16000	12000
7017 AC	85	130	22	1.1	0.6	115.7	121.1	1.1	0.6	0.89	59000	60000	13500	10000
7217 C	85	150	28	2.0	1.0	98	138.0	2.0	1.0	1.80	97400	107500	14000	8500
7217 AC	85	150	28	2.0	1.0	98	138.0	2.0	1.0	1.80	92500	102400	12000	7500
90mm
71918 C	90	125	18	0.6	0.6	113.8	117.9	0.6	0.6	0.56	40500	45000	16000	12000
71918 AC	90	125	18	0.6	0.6	113.8	117.9	0.6	0.6	0.56	38500	42500	13500	10000
7018 C	90	140	24	1.5	0.6	124.2	130.1	1.5	0.6	1.15	74500	74000	15000	11000
7018 AC	90	140	24	1.5	0.6	124.2	130.1	1.5	0.6	1.15	70500	70000	12500	9400
7218 C	920	160	30	2.0	1.0	104	147.0	2.0	1.0	2.19	121900	131300	13000	8000
7218 AC	920	160	30	2.0	1.0	104	147.0	2.0	1.0	2.19	115800	124600	11000	7000
95mm
71919 C	95	130	18	0.6	0.6	118.8	122.9	1.5	0.6	0.59	41000	47000	15000	11000
71919 AC	95	130	18	0.6	0.6	118.8	122.9	1.5	0.6	0.59	39000	44500	13000	9800
7019 C	95	145	24	1.5	0.6	129.2	135.1	1.5	0.6	1.20	77000	79000	14000	10500
7019 AC	95	145	24	1.5	0.6	129.2	135.1	1.5	0.6	1.20	72000	74500	12000	9000
7219C	95	170	32	2.1	1.1	110.5	154.0	2.1	1.1	2.72	128900	145100	12000	7500
7219 AC	95	170	32	2.1	1.1	110.5	154.0	2.1	1.1	2.72	122500	168300	10000	6700
100mm
71920 C	100	140	20	0.6	0.6	127.2	132.0	0.6	0.6	0.80	51500	57000	14000	10500
71920 AC	100	140	20	0.6	0.6	127.2	132.0	0.6	0.6	0.80	48500	54000	12000	9000
7020 C	100	150	24	1.5	0.6	134.2	140.1	2.0	1.0	1.25	78000	83000	13500	10000
7020 AC	100	150	24	1.5	0.6	134.2	140.1	2.0	1.0	1.25	74000	79000	11500	8600
7220C	100	180	34	2.1	1.1	114.5	165.5	2.1	1.1	3.21	146200	165900	11000	7000
7220 AC	100	180	34	2.1	1.1	114.5	165.5	2.1	1.1	3.21	138900	158200	10000	6700
105mm
71921 C	105	145	20	0.6	0.6	132.2	137.0	0.6	0.6	0.83	52500	60000	13500	10000
71921 AC	105	145	20	0.6	0.6	132.2	137.0	0.6	0.6	0.83	49500	56500	11500	8600
7021 C	105	160	26	2.0	1.0	142.2	148.4	2.0	1.0	1.59	86000	92000	13000	9800
7021 AC	105	160	26	2.0	1.0	142.2	148.4	2.0	1.0	1.59	81000	87000	11000	8200
7221 C	105	190	36	2.1	1.1	120.5	174.5	2.1	1.1	3.88	164300	188200	11000	7000
7221 AC	105	190	36	2.1	1.1	120.5	174.5	2.1	1.1	3.88	156300	179500	9500	6300
110mm
71922 C	110	150	20	0.6	0.6	137.2	142.0	0.6	0.6	0.86	53500	62500	13000	9800
71922 AC	110	150	20	0.6	0.6	137.2	142.0	0.6	0.6	0.86	50000	59000	11000	8200
7022 C	110	170	28	2.0	1.0	150.6	157.5	2.0	1.0	1.98	99000	105000	12000	9000
7022 AC	110	170	28	2.0	1.0	150.6	157.5	2.0	1.0	1.98	94000	100000	10500	7900
7222 C	110	200	38	2.1	1.1	126.5	183.5	2.1	1.1	4.58	170400	202500	10000	67000
7222 AC	110	200	38	2.1	1.1	126.5	183.5	2.1	1.1	4.58	161800	19300	9000	6000
120mm
71924 C	120	165	22	0.6	0.6	150.7	156.0	0.6	0.6	1.18	67500	80000	12000	9000
71924 AC	120	165	22	0.6	0.6	150.7	156.0	0.6	0.6	1.18	64000	76000	10000	7500
7024 C	120	180	28	2.0	1.0	160.6	167.5	2.0	1.0	2.13	10400	116000	11500	8600
7024 AC	120	180	28	2.0	1.0	160.6	167.5	2.0	1.0	2.13	98000	110000	9700	7300
7224 C	120	215	40	2.1	1.1	140	195.0	2.1	1.1	5.29	175400	218400	9000	6000
7224 AC	120	215	40	2.1	1.1	140	195.0	2.1	1.1	5.29	166300	207900	8000	5300

APPLICATIONS:

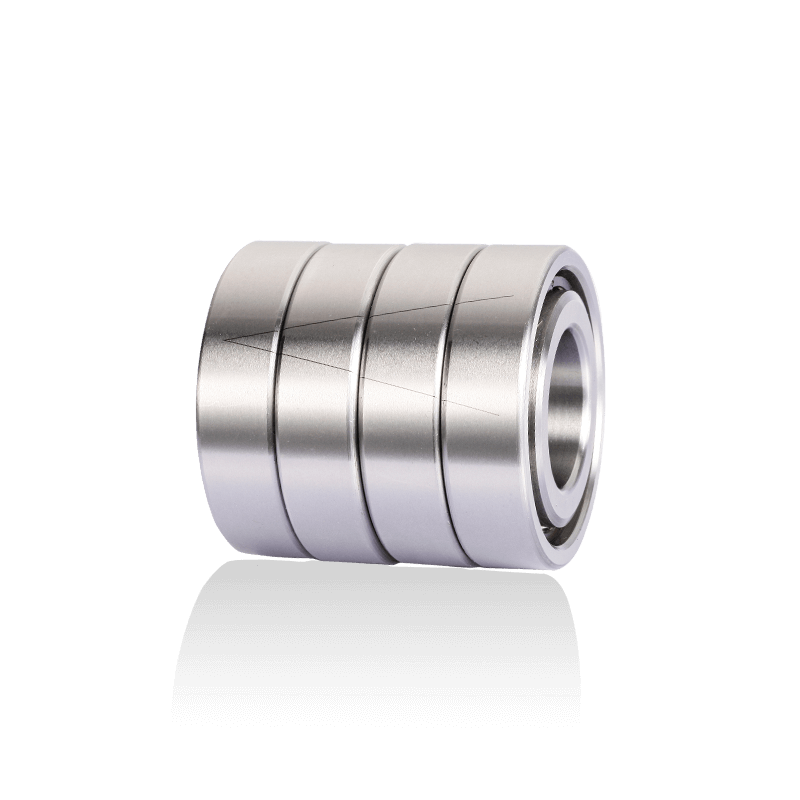

Angular-contact ball bearings are the most common spindle bearing. They are rolling bearings and consist of one or more rows of rolling balls between concentric grooved rings. They are useful for both radial and axial loads in one direction, and their axial load carrying capacity is determined by the angle at which the load contacts the bearing. The greater the angle, the higher the load capacity.

The most common application for spindle bearings is in machine tool spindles from which the term “spindle bearing” is derived. The bearing has to be capable of handling the particularly demanding operating conditions of the spindle and, as such, has to be specially designed for the application. Depending on the size and type of material being machined by the spindle, the bearing has to cope with a variety of machine speeds, offering maintenance-free and reliable performance within the given design envelope

High-precision equipment guarantees the quality and reliability of product manufacturing

Hangzhou Huaxing Kechuang Holding Group Co., Ltd.

Hangzhou Huaxing Kechuang Holding Group Co., Ltd was established in March 1995. Currently, there are Hangzhou Huaxing Bearing Co., Ltd., Hangzhou Yijia Precision Bearing Co., Ltd., Zhejiang Aiken Machinery Co., Ltd., Zhejiang Aijing Machinery Technology Co., Ltd., and Hangzhou Aibesi Bearing Co., Ltd., Huaxing Bearing Technology (Changxing) Co., Ltd. 6 companies and 2 industrial parks. We are professional 7014-CTYN-P4S-UL 70*110*20mm High speed angular contact spindle bearings 7014CTA P4 suppliers and company. The group covers a total area of 66,800 square meters, with a planned total construction area of 130,000 square meters and a built-up area of 70,000 square meters. Three of the six companies have passed the identification of high-tech enterprises in key areas supported by the state, and have two provincial-level high-tech R&D centers. The group's R&D center has more than 80 scientific research personnel including doctors, masters, and industry senior engineers. The R&D team is strong. It has participated in the research and development of national science and technology projects and national defense strong military projects for many times. In 2020, Yijia Precision has entered the Aerospace Science and Technology Group and AVIC Group procurement system.

The company strictly follows the IATF16949, ISO9001 quality management system and ISO14001 environmental management system. Simply you can ODM/OEM 7014-CTYN-P4S-UL 70*110*20mm High speed angular contact spindle bearings 7014CTA P4.

Company Certificate

Passed IS09001: 2000 quality management system and ISO/TSl6949: 2002 quality management system certification.

Factory

Contact us

Address:
East Side of Dongxi Road, Linping Hangzhou, China.
Phone:
86-571-86157772
Fax:
86-571-86157772
Email:
[email protected]

If you need it, please contact us!

We have a strong R&D team, and we can develop and produce products according to the drawings or samples the customers offered.

Language

86-571-86157772
