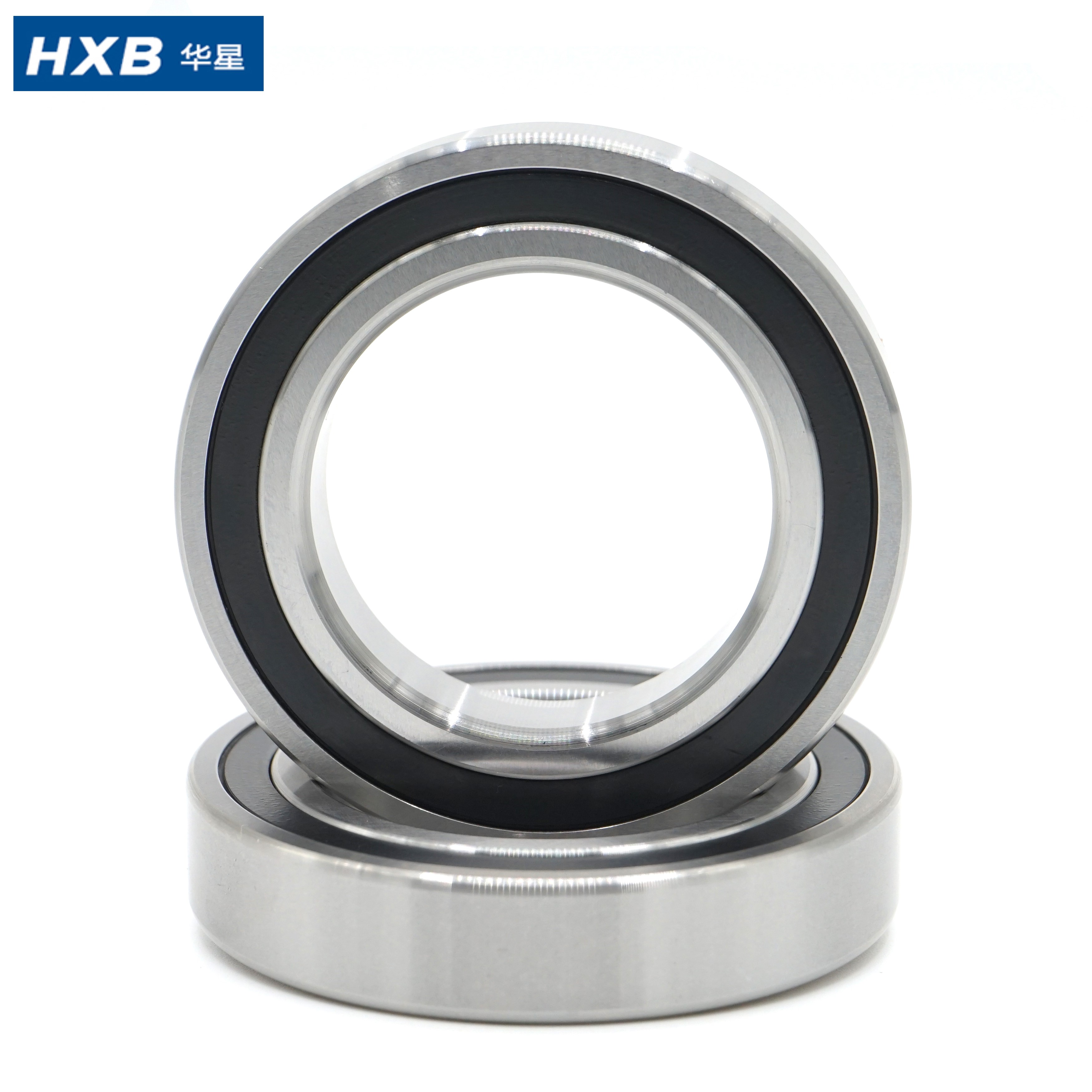

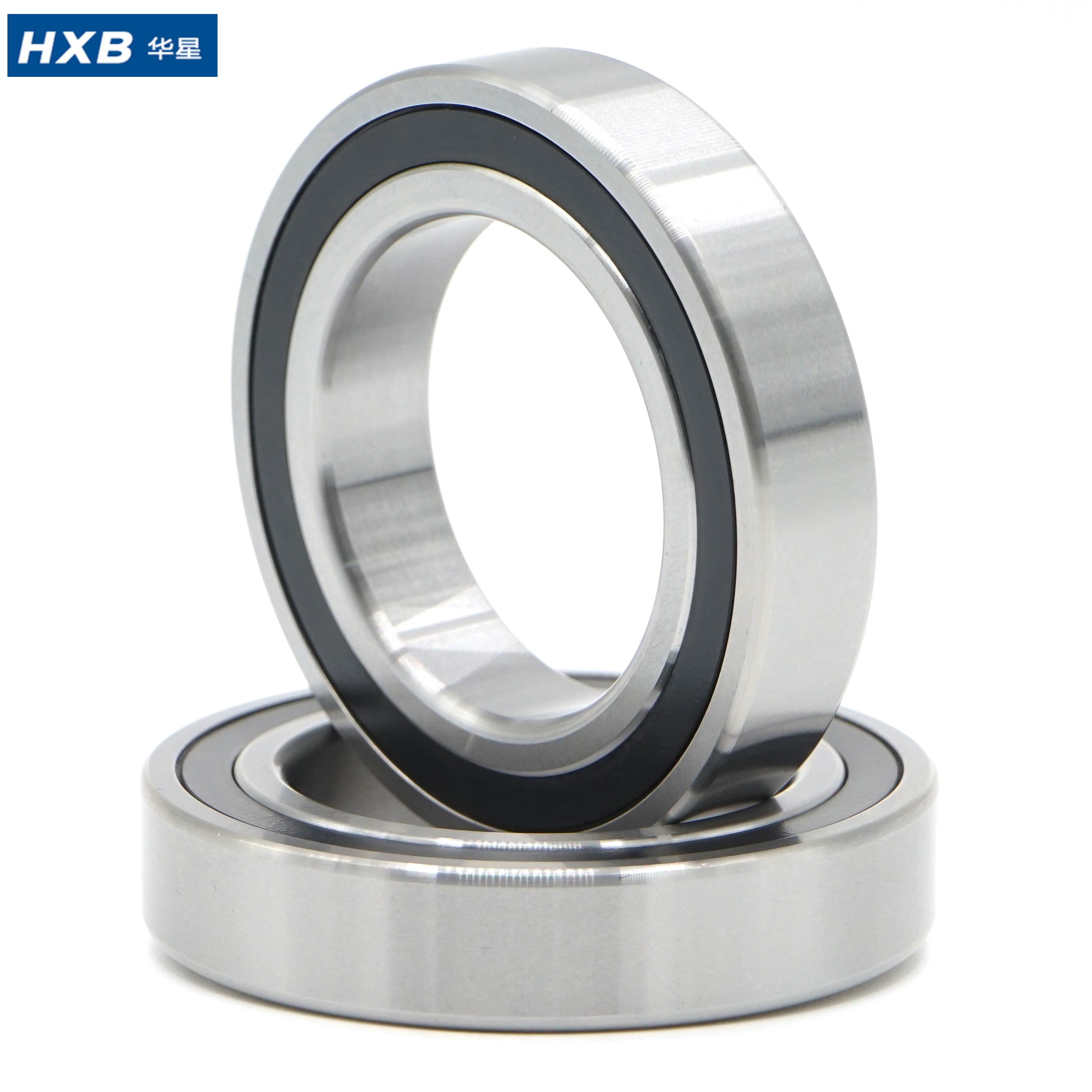

H7009C-2RZHQ1P4 457516mm High Speed super precision Spindle ball bearing OEM Home / Product / Angular contact ball bearing series / Super precision angular contact ball bearings-ceramic ball / H7009C-2RZHQ1P4 457516mm High Speed super precision Spindle ball bearing

H7009C-2RZHQ1P4 457516mm High Speed super precision Spindle ball bearing

Contact now Ask a question

The products produced by Huaxing Group are widely used in various fields. Please feel free to contact us if you have any bearing requirements!

OVERVIEW
TECHNICAL SPECIFICATION
APPLICATION AND OTHERS

Technical Data

Inside Ø (mm):	45
Outside Ø (mm):	75
Width (mm):	16
Tolerance for inside-Ø (mm):	0/-0,006
Tolerance for outside-Ø (mm):	0/-0,007
Tolerance for width (mm):	0/-0,12
Tolerance for shaft da (mm):	0,25/-0,25
Contact Angle:	15°
Rows Of Balls:	single row
Seal:	non-contacted rubber seals
Ring Material:	GCr15, 100Cr6, SUJ2
Rolling Element Material:	Ceramics

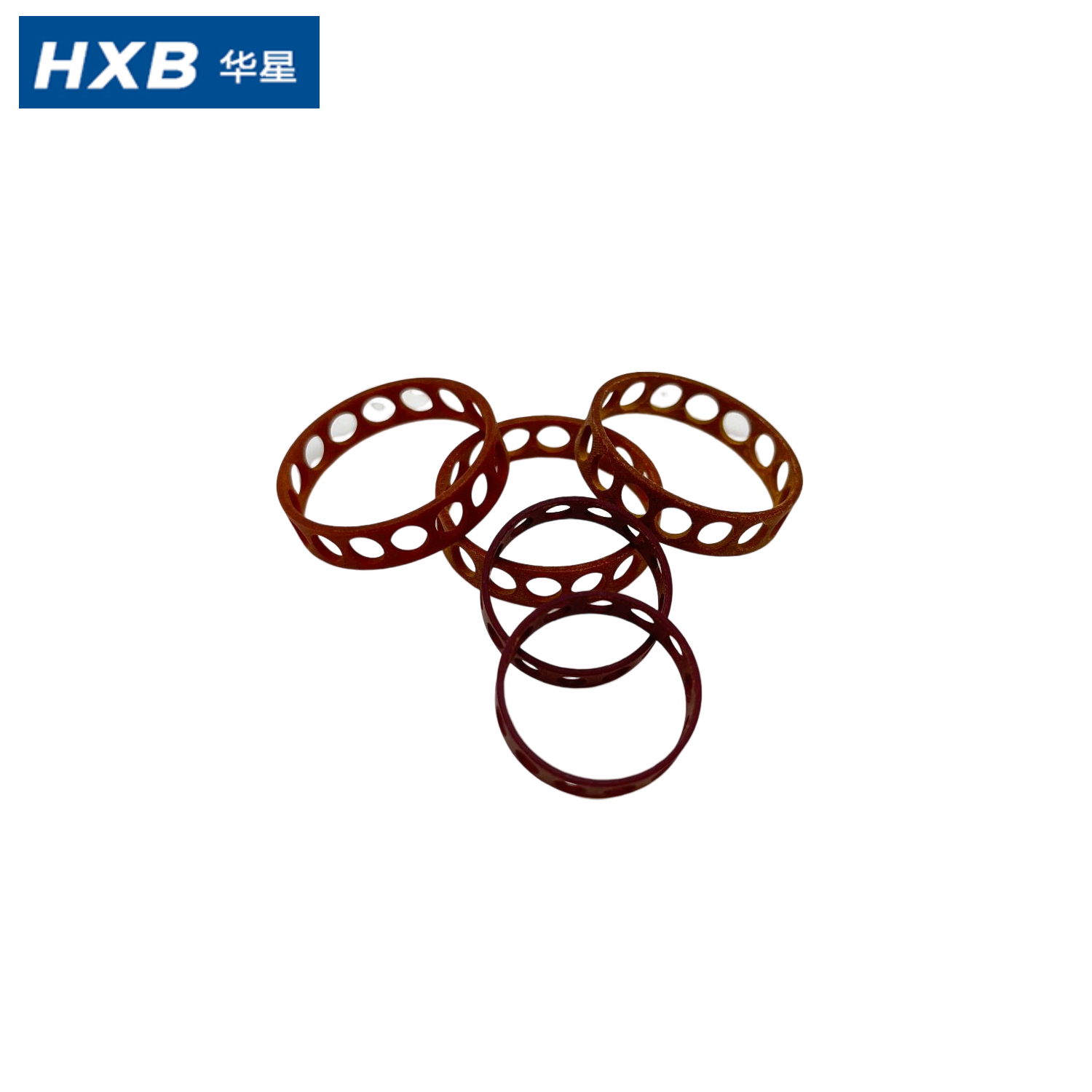

Cage Material:	Phenolic Resin
Tolerance Class:	P4S
Lubrication:	greased with Lubcon L252
Type of lubrication:	grease
Product weight:	0,23 kg

Features

· it is suitable for high radial and axial loads in one direction

· it has also an axial load carrying capacity on both sides in the X- or O-arrangement in pairs

· accuracy grade: P4S (main dimensions at least according to ISO-tolerance class 4)

· all running tolerances are classified according to ISO-tolerance class 2

· it is designed for a high running accuracy and high speeds with maximum rigidity and operational safety

· seal: open design (without seal)

· Exchange: B7009C-2RSD-T-P4S(FAG), 7008CTRV1VSULP4 (NSK), HY6009CTAULP4(GMN)

Application: machine tools,High-speed machining centres (horizontal and vertical),High-speed milling machines, High-speed internal grinding, machines, High-speed spindles for PCB drilling , Turbo-molecular pumps , Woodworking machines.

Size Chart Unit: mm	Mass	Boundary Dimensions(mm)					Angel	Assemble Dimensions(mm)
Bearing Numbers	m kg	d	D	B	r	r₁	a	d_a	D_a	r_a	r_a1	E_tk
H7201-C-T-P-4	0.04	12	32	10	0.6	0.6	15	16.5	27.5	0.6	0.6	21.1
H7201-AC-T-P4	0.04	12	32	10	0.6	0.6	25	16.5	27.5	0.6	0.6	21.1
H7201-C-T-HQ1-P4	0.03	12	32	10	0.6	0.6	15	16.5	27.5	0.6	0.6	21.1
H7201-AC-T-HQ1-P4	0.03	12	32	10	0.6	0.6	25	16.5	27.5	0.6	0.6	21.1
H71902-C-T-P4	0.02	15	28	7	0.3	0.3	15	18	25.5	0.3	0.3	20.9
H71902-AC-T-P4	0.02	15	28	7	0.3	0.3	25	18	25.5	0.3	0.3	20.9
H71902-C-T-HQ1-P4	0.01	15	28	7	0.3	0.3	1S	18	25.5	0.3	0.3	20.9
H71902-AC-T-HQ1-P4	0.01	15	28	7	0.3	0.3	25	18	25.5	0.3	0.3	20.9
H71902-C-T-X-P4	0.02	15	28	7	0.3	-	1S	18	25.5	0.3	0.3	20.3
H71902-AC-T-X-P4	0.02	15	28	7	0.3	-	25	18	25.5	0.3	0.3	20.3
H71902-C-2RZ-T-HQ1-P4	0.02	15	28	7	0.3	-	25	18	25.5	0.3	0.3	20.3
H7002-C-T-P-4	0.03	15	32	9	0.3	0.3	15	19	29	0.3	0.1	22.3
H7002-AC-T-P4	0.03	15	32	9	0.3	0.3	25	19	29	0.3	0.1	22.3
H7002-C-T-HQ1-P4	0.03	15	32	9	0.3	0.3	15	19	29	0.3	0.1	22.3
H7002-AC-T-HQ1-P4	0.03	15	32	9	0.3	0.3	25	19	29	0.3	0.1	22.3
H7002-C-T-X-P4	0.03	15	32	9	0.3	-	15	19	29	0.3	0.1	22.2
H7002-AC-T-X-P4	0.03	15	32	9	0.3	-	25	19	29	0.3	0.1	22.2
H7002-C-2RZ-T-HQ1-P4	0.03	15	32	9	0.3	-	25	19	29	0.3	0.1	22.2
H7202-C-T-P-4	0.04	15	35	11	0.6	0.6	15	19.5	30.5	0.6	0.6	23.3
H7202-AC-T-P4	0.04	15	35	11	0.6	0.6	25	19.5	30.5	0.6	0.6	23.3
H7202-C-T-HQ1-P4	0.04	15	35	11	0.6	0.6	15	19.5	30.5	0.6	0.6	23.3
H7202-AC-T-HQ1-P4	0.04	15	35	11	0.6	0.6	25	19.5	30.5	0.6	0.6	23 3
H71903-C-T-P4	0.02	17	30	7	0.3	0.3	15	20	30.5	0.3	0.3	22.2
H71903-AC-T-P4	0.02	17	30	7	0.3	0.3	25	20	27.5	0.3	0.3	22.2
H71903-C-T-HQ1-P4	0.01	17	30	7	0.3	0.3	15	20	27.5	0.3	0.3	22.2
H71903-AC-T-HQ1-P4	0.01	17	30	7	0.3	0.3	25	20	27.5	0.3	0.3	22.2
H71903-C-T-X-P4	0.02	17	30	7	0.3	-	15	20	27.5	0.3	0.3	22.3
H71903-AC-T-X-P4	0.02	17	30	7	0.3	-	25	20	27.5	0.3	0.3	22.3
H71903-AC-T-X-P4	0.02	17	30	7	0.3	-	25	20	27.5	0.3	0.3	22.3
H7003-C-T-P4	0.04	17	35	10	0.3	0.3	15	21	32	0.3	0.1	24.1

H7003-C-T-HQ1-P4	0.03	17	35	10	0.3	0.3	15	21	32	0.3	0.1	24.1
H7003-AC-T-HQ1-P4	0.03	17	35	10	0.3	0.3	25	21	32	0.3	0.1	24.1
H7003-C-T-X-P4	0.04	17	35	10	0.3	-	15	21	32	0.3	0.1	24.7
H7003-AC-T-X-P4	0.04	17	35	10	0.3	-	25	21	32	0.3	0.1	24.7
H7003-C-2RZ-T-HQ1-P4	0.04	17	35	10	0.3	-	25	21	32	0.3	0.1	24.7
H7203-C-T-P4	0.06	17	40	12	0.6	0.6	15	22.5	34.5	0.6	0.6	26.7
H7203-AC-T-P4	0.06	17	40	12	0.6	0.6	25	22.5	34.5	0.6	0.6	26.7
H7203-C-T-HQ1-P4	0.06	17	40	12	0.6	0.6	15	22.5	34.5	0.6	0.6	26.7
H7203-AC-T-HQ1-P4	0.06	17	40	12	0.6	0.6	25	22.5	34.5	0.6	0.6	26.7
H71904-C-T-P4	0.03	20	37	9	0.3	0.3	15	24	33.5	0.3	0.3	26.8
H71904-AC-T-P4	0.03	20	37	9	0.3	0.3	25	24	33.5	0.3	0.3	26.8
H71904-C-T-HQ1-P4	0.03	20	37	9	0.3	0.3	15	24	33.5	0.3	0.3	26.8
H71904-AC-T-HQ1-P4	0.03	20	37	9	0.3	0.3	25	24	33.5	0.3	0.3	26.8
H71904-C-T-X-P4	0.04	20	37	9	0.3	-	15	24	33.5	0.3	03	27.2
H71904-AC-T-X-P4	0.04	20	37	9	0.3	-	25	24	33.5	0.3	0.3	27.2
H71904-C-2RZ-T-HQ1-P4	0.04	20	37	9	0.3	-	25	24	33.5	0.3	0.3	27.2
H7004-C-T-P4	0.07	20	42	12	0.6	0.6	15	25	37	0.6	0.3	28.8
H7004 AC-T-P4	0.07	20	42	12	0.6	0.6	25	25	37	0.6	0.3	28.8
H7004-C-T-HQ1P4	0.07	20	42	12	0.6	0.6	15	25	37	0.6	0.3	28.8
H7004-AC-T-HQ1-P4	0.07	20	42	12	0.6	0.6	25	25	37	0.6	0.3	28.8
H7004-C-T-X-P4	0.08	20	42	12	0.6	1	15	25	37	0.6	0.3	29.3
H7004-AC-T-X-P4	0.08	20	42	12	0.6	1	25	25	37	0.6	0.3	29.3
H7004-C-2RZ-T-HQ1-P4	0.08	20	42	12	0.6	1	25	25	37	0.6	0.3	29.3
H7204-C-T-P4	0.1	20	47	14	1	1	15	26.5	40.5	1	1	31.7
H7204-AC-T-P4	0.1	20	47	14	1	1	25	26.5	40.5	1	1	31.7
H7204-C-T-HQ1-P4	0.09	20	47	14	1	1	15	26.5	40.5	1	1	31.7
H7204-AC-T-HQ1-P4	0.09	20	47	14	1	1	25	26.5	40.5	1	1	31.7
H71905-C-T-P4	0.04	25	42	9	0.3	0.3	15	29	38.5	0.3	0.3	31.8
H71905-AC-T-P4	0.04	25	42	9	0.3	0.3	25	29	38.5	0.3	0.3	31.8

H71905-C-T-HQ1-P4	0.04	25	42	9	0.3	0.3	15	29	38.5	0.3	0.3	31.8
H71905-AC-T-HQ1-P4	0.04	25	42	9	0.3	0.3	25	29	38.5	0.3	0.3	31.8
H71905-C-T-X-P4	0.05	25	42	9	0.3	-	15	29	38.5	0.3	0.3	32.2
H7190S-AC-T-X-P4	0.05	25	42	9	0.3	-	25	29	38.5	0.3	0.3	32.2
H71905-C-2RZ-T-HQ1-P4	0.05	25	42	9	0.3	-	25	29	38.5	0.3	03	32.2
H7005-C-T-P4	0.08	25	47	12	0.6	0.6	15	30	42	0.6	0.3	33.5
H7005-AC-T-P4	0.08	25	47	12	0.6	0.6	25	30	42	0.6	0.3	33.5
H7005-C-T-HQ1-P4	0.08	25	47	12	0.6	0.6	15	30	42	0.6	0.3	33.5
H7005-AC-T-HQ1-P4	0.08	25	47	12	0.6	0.6	25	30	42	0.6	0.3	33.5
H7005-C-T-X-P4	0.09	25	47	12	0.6	-	15	30	42	0.6	0.3	34.3
H7005-AC-T-X-P4	0.09	25	47	12	0.6	-	25	30	42	0.6	0.3	34.3
H7005-C-2RZ-T-HQ1-P4	0.09	25	47	12	0.6	-	25	30	42	0.6	0.3	34.3
H7205-C-T-P4	0.12	25	52	15	1	1	15	31.5	45.5	1	1	36.5
H7205-AC-T-P4	0.12	25	52	15	1	1	25	31.5	45.5	1	1	36.5
H7205-C-T-HQ1-P4	0.12	25	52	15	1	1	15	31.5	45.5	1	1	36.5
H7205-AC-T-HQ1-P4	0.12	25	52	15	1	1	25	31.5	45.5	1	1	36.5
H71906-C-T-P4	0.05	30	47	9	0.3	0.3	15	34	43.5	0.3	0.3	36.8
H71906-AC-TP4	0.05	30	47	9	0.3	0.3	25	34	43.5	0.3	0.3	36.8
H71906-C-T-HQ1-P4	0.04	30	47	9	0.3	0.3	15	34	43.5	0.3	0.3	36.8
H71906-AC-T-HQ1-P4	0.04	30	47	9	0.3	0.3	25	34	43.5	0.3	0.3	36.8
H71906-C-T-X-P4	0.05	30	47	9	0.3	-	15	34	43.5	0.3	0.3	36.8
H71906-AC-T-X-P4	0.05	30	47	9	0.3	-	25	34	43.5	0.3	0.3	36.8
H71906-C-2RZ-T-HQ1-P4	0.05	30	47	9	0.3	-	25	34	43.5	0.3	0.3	36.8
H7006-C-T-P4	0.11	30	55	13	1	1	15	36	49	1	0.3	40.4
H7006-AC-T-P4	0.11	30	55	13	1	1	2S	36	49	1	03	40.4
H7006-C-T-HQ1-P4	0.1	30	55	13	1	1	15	36	49	1	0.3	40.4
H7006-AC-T-HQ1-P4	0.1	30	55	13	1	1	25	36	49	1	0.3	40.4
H7006-C-T-X-P4	0.13	30	55	13	1	-	15	36	49	1	0.3	40.5
H7006-AC-T-X-P4	0.13	30	55	13	1	-	25	36	49	1	0.3	40.5
H7006-C-2RZ-T-HQ1-P4	0.12	30	55	13	1	-	25	36	49	1	0.3	40.5

H7206-C-T-P4	0.19	30	62	16	1	1	15	37.5	54.5	1	1	43.7
H7206-AC-T-P4	0.19	30	62	16	1	1	25	37.5	54.5	1	1	43.7
H7206-C-T-HQ1-P4	0.17	30	62	16	1	1	15	37.5	54.5	1	1	43.7
H7206-AC-T-HQ1-P4	0.17	30	62	16	1	1	25	37.5	54.5	1	1	43.7
H71907-C-T-P4	0.07	35	55	10	0.6	0.6	15	40	51.5	0.6	0.6	44
H71907-AC-T-P4	0.07	35	55	10	0.6	0.6	25	40	51.5	0.6	0.6	44
H71907-C-T-HQ1-P4	0.06	35	55	10	0.6	0.6	15	40	51.5	0.6	0.6	44
H71907-AC-T-HQ1-P4	0.06	35	55	10	0.6	0.6	25	40	51.5	0.6	0.6	44
H71907-C-T-X-P4	0.08	35	55	10	0.6	-	15	40	51.5	0.6	0.6	43.3
H71907-AC-T-X-P4	0.08	35	55	10	0.6	-	25	40	51.5	0.6	0.6	43.3
H71907 C-2RZ-T-HQ1-P4	0.08	35	55	10	0.6	-	25	40	51.5	0.6	0.6	43.3
H7007-C-T-P4	0.15	35	62	14	1	1	15	41	56	1	0.3	45.6
H7007-AC-T-P4	0.15	35	62	14	1	1	25	41	S6	1	0.3	45.6
H7007-C-T-HQ1-P4	0.13	35	62	14	1	1	15	41	56	1	0.3	45.6
H7007-AC-T-HQ1-P4	0.13	35	62	14	1	1	25	41	56	1	03	45.6
H7007-C-T-X-P4	0.17	35	62	14	1	-	15	41	56	1	0.3	46.5
H7007-AC-T-X-P4	0.17	35	62	14	1	-	25	41	56	1	0.3	46.5
H7007-C-2RZ-T-HQ1-P4	0.17	35	62	14	1	-	25	41	56	1	0.3	46.5
H7207-C-T-P4	0.28	35	72	17	1.1	1.1	15	44	63	1	1	50.7
H7207-AC-T-P4	0.28	35	72	17	1.1	1.1	25	44	63	1	1	50.7
H7207-C-T-HQ1-P4	0.24	35	72	17	1.1	1.1	15	44	63	1	1	50.7
H7207-AC-T-HQ1-P4	0.24	35	72	17	1.1	1.1	25	44	63	1	1	50.7
H71908-C-T-P4	0.11	40	62	12	0.6	0.6	15	45	58.5	0.6	0.6	49.1
H71908-AC-T-P4	0.11	40	62	12	0.6	0.6	25	45	58.5	0.6	0.6	49.1
H71908-C-T-HQ1-P4	0.09	40	62	12	0.6	0.6	15	45	58.S	0.6	0.6	49.1
H71908-AC-T-HQ1-P4	0.09	40	62	12	0.6	0.6	25	45	58.5	0.6	0.6	49.1
H71908-C-T-X-P4	0.13	40	62	12	0.6	-	15	45	58.5	0.6	0.6	49.3
H71908-AC-T-XP4	0.13	40	62	12	0.6	-	25	45	58.5	0.6	0.6	49.3
H71908-C-2RZ-T-HQ1P4	0.12	40	62	12	0.6	-	25	45	58.5	0.6	0.6	49.3
H7008-C-T-P4	0.19	40	68	15	1	1	15	46	62	1	0.3	50.8

H7008-AC-T-P4	0.19	40	68	15	1	1	25	46	62	1	0.3	50.8
H7008-C-T-HQ1-P4	0.17	40	68	15	1	1	15	46	62	1	0.3	50.8
H7008-AC-T-HQ1-P4	0.17	40	68	15	1	1	25	46	62	1	0.3	50.8
H7008-C-T-X-P4	0.22	40	68	IS	1	-	15	46	62	1	0.3	52
H7008-AC-T-X-P4	0.22	40	68	15	1	-	25	46	62	1	03	52
H7008-C-2RZ-T-HQ1-P4	0.2	40	68	15	1	-	25	46	62	1	0.3	52
H7208-C-T-P4	0.37	40	80	18	1.1	1.1	15	48	72	1	1	56.7
H7208-AC-T-P4	0.37	40	80	18	1.1	1.1	25	48	72	1	1	56.7
H7208-C-T-HQ1-P4	0.33	40	80	18	1.1	1.1	15	48	72	1	1	56.7
H7208-AC-T-HQ1-P4	0.33	40	80	18	1.1	1.1	25	48	72	1	1	56.7
H71909-C-T-P4	0.13	45	68	12	0.6	0.6	15	50	63.5	0.6	0.6	54.4
H71909-AC-T-P4	0.13	45	68	12	0.6	0.6	25	50	63.5	0.6	0.6	54.4
H71909-C-T-HQ1-P4	0.11	45	68	12	0.6	0.6	15	50	63.5	0.6	0.6	54.4
H71909-AC-T-HQ1-P4	0.11	45	68	12	0.6	0.6	25	50	63.5	0.6	0.6	54.4
H71909-C-T-X-P4	0.14	45	68	12	0.6	-	15	50	63.5	0.6	0.6	54.5
H71909-AC-T-X-P4	0.14	45	68	12	0.6	-	25	50	63.5	0.6	0.6	54.5
H71909-C-2RZ-T-HQ1-P4	0.13	45	68	12	0.6	-	25	50	63.5	0.6	0.6	54.5
H7009-C-T-P4	0.23	45	75	16	1	1	15	51	69	1	0.3	56.2
H7009-AC-T-P4	0.23	45	75	16	1	1	25	51	69	1	0.3	56.2
H7009-C-T-HQ1P4	0.2	45	75	16	1	1	15	51	69	1	0.3	56.2
H7009-AC-T-HQ1-P4	0.2	45	75	16	1	1	25	51	69	1	0.3	56.2
H7009-C-T-X-P4	0.27	45	75	16	1	-	15	51	69	1	0.3	57.7
H7009-AC-T-X-P4	0.27	45	75	16	1	-	25	51	69	1	0.3	57.7
H7009-C-2RZ-T-HQ1-P4	0.26	45	75	16	1	-	25	51	69	1	0.3	57.7
H7209-C-T-P4	0.41	45	85	19	1.1	1.1	15	52.5	78	1	1	61.8
H7209-AC-T-P4	0.41	45	85	19	1.1	1.1	25	52.5	78	1	1	61.8
H7209-C-T-HQ1-P4	0.34	45	85	19	1.1	1.1	15	52.5	78	1	1	61.8
H7209-AC-T-HQ1-P4	0.34	45	85	19	1.1	1.1	25	52.5	78	1	1	61.8
H71910-C-T-P4	0.13	50	72	12	0.6	0.6	15	55	67.5	0.6	0.6	58.9
H71910-AC-T-P4	0.13	50	72	12	0.6	0.6	25	55	67.5	0.6	0.6	58.9

H71910-C-T-HQ1-P4	0.11	50	72	12	0.6	0.6	15	55	67.5	0.6	0.6	58.9
HT1910-AC-T-P4	0.11	50	72	12	0.6	0.6	25	55	67.5	0.6	0.6	58.9
HJ1910-C-T-X-P4	0.15	50	72	12	0.6	0.6	15	55	67.5	0.6	0.6	59
H71910-AC-T-X-P4	0.15	50	72	12	0.6	0.6	25	55	67.5	0.6	0.6	59
H71910-C-2RZ-T-HQl-P4	0.14	50	72	12	0.6	0.6	25	55	67.5	0.6	0.6	59
H7010-C-T-P4	0.25	50	80	16	1	1	15	56	74	1	0.3	61.2
H7010-AC-T-P4	0.25	50	80	16	1	1	25	56	74	1	0.3	61.2
H7010-C-T-HQ1-P4	0.21	50	80	16	1	1	15	56	74	1	0.3	61.2
H7010-AC-T-HQ1-P4	0.21	50	80	16	1	1	25	56	74	1	0.3	61.2
H7010-C-T-X-P4	0.29	50	80	16	1	-	15	56	74	1	0.3	62.7
H7010-AC-T-X-P4	0.29	50	80	16	1	-	25	56	74	1	0.3	62.7
H7010-C-2RZ-T-HQ1-P4	0.27	50	80	16	1	-	25	56	74	1	0.3	62.7
H3210-C-T-P4	0.46	50	90	20	1.1	1.1	15	57	83	1	1	66.2
H7210-AC-T-P4	0.46	50	90	20	1.1	1.1	25	57	83	1	1	66.2
HT210-C-T-HQ1-P4	0.39	50	90	20	1.1	1.1	1S	57	83	1	1	66.2
H7210AC-T-HQ1-P4	0.39	50	90	20	1.1	1.1	25	57	83	1	1	66.2
H71911-C-T-P4	0.18	55	80	13	1	1	15	60	75.5	0.6	0.6	65.1
H71911-AC-T-P4	0.18	55	80	13	1	1	25	60	75.5	0.6	0.6	65.1
H71911-C-T.HQ1-P4	0.15	55	80	13	1	1	15	60	75.5	0.6	0.6	65.1
H71911-AC-THQ1-P4	0.15	55	80	13	1	1	25	60	75.5	0.6	0.6	65.1
HT1911-C-T-X-P4	0.2	55	80	13	1	-	15	60	75.5	0.6	0.6	65.2
HT1911-AC-T-X-P4	0.2	55	80	13	1	-	25	60	75.5	0.6	0.6	65.2
HT1911-C-2RZ-T-HQ1-P4	0.19	55	80	13	1	-	25	60	75.5	0.6	0.6	65.2
H7011-C-T-P4	0.37	55	90	18	1.1	1.1	15	62	83	1	0.6	68.1
H7011-AC-T-P4	0.37	55	90	18	1.1	1.1	25	62	83	1	0.6	68.1
H7011-C-T-HQ1-P4	0.32	55	90	18	1.1	1.1	15	62	83	1	0.6	68.1
H7011-AC-T-HQ1-P4	0.32	55	90	18	1.1	1.1	25	62	83	1	0.6	68.1
H7011-C-T-X-P4	0.43	55	90	18	1.1	-	15	62	83	1	0.6	69.7
H7012-C-T.HQ1-P4	0.34	60	95	18	1.1	1.1	15	67	88	1	0.6	73.1
H7012-AC-THQ1-P4	0.34	60	95	18	1.1	1.1	25	67	88	1	0.6	73.1

70、719、 72 series								hl2	H12	max		Nominal value
H7012-C-T-X-P4	0.46	60	95	18	1.1	-	15	67	88	1	0.6	74.7
H7012-AC-T-X-P4	0.46	60	95	18	1.1	-	25	67	88	1	0.6	74.7
H7012-C-2RZ-T-HQ1-P4	0.43	60	95	18	1.1	-	25	67	88	1	0.6	74.7
H7212-C-T-P4	0.8	60	110	22	1.5	1.5	15	69.5	101.5	1.5	1.5	81.2
H7212-AC-T-P4	0.8	60	110	22	1.5	1.5	25	69.5	101.5	1.5	1.5	81.2
H7212-C-T-HQ1-P4	0.7	60	110	22	1.5	1.5	15	69.5	101.5	1.5	1.5	81.2
H7212-AC-T-P4	0.7	60	110	22	1.5	1.5	25	69.5	101.5	1.5	1.5	81.2
H71913-C-T-P4	0.2	65	90	13	1	1	15	70	85.5	0.6	0.6	75.1
H71913-AC-TP4	0.2	65	90	13	1	1	25	70	85.5	0.6	0.6	75.1
H71913-C-T-HQ1-P4	0.17	65	90	13	1	1	15	70	85.5	0.6	0.6	75.1
H71913-AC-T-HQ1-P4	0.17	65	90	13	1	1	25	70	85.5	0.6	0.6	75.1
H7011-AC-T-X-P4	0.43	55	90	18	1.1	-	25	62	83	1	0.6	69.7
H7011-C-2RZ-T-HQ1-P4	0.4	SS	90	18	1.1	-	25	62	83	1	0.6	69.7
H7211-C-T-P4	0.61	55	100	21	1.5	1.5	15	63	92	1.5	1.5	73.7
H7211-AC-T-P4	0.61	55	100	21	1.5	1.5	25	63	92	1.5	1.5	73.7
H7211-C-T-HQ1-P4	0.51	55	100	21	1.5	1.5	15	63	92	1.5	1.5	73.7
H7211-AC-T-HQ1-P4	0.51	55	100	21	1.5	1.5	25	63	92	1.5	1.5	73.7
H71912-C-TP4	0.19	60	85	13	1	1	15	65	80.5	0.6	0.6	70.1
H71912-AC-T-P4	0.19	60	85	13	1	1	25	65	80.5	0.6	0.6	70.1
H71912-C-T-HQ1-P4	0.16	60	85	13	1	1	15	65	80.5	0.6	0.6	70.1
H71912-AC-T-HQ1-P4	0.16	60	85	13	1	1	25	65	80.5	0.6	0.6	70.1
H71912-C-T-X-P4	0.21	60	85	13	1	-	15	65	80.5	0.6	0.6	70.2
H71912-AC-T-X-P4	0.21	60	85	13	1	-	25	65	80.S	0.6	0.6	70.2
H71912-C-2RZ-T-HQ1-P4	0.19	60	85	13	1	-	25	65	80.5	0.6	0.6	70.2
H7012-C-T-P4	0.4	60	95	18	1.1	1.1	15	67	88	1	0.6	73.1
H7012-AC-T-P4	0.4	60	95	18	1.1	1.1	25	67	88	1	0.6	73.1
H71913-C-T-X-P4	0.23	65	90	13	1	1	15	70	85.5	0.6	0.6	75.2
H71913-AC-T-XP4	0.23	65	90	13	1	1	25	70	85.5	0.6	0.6	75.2
H71913-AC-2RZ-T-HQ1-P4	0.21	65	90	13	1	1	25	70	85.5	0.6	0.6	75.2
H7013-C-T-P4	0.42	65	100	18	1.1	1.1	15	72	93	1	0.6	78.1

70、719、 72 series								hl2	H12	max		Nominal value
H7013-AC-T-P4	0.42	65	100	18	1.1	1.1	25	72	93	1	0.6	78.1
H7013-C-T-HQ1-P4	0.36	65	100	18	1.1	1.1	15	72	93	1	0.6	78.1
H7013-C-T-X-P4	0.36	65	100	18	1.1	1.1	25	72	93	1	0.6	78.1
H7013-AC-T-HQ1-P4	0.48	65	100	18	1.1	-	15	72	93	1	0.6	79.7
H7013-AC-T-X-P4	0.48	65	100	18	1.1	-	25	72	93	1	0.6	79.7
H7013-C-2RZ-T-HQ1-P4	0.45	65	100	18	1.1	-	25	72	93	1	0.6	79.7
H7213-C-T-P4	1.02	65	120	23	1.5	1.5	15	75.5	109.5	1.5	1.5	88.2
H7213-AC-T-P4	1.02	65	120	23	1.5	1.5	25	75.5	109.5	1.5	1.5	88.2
H7213-C-T-HQ1-P4	0.88	65	120	23	1.5	1.5	15	75.5	109.5	1.5	1.5	88.2
H7213-AC-THQ1-P4	0.88	65	120	23	1.5	1.5	25	75.5	109.5	1.5	1.5	88.2
H71914-C-T-P4	0.33	70	100	16	1	1	15	76	94.5	0.6	0.6	82.2
H71914-AC-T-P4	0.33	70	100	16	1	1	25	76	94.5	0.6	0.6	82.2
H71914-C-T-HQ1-P4	0.28	70	100	16	1	1	15	76	94.5	0.6	0.6	82.2
H71914-AC-T-HQ1-P4	0.28	70	100	16	1	1	25	76	94.5	0.6	0.6	82.2
H71914-C-T-X-P4	0.37	70	100	16	1	-	15	76	94.5	0.6	0.6	82.3
H71914-AC-T-X-P4	0.37	70	100	16	1	-	25	76	94.5	0.6	0.6	82.3
H71914-AC-2RZ-T-HQ1-P4	0.35	70	100	16	1	-	25	76	94.5	0.6	0.6	82.3
H7014-C-T-P4	0.59	70	110	20	1.1	1.1	15	77	102	1	0.6	85
H7014-AC-T-P4	0.59	70	110	20	1.1	1.1	25	77	102	1	0.6	85
H7014-C-T-HQ1P4	0.5	70	110	20	1.1	1.1	15	77	102	1	0.6	85
H7014-AC-T-HQ1-P4	0.5	70	110	20	1.1	1.1	25	77	102	1	0.6	85
H7014-C-T-X-P4	0.67	70	110	20	1.1	-	15	77	102	1	0.6	86.7
H7014-AC-T-X-P4	0.67	70	110	20	1.1	-	25	77	102	1	0.6	86.7
H7014-C-2RZ-T-HQ1-P4	0.63	70	110	20	1.1	-	25	77	102	1	0.6	86.7
H7214-C-T-P4	1.12	70	125	24	1.5	1.5	15	80	115	1.5	1.5	92.7
H7214-AC-T-P4	1.12	70	125	24	1.5	1.5	25	80	115	1.5	1.5	92.7
H7214-C-T-HQ1-P4	0.96	70	125	24	1.5	1.5	15	80	115	1.5	1.5	92.7
H7214-AC-T-HQ1-P4	0.96	70	125	24	1.5	1.5	25	80	115	1.5	1.5	92.7
H71915-C-T-P4	0.35	75	105	16	1	1	15	81	99.5	0.6	0.6	87.2
H71915-AC-T-P4	0.35	75	105	16	1	1	25	81	99.5	0.6	0.6	87.2

H71915-C-T-HQ1-P4	0.3	75	105	16	1	1	15	81	99.5	0.6	0.6	87.2
H71915-AC-T-HQ1-P4	0.3	75	105	16	1	1	25	81	99.5	0.6	0.6	87.2
H71915-C-T-X-P4	0.4	75	10S	16	1	-	15	81	99.5	0.6	0.6	87.3
H71915-AC-T-X-P4	0.4	75	105	16	1	-	25	81	99.5	0.6	0.6	87.3
H71915-AC-2RZ-T-HQ1-P4	0.37	75	105	16	1	-	25	81	99.5	0.6	0.6	87.3
H7015-C-T-P4	0.62	75	115	20	1.1	1.1	15	82	107	1	0.6	90
H7015-AC-T-P4	0.62	75	115	20	1.1	1.1	25	82	107	1	0.6	90
H7015-C-T-HQ1-P4	0.53	75	115	20	1.1	1.1	15	82	107	1	0.6	90
H7015-AC-T-HQ1-P4	0.53	75	115	20	1.1	1.1	25	82	107	1	0.6	90
H7015-C-T-X-P4	0.71	75	115	20	1.1	-	15	82	107	1	0.6	91.7
H7015-AC-T-X-P4	0.71	75	115	20	1.1	-	25	82	107	1	0.6	91.7
H7015-C-2RZ-T-HQ1-P4	0.66	75	115	20	1.1	-	25	82	107	1	0.6	91.7
H7215-C-T-P4	1.21	75	130	25	1.5	1.5	15	85	120	1.5	1.5	97.7
H7215-AC-T-P4	1.21	75	130	25	1.5	1.5	25	85	120	1.5	1.5	97.7
H7215-C-T-HQ1-P4	1.05	75	130	25	1.5	1.5	15	85	120	1.5	1.5	97.7
H7215-AC-T-HQ1-P4	1.05	75	130	25	1.5	1.5	25	85	120	1.5	1.5	97.7
H71916-C-TP4	0.37	80	110	16	1	1	15	86	104	0.6	0.6	92.2
H71916-AC-TP4	0.37	80	110	16	1	1	25	86	104	0.6	0.6	92.2
H71916-C-T-HQ1-P4	0.31	80	110	16	1	1	15	86	104	0.6	0.6	92.2
H71916-AC-T-HQ1-P4	0.31	80	110	16	1	1	25	86	104	0.6	0.6	92.2
H71916-C-T-X-P4	0.41	80	110	16	1	-	15	86	104	0.6	0.6	92.2
H71916-AC-T-X-P4	0.41	80	110	16	1	-	25	86	104	0.6	0.6	92.2
H71916-AC-2RZ-T-HQ1-P4	0.38	80	110	16	1	-	25	86	104	0.6	0.6	92.2
H7016-C-T-P4	0.84	80	125	22	1.1	1.1	15	88	117	1	0.6	96.8
H7016-AC-T-P4	0.84	80	125	22	1.1	1.1	25	88	117	1	0.6	96.8
H7016-C-T-HQ1-P4	0.71	80	125	22	1.1	1.1	15	88	117	1	0.6	96.8
H7016-AC-T-HQ1-P4	0.71	80	125	22	1.1	1.1	25	88	117	1	0.6	96.8
H7016-C-T-X-P4	0.96	80	125	22	1.1	-	15	88	117	1	0.6	98.9

70、719、72 series								hl2	H12	max	ral	Nominal value
H7216-C-T-P4	1.52	80	140	26	2	2	15	94	126	2	2
H7216-AC-T-P4	1.52	80	140	26	2	2	25	94	126	2	2	105.2
H7216-C-T-HQ1-P4	1.4	80	140	26	2	2	15	94	126	2	2	105.2
H7216-AC-T-HQ1-P4	1.4	80	140	26	2	2	25	94	126	2	2	105.2
H71917-C-T-P4	0.53	85	120	18	1.1	1.1	15	92	114	0.6	0.6	99.2
H71917-AC-T-P4	0.53	85	120	18	1.1	1.1	25	92	114	0.6	0.6	99.2
H71917-C-T-HQ1-P4	0.45	85	120	18	1.1	1.1	15	92	114	0.6	0.6	99.2
H71917-AC-T-HQ1-P4	0.45	85	120	18	1.1	1.1	25	92	114	0.6	0.6	99.2
H71917-C-T-X-P4	0.61	85	120	18	1.1	-	15	92	114	0.6	0.6	99.7
H71917-AC-T-X-P4	0.61	85	120	18	1.1	-	25	92	114	0.6	0.6	99.7
H71917-AC-2RZ-T-HQ1-P4	0.57	85	120	18	1.1	-	25	92	114	0.6	0.6	99.7
H7017-C-T-P4	0.89	85	130	22	1.1	11	15	93	122	1	0.6	101.8
H7017-AC-T-P4	0.89	85	130	22	1.1	1.1	25	93	122	1	0.6	101.8
H7017-C-T-HQ1-P4	0.74	85	130	22	1.1	1.1	15	93	122	1	0.6	101.8
H7017-AC-T-HQ1-P4	0.74	85	130	22	1.1	1.1	25	93	122	1	0.6	101.8
H7017-C-T-X-P4	0.99	85	130	22	1.1	-	15	93	122	1	0.6	103.9
H7017-AC-T-X-P4	0.99	85	130	22	1.1	-	25	93	122	1	0.6	103.9
H7017-C-2RZ-T-HQ1-P4	0.93	85	130	22	1.1	-	25	93	122	1	0.6	103.9
H7217-C-T-P4	1.85	85	150	23	2	2	15	98	138	2	2	112.3
H7217-AC-T-P4	1.85	85	150	23	2	2	25	98	138	2	2	112.3
H7217-C-T-HQ1-P4	1.58	85	150	28	2	2	15	98	138	2	2	112.3
H7217-AC-T-HQ1-P4	1.58	85	150	28	2	2	25	98	138	2	2	112.3
H71918-C-T-P4	0.55	90	125	18	1.1	1.1	15	97	119	0.6	0.6	104.2
H71918-AC-T-P4	0.55	90	125	18	1.1	1.1	25	97	119	0.6	0.6	104.2
H71918-C-T-HQ1-P4	0.47	90	125	18	1.1	1.1	15	97	119	0.6	0.6	104.2
H71918-AC-T-HQ1-P4	0.47	90	125	18	1.1	1.1	25	97	119	0.6	0.6	104.2
H71918-C-T-X-P4	0.63	90	125	18	1.1	-	15	97	119	0.6	0.6	104.5
H71918-AC-T-X-P4	0.63	90	125	18	1.1	-	25	97	119	0.6	0.6	104.5
H71918-AC-2RZ-T-HQ1-P4	0.58	90	125	18	1.1	-	25	97	119	0.6	0.6	104.5
H7018-C-T-P4	1.15	90	140	24	1.5	1.5	15	100	131	1.5	0.6	108.6

Hybrid spindle bearings have bearing rings made from steel and, in contrast to standard spindle bearings, rolling elements made from ceramic (silicon nitride Si3N4).

Advantages

Hybrid spindle bearings achieve very high speeds, have lower friction and heat generation, a longer operating life, place less strain on the lubricant and are insensitive to lubricant starvation.

Through the use of hybrid bearings, the operating limits of bearings with grease lubrication have been shifted to significantly higher speed ranges.

High-precision equipment guarantees the quality and reliability of product manufacturing

Hangzhou Huaxing Kechuang Holding Group Co., Ltd.

Hangzhou Huaxing Kechuang Holding Group Co., Ltd was established in March 1995. Currently, there are Hangzhou Huaxing Bearing Co., Ltd., Hangzhou Yijia Precision Bearing Co., Ltd., Zhejiang Aiken Machinery Co., Ltd., Zhejiang Aijing Machinery Technology Co., Ltd., and Hangzhou Aibesi Bearing Co., Ltd., Huaxing Bearing Technology (Changxing) Co., Ltd. 6 companies and 2 industrial parks. We are professional H7009C-2RZHQ1P4 45*75*16mm High Speed super precision Spindle ball bearing suppliers and company. The group covers a total area of 66,800 square meters, with a planned total construction area of 130,000 square meters and a built-up area of 70,000 square meters. Three of the six companies have passed the identification of high-tech enterprises in key areas supported by the state, and have two provincial-level high-tech R&D centers. The group's R&D center has more than 80 scientific research personnel including doctors, masters, and industry senior engineers. The R&D team is strong. It has participated in the research and development of national science and technology projects and national defense strong military projects for many times. In 2020, Yijia Precision has entered the Aerospace Science and Technology Group and AVIC Group procurement system.

The company strictly follows the IATF16949, ISO9001 quality management system and ISO14001 environmental management system. Simply you can ODM/OEM H7009C-2RZHQ1P4 45*75*16mm High Speed super precision Spindle ball bearing.
