Bearing No. H7007C-2RZ-SU-P4-Angular contact ball bearing-spindle ball bearing

Technical Data

Inside Ø (mm):	35
Outside Ø (mm):	62
Width (mm):	14
Tolerance for inside-Ø (mm):	0/-0,005
Tolerance for outside-Ø (mm):	0/-0,007
Tolerance for width (mm):	0/-0,12
Tolerance for shaft da (mm):	0,21/-0,21
Contact Angle:	15°
Rows Of Balls:	single row
Seal:	rubber seals
Ring Material:	GCr15, 100Cr6, SUJ2
Rolling Element Material:	steel

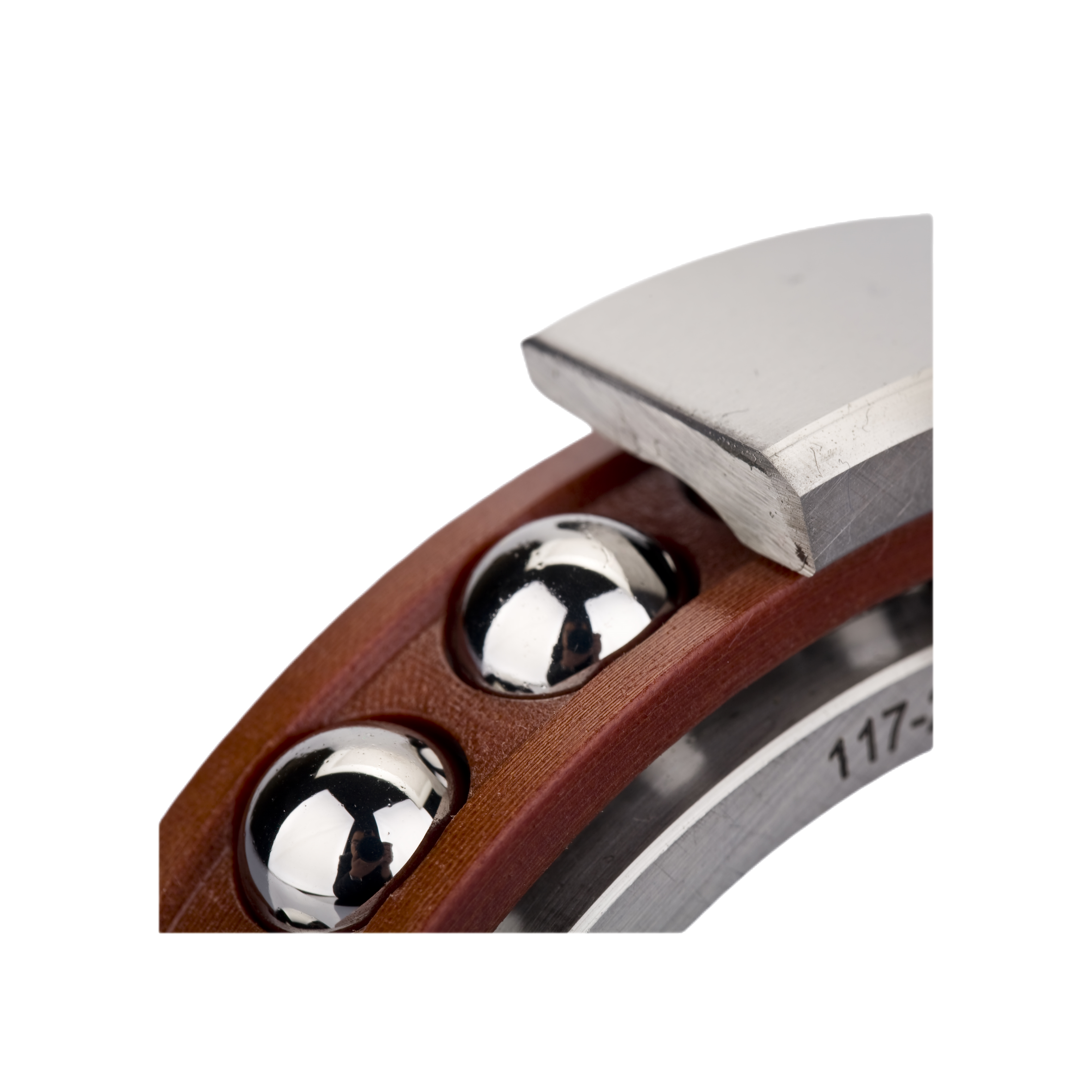

Cage Material:	Phenolic Resin
Tolerance Class:	P4S
Lubrication:	L252
Type of lubrication:	greased
Product weight:	0,15 kg

Features

· it is suitable for high radial and axial loads in one direction

· it has also an axial load carrying capacity on both sides in the X- or O-arrangement in pairs

· accuracy grade: P4S (main dimensions at least according to ISO-tolerance class 4)

· all running tolerances are classified according to ISO-tolerance class 2

· it is designed for a high running accuracy and high speeds with maximum rigidity and operational safety

· seal: open design (without seal)

· Exchange:B7007C-2RSD-P4S(FAG), 7007CTRV1VP4 (NSK), S7007CD/P4A (SKF)

· Application: electric spindle , wood carving machine, engraving machine, CNC router, CNC machine,machine tool spindle bearing

Size Chart Unit: mm	Mass	Boundary Dimensions(mm)					Angel	Assemble Dimensions(mm)
Bearing Numbers	m kg	d	D	B	r	r₁	a	d_a	D_a	r_a	r_a1	E_tk
H7201-C-T-P-4	0.04	12	32	10	0.6	0.6	15	16.5	27.5	0.6	0.6	21.1
H7201-AC-T-P4	0.04	12	32	10	0.6	0.6	25	16.5	27.5	0.6	0.6	21.1
H7201-C-T-HQ1-P4	0.03	12	32	10	0.6	0.6	15	16.5	27.5	0.6	0.6	21.1
H7201-AC-T-HQ1-P4	0.03	12	32	10	0.6	0.6	25	16.5	27.5	0.6	0.6	21.1
H71902-C-T-P4	0.02	15	28	7	0.3	0.3	15	18	25.5	0.3	0.3	20.9
H71902-AC-T-P4	0.02	15	28	7	0.3	0.3	25	18	25.5	0.3	0.3	20.9
H71902-C-T-HQ1-P4	0.01	15	28	7	0.3	0.3	1S	18	25.5	0.3	0.3	20.9
H71902-AC-T-HQ1-P4	0.01	15	28	7	0.3	0.3	25	18	25.5	0.3	0.3	20.9
H71902-C-T-X-P4	0.02	15	28	7	0.3	-	1S	18	25.5	0.3	0.3	20.3
H71902-AC-T-X-P4	0.02	15	28	7	0.3	-	25	18	25.5	0.3	0.3	20.3
H71902-C-2RZ-T-HQ1-P4	0.02	15	28	7	0.3	-	25	18	25.5	0.3	0.3	20.3
H7002-C-T-P-4	0.03	15	32	9	0.3	0.3	15	19	29	0.3	0.1	22.3
H7002-AC-T-P4	0.03	15	32	9	0.3	0.3	25	19	29	0.3	0.1	22.3
H7002-C-T-HQ1-P4	0.03	15	32	9	0.3	0.3	15	19	29	0.3	0.1	22.3
H7002-AC-T-HQ1-P4	0.03	15	32	9	0.3	0.3	25	19	29	0.3	0.1	22.3
H7002-C-T-X-P4	0.03	15	32	9	0.3	-	15	19	29	0.3	0.1	22.2
H7002-AC-T-X-P4	0.03	15	32	9	0.3	-	25	19	29	0.3	0.1	22.2
H7002-C-2RZ-T-HQ1-P4	0.03	15	32	9	0.3	-	25	19	29	0.3	0.1	22.2
H7202-C-T-P-4	0.04	15	35	11	0.6	0.6	15	19.5	30.5	0.6	0.6	23.3
H7202-AC-T-P4	0.04	15	35	11	0.6	0.6	25	19.5	30.5	0.6	0.6	23.3
H7202-C-T-HQ1-P4	0.04	15	35	11	0.6	0.6	15	19.5	30.5	0.6	0.6	23.3
H7202-AC-T-HQ1-P4	0.04	15	35	11	0.6	0.6	25	19.5	30.5	0.6	0.6	23 3
H71903-C-T-P4	0.02	17	30	7	0.3	0.3	15	20	30.5	0.3	0.3	22.2
H71903-AC-T-P4	0.02	17	30	7	0.3	0.3	25	20	27.5	0.3	0.3	22.2
H71903-C-T-HQ1-P4	0.01	17	30	7	0.3	0.3	15	20	27.5	0.3	0.3	22.2
H71903-AC-T-HQ1-P4	0.01	17	30	7	0.3	0.3	25	20	27.5	0.3	0.3	22.2
H71903-C-T-X-P4	0.02	17	30	7	0.3	-	15	20	27.5	0.3	0.3	22.3
H71903-AC-T-X-P4	0.02	17	30	7	0.3	-	25	20	27.5	0.3	0.3	22.3
H71903-AC-T-X-P4	0.02	17	30	7	0.3	-	25	20	27.5	0.3	0.3	22.3
H7003-C-T-P4	0.04	17	35	10	0.3	0.3	15	21	32	0.3	0.1	24.1

H7003-C-T-HQ1-P4	0.03	17	35	10	0.3	0.3	15	21	32	0.3	0.1	24.1
H7003-AC-T-HQ1-P4	0.03	17	35	10	0.3	0.3	25	21	32	0.3	0.1	24.1
H7003-C-T-X-P4	0.04	17	35	10	0.3	-	15	21	32	0.3	0.1	24.7
H7003-AC-T-X-P4	0.04	17	35	10	0.3	-	25	21	32	0.3	0.1	24.7
H7003-C-2RZ-T-HQ1-P4	0.04	17	35	10	0.3	-	25	21	32	0.3	0.1	24.7
H7203-C-T-P4	0.06	17	40	12	0.6	0.6	15	22.5	34.5	0.6	0.6	26.7
H7203-AC-T-P4	0.06	17	40	12	0.6	0.6	25	22.5	34.5	0.6	0.6	26.7
H7203-C-T-HQ1-P4	0.06	17	40	12	0.6	0.6	15	22.5	34.5	0.6	0.6	26.7
H7203-AC-T-HQ1-P4	0.06	17	40	12	0.6	0.6	25	22.5	34.5	0.6	0.6	26.7
H71904-C-T-P4	0.03	20	37	9	0.3	0.3	15	24	33.5	0.3	0.3	26.8
H71904-AC-T-P4	0.03	20	37	9	0.3	0.3	25	24	33.5	0.3	0.3	26.8
H71904-C-T-HQ1-P4	0.03	20	37	9	0.3	0.3	15	24	33.5	0.3	0.3	26.8
H71904-AC-T-HQ1-P4	0.03	20	37	9	0.3	0.3	25	24	33.5	0.3	0.3	26.8
H71904-C-T-X-P4	0.04	20	37	9	0.3	-	15	24	33.5	0.3	03	27.2
H71904-AC-T-X-P4	0.04	20	37	9	0.3	-	25	24	33.5	0.3	0.3	27.2
H71904-C-2RZ-T-HQ1-P4	0.04	20	37	9	0.3	-	25	24	33.5	0.3	0.3	27.2
H7004-C-T-P4	0.07	20	42	12	0.6	0.6	15	25	37	0.6	0.3	28.8
H7004 AC-T-P4	0.07	20	42	12	0.6	0.6	25	25	37	0.6	0.3	28.8
H7004-C-T-HQ1P4	0.07	20	42	12	0.6	0.6	15	25	37	0.6	0.3	28.8
H7004-AC-T-HQ1-P4	0.07	20	42	12	0.6	0.6	25	25	37	0.6	0.3	28.8
H7004-C-T-X-P4	0.08	20	42	12	0.6	1	15	25	37	0.6	0.3	29.3
H7004-AC-T-X-P4	0.08	20	42	12	0.6	1	25	25	37	0.6	0.3	29.3
H7004-C-2RZ-T-HQ1-P4	0.08	20	42	12	0.6	1	25	25	37	0.6	0.3	29.3
H7204-C-T-P4	0.1	20	47	14	1	1	15	26.5	40.5	1	1	31.7
H7204-AC-T-P4	0.1	20	47	14	1	1	25	26.5	40.5	1	1	31.7
H7204-C-T-HQ1-P4	0.09	20	47	14	1	1	15	26.5	40.5	1	1	31.7
H7204-AC-T-HQ1-P4	0.09	20	47	14	1	1	25	26.5	40.5	1	1	31.7
H71905-C-T-P4	0.04	25	42	9	0.3	0.3	15	29	38.5	0.3	0.3	31.8
H71905-AC-T-P4	0.04	25	42	9	0.3	0.3	25	29	38.5	0.3	0.3	31.8

H71905-C-T-HQ1-P4	0.04	25	42	9	0.3	0.3	15	29	38.5	0.3	0.3	31.8
H71905-AC-T-HQ1-P4	0.04	25	42	9	0.3	0.3	25	29	38.5	0.3	0.3	31.8
H71905-C-T-X-P4	0.05	25	42	9	0.3	-	15	29	38.5	0.3	0.3	32.2
H7190S-AC-T-X-P4	0.05	25	42	9	0.3	-	25	29	38.5	0.3	0.3	32.2
H71905-C-2RZ-T-HQ1-P4	0.05	25	42	9	0.3	-	25	29	38.5	0.3	03	32.2
H7005-C-T-P4	0.08	25	47	12	0.6	0.6	15	30	42	0.6	0.3	33.5
H7005-AC-T-P4	0.08	25	47	12	0.6	0.6	25	30	42	0.6	0.3	33.5
H7005-C-T-HQ1-P4	0.08	25	47	12	0.6	0.6	15	30	42	0.6	0.3	33.5
H7005-AC-T-HQ1-P4	0.08	25	47	12	0.6	0.6	25	30	42	0.6	0.3	33.5
H7005-C-T-X-P4	0.09	25	47	12	0.6	-	15	30	42	0.6	0.3	34.3
H7005-AC-T-X-P4	0.09	25	47	12	0.6	-	25	30	42	0.6	0.3	34.3
H7005-C-2RZ-T-HQ1-P4	0.09	25	47	12	0.6	-	25	30	42	0.6	0.3	34.3
H7205-C-T-P4	0.12	25	52	15	1	1	15	31.5	45.5	1	1	36.5
H7205-AC-T-P4	0.12	25	52	15	1	1	25	31.5	45.5	1	1	36.5
H7205-C-T-HQ1-P4	0.12	25	52	15	1	1	15	31.5	45.5	1	1	36.5
H7205-AC-T-HQ1-P4	0.12	25	52	15	1	1	25	31.5	45.5	1	1	36.5
H71906-C-T-P4	0.05	30	47	9	0.3	0.3	15	34	43.5	0.3	0.3	36.8
H71906-AC-TP4	0.05	30	47	9	0.3	0.3	25	34	43.5	0.3	0.3	36.8
H71906-C-T-HQ1-P4	0.04	30	47	9	0.3	0.3	15	34	43.5	0.3	0.3	36.8
H71906-AC-T-HQ1-P4	0.04	30	47	9	0.3	0.3	25	34	43.5	0.3	0.3	36.8
H71906-C-T-X-P4	0.05	30	47	9	0.3	-	15	34	43.5	0.3	0.3	36.8
H71906-AC-T-X-P4	0.05	30	47	9	0.3	-	25	34	43.5	0.3	0.3	36.8
H71906-C-2RZ-T-HQ1-P4	0.05	30	47	9	0.3	-	25	34	43.5	0.3	0.3	36.8
H7006-C-T-P4	0.11	30	55	13	1	1	15	36	49	1	0.3	40.4
H7006-AC-T-P4	0.11	30	55	13	1	1	2S	36	49	1	03	40.4
H7006-C-T-HQ1-P4	0.1	30	55	13	1	1	15	36	49	1	0.3	40.4
H7006-AC-T-HQ1-P4	0.1	30	55	13	1	1	25	36	49	1	0.3	40.4
H7006-C-T-X-P4	0.13	30	55	13	1	-	15	36	49	1	0.3	40.5
H7006-AC-T-X-P4	0.13	30	55	13	1	-	25	36	49	1	0.3	40.5
H7006-C-2RZ-T-HQ1-P4	0.12	30	55	13	1	-	25	36	49	1	0.3	40.5

H7206-C-T-P4	0.19	30	62	16	1	1	15	37.5	54.5	1	1	43.7
H7206-AC-T-P4	0.19	30	62	16	1	1	25	37.5	54.5	1	1	43.7
H7206-C-T-HQ1-P4	0.17	30	62	16	1	1	15	37.5	54.5	1	1	43.7
H7206-AC-T-HQ1-P4	0.17	30	62	16	1	1	25	37.5	54.5	1	1	43.7
H71907-C-T-P4	0.07	35	55	10	0.6	0.6	15	40	51.5	0.6	0.6	44
H71907-AC-T-P4	0.07	35	55	10	0.6	0.6	25	40	51.5	0.6	0.6	44
H71907-C-T-HQ1-P4	0.06	35	55	10	0.6	0.6	15	40	51.5	0.6	0.6	44
H71907-AC-T-HQ1-P4	0.06	35	55	10	0.6	0.6	25	40	51.5	0.6	0.6	44
H71907-C-T-X-P4	0.08	35	55	10	0.6	-	15	40	51.5	0.6	0.6	43.3
H71907-AC-T-X-P4	0.08	35	55	10	0.6	-	25	40	51.5	0.6	0.6	43.3
H71907 C-2RZ-T-HQ1-P4	0.08	35	55	10	0.6	-	25	40	51.5	0.6	0.6	43.3
H7007-C-T-P4	0.15	35	62	14	1	1	15	41	56	1	0.3	45.6
H7007-AC-T-P4	0.15	35	62	14	1	1	25	41	S6	1	0.3	45.6
H7007-C-T-HQ1-P4	0.13	35	62	14	1	1	15	41	56	1	0.3	45.6
H7007-AC-T-HQ1-P4	0.13	35	62	14	1	1	25	41	56	1	03	45.6
H7007-C-T-X-P4	0.17	35	62	14	1	-	15	41	56	1	0.3	46.5
H7007-AC-T-X-P4	0.17	35	62	14	1	-	25	41	56	1	0.3	46.5
H7007-C-2RZ-T-HQ1-P4	0.17	35	62	14	1	-	25	41	56	1	0.3	46.5
H7207-C-T-P4	0.28	35	72	17	1.1	1.1	15	44	63	1	1	50.7
H7207-AC-T-P4	0.28	35	72	17	1.1	1.1	25	44	63	1	1	50.7
H7207-C-T-HQ1-P4	0.24	35	72	17	1.1	1.1	15	44	63	1	1	50.7
H7207-AC-T-HQ1-P4	0.24	35	72	17	1.1	1.1	25	44	63	1	1	50.7
H71908-C-T-P4	0.11	40	62	12	0.6	0.6	15	45	58.5	0.6	0.6	49.1
H71908-AC-T-P4	0.11	40	62	12	0.6	0.6	25	45	58.5	0.6	0.6	49.1
H71908-C-T-HQ1-P4	0.09	40	62	12	0.6	0.6	15	45	58.S	0.6	0.6	49.1
H71908-AC-T-HQ1-P4	0.09	40	62	12	0.6	0.6	25	45	58.5	0.6	0.6	49.1
H71908-C-T-X-P4	0.13	40	62	12	0.6	-	15	45	58.5	0.6	0.6	49.3
H71908-AC-T-XP4	0.13	40	62	12	0.6	-	25	45	58.5	0.6	0.6	49.3
H71908-C-2RZ-T-HQ1P4	0.12	40	62	12	0.6	-	25	45	58.5	0.6	0.6	49.3
H7008-C-T-P4	0.19	40	68	15	1	1	15	46	62	1	0.3	50.8

H7008-AC-T-P4	0.19	40	68	15	1	1	25	46	62	1	0.3	50.8
H7008-C-T-HQ1-P4	0.17	40	68	15	1	1	15	46	62	1	0.3	50.8
H7008-AC-T-HQ1-P4	0.17	40	68	15	1	1	25	46	62	1	0.3	50.8
H7008-C-T-X-P4	0.22	40	68	IS	1	-	15	46	62	1	0.3	52
H7008-AC-T-X-P4	0.22	40	68	15	1	-	25	46	62	1	03	52
H7008-C-2RZ-T-HQ1-P4	0.2	40	68	15	1	-	25	46	62	1	0.3	52
H7208-C-T-P4	0.37	40	80	18	1.1	1.1	15	48	72	1	1	56.7
H7208-AC-T-P4	0.37	40	80	18	1.1	1.1	25	48	72	1	1	56.7
H7208-C-T-HQ1-P4	0.33	40	80	18	1.1	1.1	15	48	72	1	1	56.7
H7208-AC-T-HQ1-P4	0.33	40	80	18	1.1	1.1	25	48	72	1	1	56.7
H71909-C-T-P4	0.13	45	68	12	0.6	0.6	15	50	63.5	0.6	0.6	54.4
H71909-AC-T-P4	0.13	45	68	12	0.6	0.6	25	50	63.5	0.6	0.6	54.4
H71909-C-T-HQ1-P4	0.11	45	68	12	0.6	0.6	15	50	63.5	0.6	0.6	54.4
H71909-AC-T-HQ1-P4	0.11	45	68	12	0.6	0.6	25	50	63.5	0.6	0.6	54.4
H71909-C-T-X-P4	0.14	45	68	12	0.6	-	15	50	63.5	0.6	0.6	54.5
H71909-AC-T-X-P4	0.14	45	68	12	0.6	-	25	50	63.5	0.6	0.6	54.5
H71909-C-2RZ-T-HQ1-P4	0.13	45	68	12	0.6	-	25	50	63.5	0.6	0.6	54.5
H7009-C-T-P4	0.23	45	75	16	1	1	15	51	69	1	0.3	56.2
H7009-AC-T-P4	0.23	45	75	16	1	1	25	51	69	1	0.3	56.2
H7009-C-T-HQ1P4	0.2	45	75	16	1	1	15	51	69	1	0.3	56.2
H7009-AC-T-HQ1-P4	0.2	45	75	16	1	1	25	51	69	1	0.3	56.2
H7009-C-T-X-P4	0.27	45	75	16	1	-	15	51	69	1	0.3	57.7
H7009-AC-T-X-P4	0.27	45	75	16	1	-	25	51	69	1	0.3	57.7
H7009-C-2RZ-T-HQ1-P4	0.26	45	75	16	1	-	25	51	69	1	0.3	57.7
H7209-C-T-P4	0.41	45	85	19	1.1	1.1	15	52.5	78	1	1	61.8
H7209-AC-T-P4	0.41	45	85	19	1.1	1.1	25	52.5	78	1	1	61.8
H7209-C-T-HQ1-P4	0.34	45	85	19	1.1	1.1	15	52.5	78	1	1	61.8
H7209-AC-T-HQ1-P4	0.34	45	85	19	1.1	1.1	25	52.5	78	1	1	61.8
H71910-C-T-P4	0.13	50	72	12	0.6	0.6	15	55	67.5	0.6	0.6	58.9
H71910-AC-T-P4	0.13	50	72	12	0.6	0.6	25	55	67.5	0.6	0.6	58.9

H71910-C-T-HQ1-P4	0.11	50	72	12	0.6	0.6	15	55	67.5	0.6	0.6	58.9
HT1910-AC-T-P4	0.11	50	72	12	0.6	0.6	25	55	67.5	0.6	0.6	58.9
HJ1910-C-T-X-P4	0.15	50	72	12	0.6	0.6	15	55	67.5	0.6	0.6	59
H71910-AC-T-X-P4	0.15	50	72	12	0.6	0.6	25	55	67.5	0.6	0.6	59
H71910-C-2RZ-T-HQl-P4	0.14	50	72	12	0.6	0.6	25	55	67.5	0.6	0.6	59
H7010-C-T-P4	0.25	50	80	16	1	1	15	56	74	1	0.3	61.2
H7010-AC-T-P4	0.25	50	80	16	1	1	25	56	74	1	0.3	61.2
H7010-C-T-HQ1-P4	0.21	50	80	16	1	1	15	56	74	1	0.3	61.2
H7010-AC-T-HQ1-P4	0.21	50	80	16	1	1	25	56	74	1	0.3	61.2
H7010-C-T-X-P4	0.29	50	80	16	1	-	15	56	74	1	0.3	62.7
H7010-AC-T-X-P4	0.29	50	80	16	1	-	25	56	74	1	0.3	62.7
H7010-C-2RZ-T-HQ1-P4	0.27	50	80	16	1	-	25	56	74	1	0.3	62.7
H3210-C-T-P4	0.46	50	90	20	1.1	1.1	15	57	83	1	1	66.2
H7210-AC-T-P4	0.46	50	90	20	1.1	1.1	25	57	83	1	1	66.2
HT210-C-T-HQ1-P4	0.39	50	90	20	1.1	1.1	1S	57	83	1	1	66.2
H7210AC-T-HQ1-P4	0.39	50	90	20	1.1	1.1	25	57	83	1	1	66.2
H71911-C-T-P4	0.18	55	80	13	1	1	15	60	75.5	0.6	0.6	65.1
H71911-AC-T-P4	0.18	55	80	13	1	1	25	60	75.5	0.6	0.6	65.1
H71911-C-T.HQ1-P4	0.15	55	80	13	1	1	15	60	75.5	0.6	0.6	65.1
H71911-AC-THQ1-P4	0.15	55	80	13	1	1	25	60	75.5	0.6	0.6	65.1
HT1911-C-T-X-P4	0.2	55	80	13	1	-	15	60	75.5	0.6	0.6	65.2
HT1911-AC-T-X-P4	0.2	55	80	13	1	-	25	60	75.5	0.6	0.6	65.2
HT1911-C-2RZ-T-HQ1-P4	0.19	55	80	13	1	-	25	60	75.5	0.6	0.6	65.2
H7011-C-T-P4	0.37	55	90	18	1.1	1.1	15	62	83	1	0.6	68.1
H7011-AC-T-P4	0.37	55	90	18	1.1	1.1	25	62	83	1	0.6	68.1
H7011-C-T-HQ1-P4	0.32	55	90	18	1.1	1.1	15	62	83	1	0.6	68.1
H7011-AC-T-HQ1-P4	0.32	55	90	18	1.1	1.1	25	62	83	1	0.6	68.1
H7011-C-T-X-P4	0.43	55	90	18	1.1	-	15	62	83	1	0.6	69.7
H7012-C-T.HQ1-P4	0.34	60	95	18	1.1	1.1	15	67	88	1	0.6	73.1
H7012-AC-THQ1-P4	0.34	60	95	18	1.1	1.1	25	67	88	1	0.6	73.1

70、719、 72 series								hl2	H12	max		Nominal value
H7012-C-T-X-P4	0.46	60	95	18	1.1	-	15	67	88	1	0.6	74.7
H7012-AC-T-X-P4	0.46	60	95	18	1.1	-	25	67	88	1	0.6	74.7
H7012-C-2RZ-T-HQ1-P4	0.43	60	95	18	1.1	-	25	67	88	1	0.6	74.7
H7212-C-T-P4	0.8	60	110	22	1.5	1.5	15	69.5	101.5	1.5	1.5	81.2
H7212-AC-T-P4	0.8	60	110	22	1.5	1.5	25	69.5	101.5	1.5	1.5	81.2
H7212-C-T-HQ1-P4	0.7	60	110	22	1.5	1.5	15	69.5	101.5	1.5	1.5	81.2
H7212-AC-T-P4	0.7	60	110	22	1.5	1.5	25	69.5	101.5	1.5	1.5	81.2
H71913-C-T-P4	0.2	65	90	13	1	1	15	70	85.5	0.6	0.6	75.1
H71913-AC-TP4	0.2	65	90	13	1	1	25	70	85.5	0.6	0.6	75.1
H71913-C-T-HQ1-P4	0.17	65	90	13	1	1	15	70	85.5	0.6	0.6	75.1
H71913-AC-T-HQ1-P4	0.17	65	90	13	1	1	25	70	85.5	0.6	0.6	75.1
H7011-AC-T-X-P4	0.43	55	90	18	1.1	-	25	62	83	1	0.6	69.7
H7011-C-2RZ-T-HQ1-P4	0.4	SS	90	18	1.1	-	25	62	83	1	0.6	69.7
H7211-C-T-P4	0.61	55	100	21	1.5	1.5	15	63	92	1.5	1.5	73.7
H7211-AC-T-P4	0.61	55	100	21	1.5	1.5	25	63	92	1.5	1.5	73.7
H7211-C-T-HQ1-P4	0.51	55	100	21	1.5	1.5	15	63	92	1.5	1.5	73.7
H7211-AC-T-HQ1-P4	0.51	55	100	21	1.5	1.5	25	63	92	1.5	1.5	73.7
H71912-C-TP4	0.19	60	85	13	1	1	15	65	80.5	0.6	0.6	70.1
H71912-AC-T-P4	0.19	60	85	13	1	1	25	65	80.5	0.6	0.6	70.1
H71912-C-T-HQ1-P4	0.16	60	85	13	1	1	15	65	80.5	0.6	0.6	70.1
H71912-AC-T-HQ1-P4	0.16	60	85	13	1	1	25	65	80.5	0.6	0.6	70.1
H71912-C-T-X-P4	0.21	60	85	13	1	-	15	65	80.5	0.6	0.6	70.2
H71912-AC-T-X-P4	0.21	60	85	13	1	-	25	65	80.S	0.6	0.6	70.2
H71912-C-2RZ-T-HQ1-P4	0.19	60	85	13	1	-	25	65	80.5	0.6	0.6	70.2
H7012-C-T-P4	0.4	60	95	18	1.1	1.1	15	67	88	1	0.6	73.1
H7012-AC-T-P4	0.4	60	95	18	1.1	1.1	25	67	88	1	0.6	73.1
H71913-C-T-X-P4	0.23	65	90	13	1	1	15	70	85.5	0.6	0.6	75.2
H71913-AC-T-XP4	0.23	65	90	13	1	1	25	70	85.5	0.6	0.6	75.2
H71913-AC-2RZ-T-HQ1-P4	0.21	65	90	13	1	1	25	70	85.5	0.6	0.6	75.2
H7013-C-T-P4	0.42	65	100	18	1.1	1.1	15	72	93	1	0.6	78.1

70、719、 72 series								hl2	H12	max		Nominal value
H7013-AC-T-P4	0.42	65	100	18	1.1	1.1	25	72	93	1	0.6	78.1
H7013-C-T-HQ1-P4	0.36	65	100	18	1.1	1.1	15	72	93	1	0.6	78.1
H7013-C-T-X-P4	0.36	65	100	18	1.1	1.1	25	72	93	1	0.6	78.1
H7013-AC-T-HQ1-P4	0.48	65	100	18	1.1	-	15	72	93	1	0.6	79.7
H7013-AC-T-X-P4	0.48	65	100	18	1.1	-	25	72	93	1	0.6	79.7
H7013-C-2RZ-T-HQ1-P4	0.45	65	100	18	1.1	-	25	72	93	1	0.6	79.7
H7213-C-T-P4	1.02	65	120	23	1.5	1.5	15	75.5	109.5	1.5	1.5	88.2
H7213-AC-T-P4	1.02	65	120	23	1.5	1.5	25	75.5	109.5	1.5	1.5	88.2
H7213-C-T-HQ1-P4	0.88	65	120	23	1.5	1.5	15	75.5	109.5	1.5	1.5	88.2
H7213-AC-THQ1-P4	0.88	65	120	23	1.5	1.5	25	75.5	109.5	1.5	1.5	88.2
H71914-C-T-P4	0.33	70	100	16	1	1	15	76	94.5	0.6	0.6	82.2
H71914-AC-T-P4	0.33	70	100	16	1	1	25	76	94.5	0.6	0.6	82.2
H71914-C-T-HQ1-P4	0.28	70	100	16	1	1	15	76	94.5	0.6	0.6	82.2
H71914-AC-T-HQ1-P4	0.28	70	100	16	1	1	25	76	94.5	0.6	0.6	82.2
H71914-C-T-X-P4	0.37	70	100	16	1	-	15	76	94.5	0.6	0.6	82.3
H71914-AC-T-X-P4	0.37	70	100	16	1	-	25	76	94.5	0.6	0.6	82.3
H71914-AC-2RZ-T-HQ1-P4	0.35	70	100	16	1	-	25	76	94.5	0.6	0.6	82.3
H7014-C-T-P4	0.59	70	110	20	1.1	1.1	15	77	102	1	0.6	85
H7014-AC-T-P4	0.59	70	110	20	1.1	1.1	25	77	102	1	0.6	85
H7014-C-T-HQ1P4	0.5	70	110	20	1.1	1.1	15	77	102	1	0.6	85
H7014-AC-T-HQ1-P4	0.5	70	110	20	1.1	1.1	25	77	102	1	0.6	85
H7014-C-T-X-P4	0.67	70	110	20	1.1	-	15	77	102	1	0.6	86.7
H7014-AC-T-X-P4	0.67	70	110	20	1.1	-	25	77	102	1	0.6	86.7
H7014-C-2RZ-T-HQ1-P4	0.63	70	110	20	1.1	-	25	77	102	1	0.6	86.7
H7214-C-T-P4	1.12	70	125	24	1.5	1.5	15	80	115	1.5	1.5	92.7
H7214-AC-T-P4	1.12	70	125	24	1.5	1.5	25	80	115	1.5	1.5	92.7
H7214-C-T-HQ1-P4	0.96	70	125	24	1.5	1.5	15	80	115	1.5	1.5	92.7
H7214-AC-T-HQ1-P4	0.96	70	125	24	1.5	1.5	25	80	115	1.5	1.5	92.7
H71915-C-T-P4	0.35	75	105	16	1	1	15	81	99.5	0.6	0.6	87.2
H71915-AC-T-P4	0.35	75	105	16	1	1	25	81	99.5	0.6	0.6	87.2

H71915-C-T-HQ1-P4	0.3	75	105	16	1	1	15	81	99.5	0.6	0.6	87.2
H71915-AC-T-HQ1-P4	0.3	75	105	16	1	1	25	81	99.5	0.6	0.6	87.2
H71915-C-T-X-P4	0.4	75	10S	16	1	-	15	81	99.5	0.6	0.6	87.3
H71915-AC-T-X-P4	0.4	75	105	16	1	-	25	81	99.5	0.6	0.6	87.3
H71915-AC-2RZ-T-HQ1-P4	0.37	75	105	16	1	-	25	81	99.5	0.6	0.6	87.3
H7015-C-T-P4	0.62	75	115	20	1.1	1.1	15	82	107	1	0.6	90
H7015-AC-T-P4	0.62	75	115	20	1.1	1.1	25	82	107	1	0.6	90
H7015-C-T-HQ1-P4	0.53	75	115	20	1.1	1.1	15	82	107	1	0.6	90
H7015-AC-T-HQ1-P4	0.53	75	115	20	1.1	1.1	25	82	107	1	0.6	90
H7015-C-T-X-P4	0.71	75	115	20	1.1	-	15	82	107	1	0.6	91.7
H7015-AC-T-X-P4	0.71	75	115	20	1.1	-	25	82	107	1	0.6	91.7
H7015-C-2RZ-T-HQ1-P4	0.66	75	115	20	1.1	-	25	82	107	1	0.6	91.7
H7215-C-T-P4	1.21	75	130	25	1.5	1.5	15	85	120	1.5	1.5	97.7
H7215-AC-T-P4	1.21	75	130	25	1.5	1.5	25	85	120	1.5	1.5	97.7
H7215-C-T-HQ1-P4	1.05	75	130	25	1.5	1.5	15	85	120	1.5	1.5	97.7
H7215-AC-T-HQ1-P4	1.05	75	130	25	1.5	1.5	25	85	120	1.5	1.5	97.7
H71916-C-TP4	0.37	80	110	16	1	1	15	86	104	0.6	0.6	92.2
H71916-AC-TP4	0.37	80	110	16	1	1	25	86	104	0.6	0.6	92.2
H71916-C-T-HQ1-P4	0.31	80	110	16	1	1	15	86	104	0.6	0.6	92.2
H71916-AC-T-HQ1-P4	0.31	80	110	16	1	1	25	86	104	0.6	0.6	92.2
H71916-C-T-X-P4	0.41	80	110	16	1	-	15	86	104	0.6	0.6	92.2
H71916-AC-T-X-P4	0.41	80	110	16	1	-	25	86	104	0.6	0.6	92.2
H71916-AC-2RZ-T-HQ1-P4	0.38	80	110	16	1	-	25	86	104	0.6	0.6	92.2
H7016-C-T-P4	0.84	80	125	22	1.1	1.1	15	88	117	1	0.6	96.8
H7016-AC-T-P4	0.84	80	125	22	1.1	1.1	25	88	117	1	0.6	96.8
H7016-C-T-HQ1-P4	0.71	80	125	22	1.1	1.1	15	88	117	1	0.6	96.8
H7016-AC-T-HQ1-P4	0.71	80	125	22	1.1	1.1	25	88	117	1	0.6	96.8
H7016-C-T-X-P4	0.96	80	125	22	1.1	-	15	88	117	1	0.6	98.9

70、719、72 series								hl2	H12	max	ral	Nominal value
H7216-C-T-P4	1.52	80	140	26	2	2	15	94	126	2	2
H7216-AC-T-P4	1.52	80	140	26	2	2	25	94	126	2	2	105.2
H7216-C-T-HQ1-P4	1.4	80	140	26	2	2	15	94	126	2	2	105.2
H7216-AC-T-HQ1-P4	1.4	80	140	26	2	2	25	94	126	2	2	105.2
H71917-C-T-P4	0.53	85	120	18	1.1	1.1	15	92	114	0.6	0.6	99.2
H71917-AC-T-P4	0.53	85	120	18	1.1	1.1	25	92	114	0.6	0.6	99.2
H71917-C-T-HQ1-P4	0.45	85	120	18	1.1	1.1	15	92	114	0.6	0.6	99.2
H71917-AC-T-HQ1-P4	0.45	85	120	18	1.1	1.1	25	92	114	0.6	0.6	99.2
H71917-C-T-X-P4	0.61	85	120	18	1.1	-	15	92	114	0.6	0.6	99.7
H71917-AC-T-X-P4	0.61	85	120	18	1.1	-	25	92	114	0.6	0.6	99.7
H71917-AC-2RZ-T-HQ1-P4	0.57	85	120	18	1.1	-	25	92	114	0.6	0.6	99.7
H7017-C-T-P4	0.89	85	130	22	1.1	11	15	93	122	1	0.6	101.8
H7017-AC-T-P4	0.89	85	130	22	1.1	1.1	25	93	122	1	0.6	101.8
H7017-C-T-HQ1-P4	0.74	85	130	22	1.1	1.1	15	93	122	1	0.6	101.8
H7017-AC-T-HQ1-P4	0.74	85	130	22	1.1	1.1	25	93	122	1	0.6	101.8
H7017-C-T-X-P4	0.99	85	130	22	1.1	-	15	93	122	1	0.6	103.9
H7017-AC-T-X-P4	0.99	85	130	22	1.1	-	25	93	122	1	0.6	103.9
H7017-C-2RZ-T-HQ1-P4	0.93	85	130	22	1.1	-	25	93	122	1	0.6	103.9
H7217-C-T-P4	1.85	85	150	23	2	2	15	98	138	2	2	112.3
H7217-AC-T-P4	1.85	85	150	23	2	2	25	98	138	2	2	112.3
H7217-C-T-HQ1-P4	1.58	85	150	28	2	2	15	98	138	2	2	112.3
H7217-AC-T-HQ1-P4	1.58	85	150	28	2	2	25	98	138	2	2	112.3
H71918-C-T-P4	0.55	90	125	18	1.1	1.1	15	97	119	0.6	0.6	104.2
H71918-AC-T-P4	0.55	90	125	18	1.1	1.1	25	97	119	0.6	0.6	104.2
H71918-C-T-HQ1-P4	0.47	90	125	18	1.1	1.1	15	97	119	0.6	0.6	104.2
H71918-AC-T-HQ1-P4	0.47	90	125	18	1.1	1.1	25	97	119	0.6	0.6	104.2
H71918-C-T-X-P4	0.63	90	125	18	1.1	-	15	97	119	0.6	0.6	104.5
H71918-AC-T-X-P4	0.63	90	125	18	1.1	-	25	97	119	0.6	0.6	104.5
H71918-AC-2RZ-T-HQ1-P4	0.58	90	125	18	1.1	-	25	97	119	0.6	0.6	104.5
H7018-C-T-P4	1.15	90	140	24	1.5	1.5	15	100	131	1.5	0.6	108.6

Sealed Angular Contact Ball Bearings ensure that the bearings are in the best possible condition, free of contamination, before and during operation while providing high level machining performance.
- Time saving: Bearing mounting time 4 x faster & contamination through poor handling eliminated
- Non-contact seals provide valuable protection; reducing raceway and ball surface wear, less noise and vibration, lubricant breakdown
- No speed reduction due to non-contact seals
- Non-contact seals keep grease in the optimum position, reducing loss and grease drying from airflow

High-precision equipment guarantees the quality and reliability of product manufacturing

Hangzhou Huaxing Kechuang Holding Group Co., Ltd.

Hangzhou Huaxing Kechuang Holding Group Co., Ltd was established in March 1995. Currently, there are Hangzhou Huaxing Bearing Co., Ltd., Hangzhou Yijia Precision Bearing Co., Ltd., Zhejiang Aiken Machinery Co., Ltd., Zhejiang Aijing Machinery Technology Co., Ltd., and Hangzhou Aibesi Bearing Co., Ltd., Huaxing Bearing Technology (Changxing) Co., Ltd. 6 companies and 2 industrial parks. We are professional H7007-C-2RZ-P4-UL 35*62*14mm super precision sealed angular contact ball bearings for spindle repair suppliers and company. The group covers a total area of 66,800 square meters, with a planned total construction area of 130,000 square meters and a built-up area of 70,000 square meters. Three of the six companies have passed the identification of high-tech enterprises in key areas supported by the state, and have two provincial-level high-tech R&D centers. The group's R&D center has more than 80 scientific research personnel including doctors, masters, and industry senior engineers. The R&D team is strong. It has participated in the research and development of national science and technology projects and national defense strong military projects for many times. In 2020, Yijia Precision has entered the Aerospace Science and Technology Group and AVIC Group procurement system.

The company strictly follows the IATF16949, ISO9001 quality management system and ISO14001 environmental management system. Simply you can ODM/OEM H7007-C-2RZ-P4-UL 35*62*14mm super precision sealed angular contact ball bearings for spindle repair.
