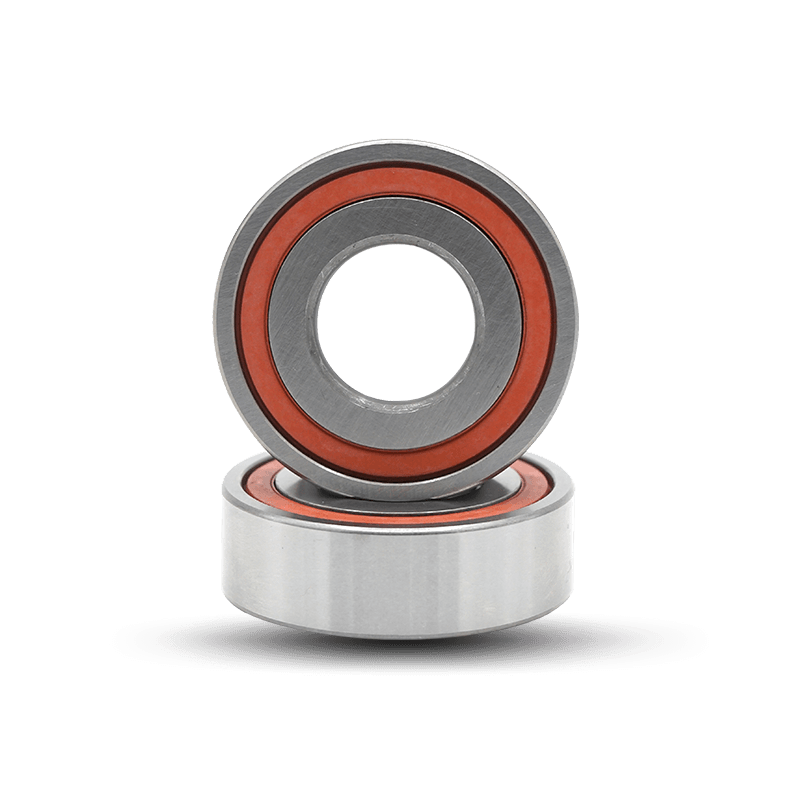

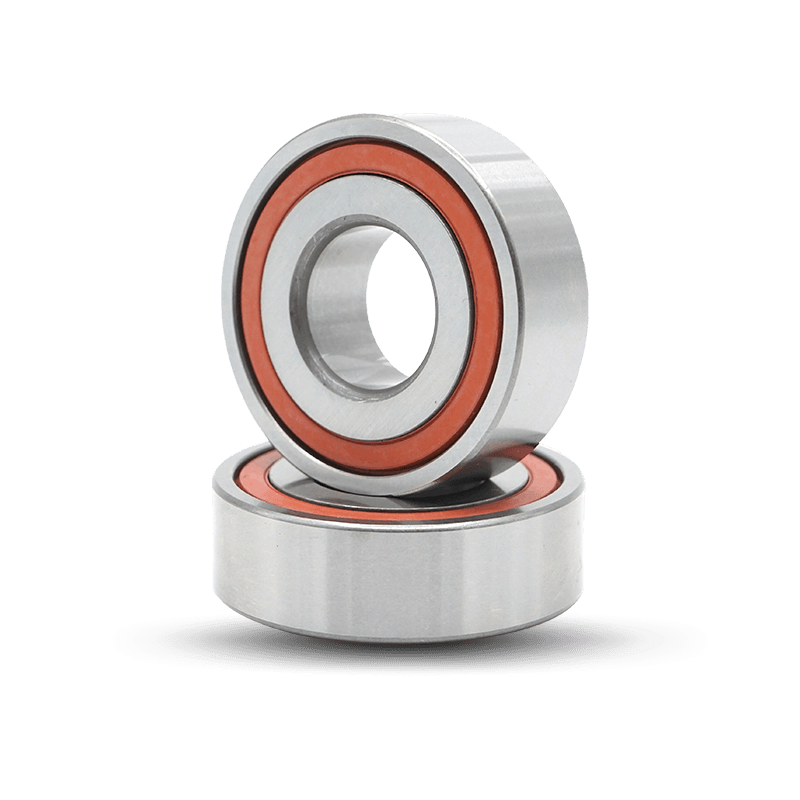

20TAC47BDGG 204715mm Ball screw bearings-thrust angular contact ball bearings

The 20*47*15mm bearings are ball screw bearings, specifically thrust angular contact ball bearings. These bearings are designed to support the axial loads generated by ball screws in machinery and equipment.

The dimensions of the bearings are 20mm inner diameter, 47mm outer diameter, and 15mm width.

Thrust angular contact ball bearings are specifically designed to handle axial loads, meaning they can support forces acting parallel to the shaft. This makes them suitable for applications in which there is a need for both high precision and high axial load-carrying capacity. They are commonly used in CNC machines, robotics, and other precision equipment.

Contact now Ask a question

The products produced by Huaxing Group are widely used in various fields. Please feel free to contact us if you have any bearing requirements!

OVERVIEW
TECHNICAL SPECIFICATION
APPLICATION AND OTHERS

Bearing No. 20TAC47BDGG - Ball bearing

· Dimensions: 20x47x15mm

· Rubber seal on both sides

· 100% Chrome Steel for higher load and precision machinery

· Supports 5,600 rpm with grease

· Our high-quality bearing is made to reduce your replacement frequency and maintenance cost

Specifications for this item

Bearing Type: Thrust angular contact ball bearing（60°） - Screw support ball bearing

Brand: HXB or OEM brand

Material: chrome steel rings and steels balls

Part No.: BSB020047-T-2RS, BSD2047C, BS2047TN-2RZ, BS20M47.2RSZ.P4.UL,

Clearance: C0

Vibration: ZV2,ZV3

Precision Class: P5,P4, ABEC-5, ABEC-7

Arrangement: DB/DT/DF/SU/TFT/TBT/QBC/QBT

Application: screw support

Size table unit: mm
Bearing number	max	Boundary Dimensions			Limiting speed		Load rating(KN)		preload	friction
	m≈kg	d	D	B	Cr	Cor	grease	MAX axial load	(KN )	( N.mm )
760201-TN	0.042	12	32	10	11.6	12.5	17000	5.2	1.4	15
760202-TN	0.052	15	35	11	12.5	15	15000	6.3	1.4	20
760203-TN	0.075	17	40	12	16.6	20	13000	8.5	1.7	30
760204-TN	0.13	20	47	14	19.3	25	12000	10.6	2.3	50
760205-TN	0.16	25	52	15	22	30.5	11000	13.2	2.5	65
760206-TN	0.24	30	62	16	26	39	9000	17.0	2.9	85
760207-TN	0.34	35	72	17	30	50	8000	21.2	3.3	115
760208 TN	0.44	40	80	18	37.5	64	7000	28.0	4.3	170
760209-TN	0.50	45	85	19	38	68	6700	28.0	4.5	190
760210-TN	0.57	50	90	20	39	75	6300	31.5	4.6	230
760211-TN	0.75	55	100	21	40.5	81.5	6000	33.5	4.9	250
760212-TN	0.96	60	110	22	56	112	5000	47.5	6.5	350
760213-TN	1.20	65	120	23	57	122	4800	50.0	7.0	410
760214-TN	1.32	70	125	24	65.5	137	4500	56.0	7.0	440
760304-TN	0.17	20	52	15	24.5	32	11000	14.0	2.9	60
760305-TN	0.28	2	62	17	28.5	41.5	9000	18.0	3.3	85
760306-TN	0.41	30	72	19	34.5	55	8000	23.6	4.3	130
760307-TN	0.55	35	80	21	36.5	61	7000	26.5	4.8	170
760308-TN	0.81	40	90	23	50	83	6300	35.5	5.6	225
760309-TN	1.02	45	100	25	58.5	104	5600	45.0	7.0	300
760310-TN	1.41	50	110	27	69.5	127	5000	53.0	7.6	360
	1.69	55	120	29	78	146	4800	63.0	8.8	460
	2.12	60	130	31	88166	166	4500	75.0	10.0	540
	2.60	65	140	33	100196	196	4000	90.0	12.0	700
760314-TN	3.16	70	150	35	110220	220	3800	95.0	14.5	760
BS1547	0.13	15	47	15	21.527	27	12000	11.5	2.6	50
BS1747	0.14	17	47	15	21.527	27	12000	11.5	2.6	50
BS2047	0.13	20	47	15	19.325	25	12000	10.6	2.3	50
BS2562	0.24	25	62	15	28.5415	41.5	9000	18.0	3.3	85
BS3062	0.23	30	62	15	2639	39	9000	17.0	2.9	85
BS3072	0.35	30	72	15	3154	54	8000	22.0	3.4	115
BS3575	0.30	35	72	15	3050	50	8000	21.2	3.3	115
BS4072	0.26	40	72	15	2849	49	8000	21.2	2.9	115
BS4090	0.65	40	90	20	5083	83	6300	35.5	5.6	225
BS4575	0.26	45	75	15	28.552	52	7500	22.4	3.1	130
BS45100	0.81	45	100	20	58.8104	104	5600	45.0	6.9	300
BS50100	0.75	50	100	20	58.5104	104	5600	45.0	7.0	330
BS5590	0.38	55	90	15	32.565.5	65.5	6300	28.0	3.6	190
BS55100	0.75	55	100	20	40.581.5	81.5	6000	33.5	4.6	250
BS55120	1.18	55	120	20	60116	116	5000	50.0	6.8	360
BS60120	1.11	60	120	20	61120	120	4800	53.0	7.0	380

High-precision equipment guarantees the quality and reliability of product manufacturing

Hangzhou Huaxing Kechuang Holding Group Co., Ltd.

Hangzhou Huaxing Kechuang Holding Group Co., Ltd was established in March 1995. Currently, there are Hangzhou Huaxing Bearing Co., Ltd., Hangzhou Yijia Precision Bearing Co., Ltd., Zhejiang Aiken Machinery Co., Ltd., Zhejiang Aijing Machinery Technology Co., Ltd., and Hangzhou Aibesi Bearing Co., Ltd., Huaxing Bearing Technology (Changxing) Co., Ltd. 6 companies and 2 industrial parks. We are professional 20TAC47BDGG 20*47*15mm Ball screw bearings-thrust angular contact ball bearings suppliers and company. The group covers a total area of 66,800 square meters, with a planned total construction area of 130,000 square meters and a built-up area of 70,000 square meters. Three of the six companies have passed the identification of high-tech enterprises in key areas supported by the state, and have two provincial-level high-tech R&D centers. The group's R&D center has more than 80 scientific research personnel including doctors, masters, and industry senior engineers. The R&D team is strong. It has participated in the research and development of national science and technology projects and national defense strong military projects for many times. In 2020, Yijia Precision has entered the Aerospace Science and Technology Group and AVIC Group procurement system.

The company strictly follows the IATF16949, ISO9001 quality management system and ISO14001 environmental management system. Simply you can ODM/OEM 20TAC47BDGG 20*47*15mm Ball screw bearings-thrust angular contact ball bearings .

Company Certificate

Passed IS09001: 2000 quality management system and ISO/TSl6949: 2002 quality management system certification.

Factory

Contact us

Address:
East Side of Dongxi Road, Linping Hangzhou, China.
Phone:
86-571-86157772
Fax:
86-571-86157772
Email:
[email protected]

If you need it, please contact us!

We have a strong R&D team, and we can develop and produce products according to the drawings or samples the customers offered.

NSK	SKF	NTN	FAG	HXB Bearing No.
15TAC47B		BST15X47-1B		BS1547TN
15TAC47BDGG		BST15X47-1B LXL		BS1547TN-2RZ
17TAC47B		BST17X47-1B		BS1747TN
17TAC47BDGG		BST17X47-1B LXL		BS1747TN-2RZ
20TAC47B	BSD2047C	BST20X47-1B	BSB020047-T	BS2047TN
20TAC47BDGG		BST20X47-1B LXL		BS2047TN-2RZ
25TAC62B	BSD2562C	BST25X62-1B	BSB025062-T	BS2562TN
25TAC62BDGG		BST25X62-1B LXL		BS2562TN-2RZ
30TAC62B	BSD3062C	BST30X62-1B	BSB030062-T	BS3062TN
30TAC62BDGG		BST30X62-1B LXL		BS3062TN-2RZ
35TAC72B	BSD3572C	BST35X72-1B	BSB035072-T	BS3572TN
35TAC72BDGG		BST35X72-1B LXL		BS3572TN-2RZ
40TAC72B	BSD4072C	BST40X72-1B	BSB040072-T	BS4072TN
40TAC72BDGG		BST40X72-1B LXL		BS4072TN-2RZ
40TAC90B	BSD4090C	BST40X90-1B	BSB040090-T	BS4090TN
40TAC90BDGG		BST40X90-1B LXL		BS4090TN-2RZ
45TAC100B	BSD45100C	BST45X100-1B	BSB045100-T	BS45100TN
45TAC100BDGG		BST45X100-1B LXL		BS45100TN-2RZ
