Passed IS09001: 2000 quality management system and ISO/TSl6949: 2002 quality management system certification.
· Dimensions: 25x52x20.6mm
· Rubber seal on both sides
· 100% Chrome Steel for higher speed and precision machinery
· Our high-quality bearing is made to reduce your replacement frequency and maintenance cost

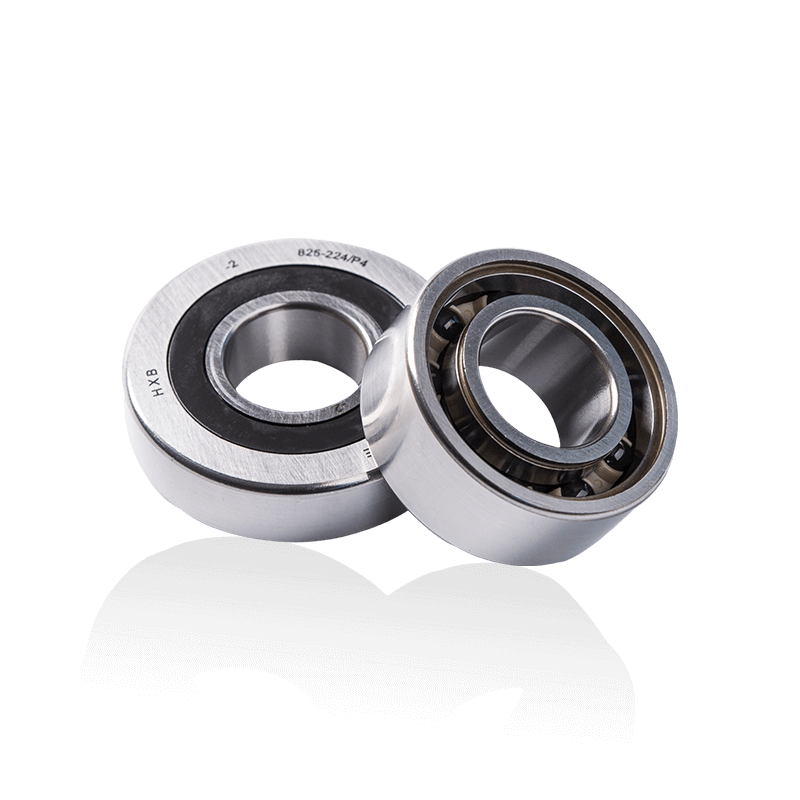

Bearing Type: high speed motor shaft ball bearing - high speed servo motor bearing supplier
Brand: HXB or OEM brand
Material: chrome steel rings and ceramic balls(Si3N4), special cage

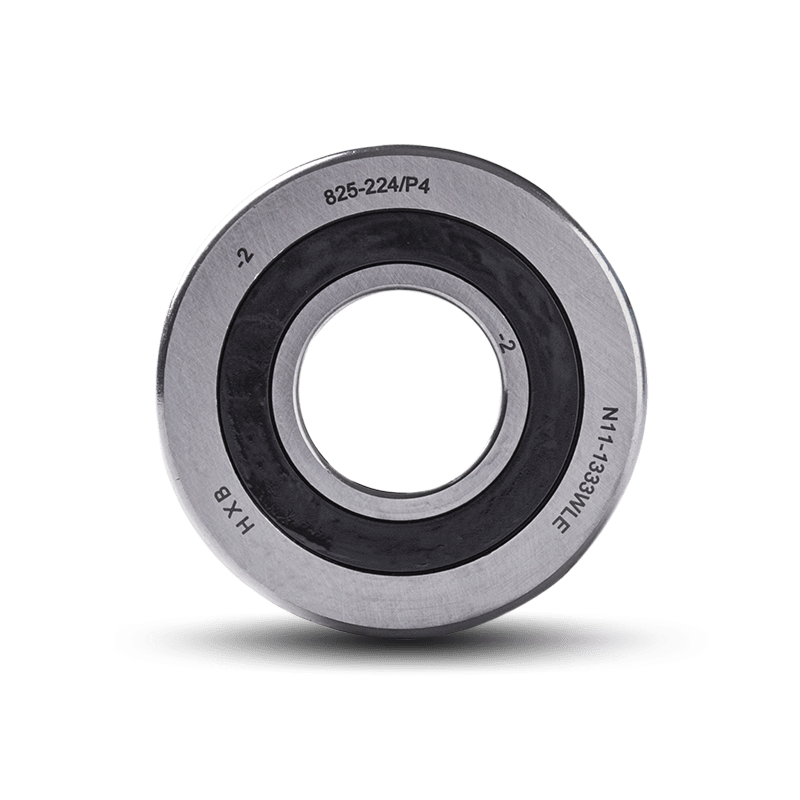

Part No.: B25-224,CB7305BTV2RP4G
Clearance: C0
Vibration: ZV2,ZV3
Precision Class:,P4, ABEC-7
Application: Servo motor(FANUC),
Condition Description
Corrosive Environment/High Accuracy/Vibration
Product Features
Excellent oxidation and heat stability/Excellent rust prevention/Excellent low temperature characteristics/Low noise/NLGI consistency 3/Negligible effect on rubbers and plastics
Benefits
Superior grease properties extend high temperature service life 1.5 times/Restricts fretting corrosion/Low torque/minimal power loss even at low starting temperatures/Quieter servomotor operation, less vibration/Excellent bearing corrosion protection in humid conditions
Size table unit: mm |
|
||||||||
Bearing number |
Shield |
Rubber seal |
Bound ry dimensions(mm) |
basic load rating |
Limiting speed |
||||
|
|
|
d |
D |
B |
r |
Cr(Dynamic load) |
Cor(Static load) |
(min) |
6000T1X |
ZZ |
2RZ |
10 |
26 |
8 |
0.3 |
4.55 |
1.87 |
38900 |
6200T1X |
ZZ |
2RZ |
10 |
30 |
9 |
0.6 |
5.1 |
2.39 |
35000 |
6001T1X |
ZZ |
2RZ |
12 |
28 |
8 |
03 |
5.10 |
2.37 |
35000 |
6201TIX |
ZZ |
2RZ |
12 |
32 |
10 |
0.6 |
6.80 |
3.05 |
31900 |
6301T1X |
ZZ |
2RZ |
12 |
37 |
12 |
1.0 |
9.70 |
4.20 |
28600 |
6002T1X |
ZZ |
2RZ |
15 |
32 |
9 |
0.3 |
5.60 |
2.83 |
29800 |
6202T1X |
ZZ |
2RZ |
15 |
35 |
11 |
0.6 |
7.65 |
3.75 |
28000 |
6302T1X |
ZZ |
2RZ |
15 |
42 |
13 |
1.0 |
11.4 |
5.45 |
24600 |
6003TIX |
ZZ |
2RZ |
17 |
35 |
10 |
0.3 |
6.00 |
3.25 |
27000 |
6203TIX |
ZZ |
2RZ |
17 |
40 |
12 |
0.6 |
9.55 |
4.80 |
24600 |
6303TIX |
ZZ |
2RZ |
17 |
47 |
14 |
1.0 |
13.6 |
6.65 |
21900 |
6004T1X |
ZZ |
2RZ |
20 |
42 |
12 |
0.6 |
9.40 |
5.00 |
22600 |
6204T1X |
ZZ |
2RZ |
20 |
47 |
14 |
1.0 |
12.8 |
6.60 |
20900 |
6005T1X |
ZZ |
2RZ |
25 |
47 |
12 |
0.6 |
10.1 |
5.85 |
19500 |
6205T1X |
ZZ |
2RZ |
25 |
52 |
15 |
1.0 |
14.0 |
7.85 |
18200 |
63205T1X |
ZZ |
2R2 |
25 |
52 |
20.6 |
1.0 |
14.0 |
7.85 |
18200 |
6305TLX |
ZZ |
2RZ |
25 |
62 |
17 |
1.5 |
20.6 |
11.2 |
16100 |
6006TIX |
ZZ |
2RZ |
30 |
55 |
13 |
1.0 |
13.2 |
8.30 |
16500 |
6206PTIX |
ZZ |
2RZ |
30 |
62 |
16 |
1.0 |
19.5 |
11.3 |
15300 |
T1X=polyamide resin cage
60 • 62 • 632 • 63 series
the inside diameter of 10-85mm
Open type Dust cover type Seal ring type
6000 ZZ 2RZ
East Side of Dongxi Road, Linping Hangzhou, China.
86-571-86157772
86-571-86157772
We have a strong R&D team, and we can develop and produce products according to the drawings or samples the customers offered.
