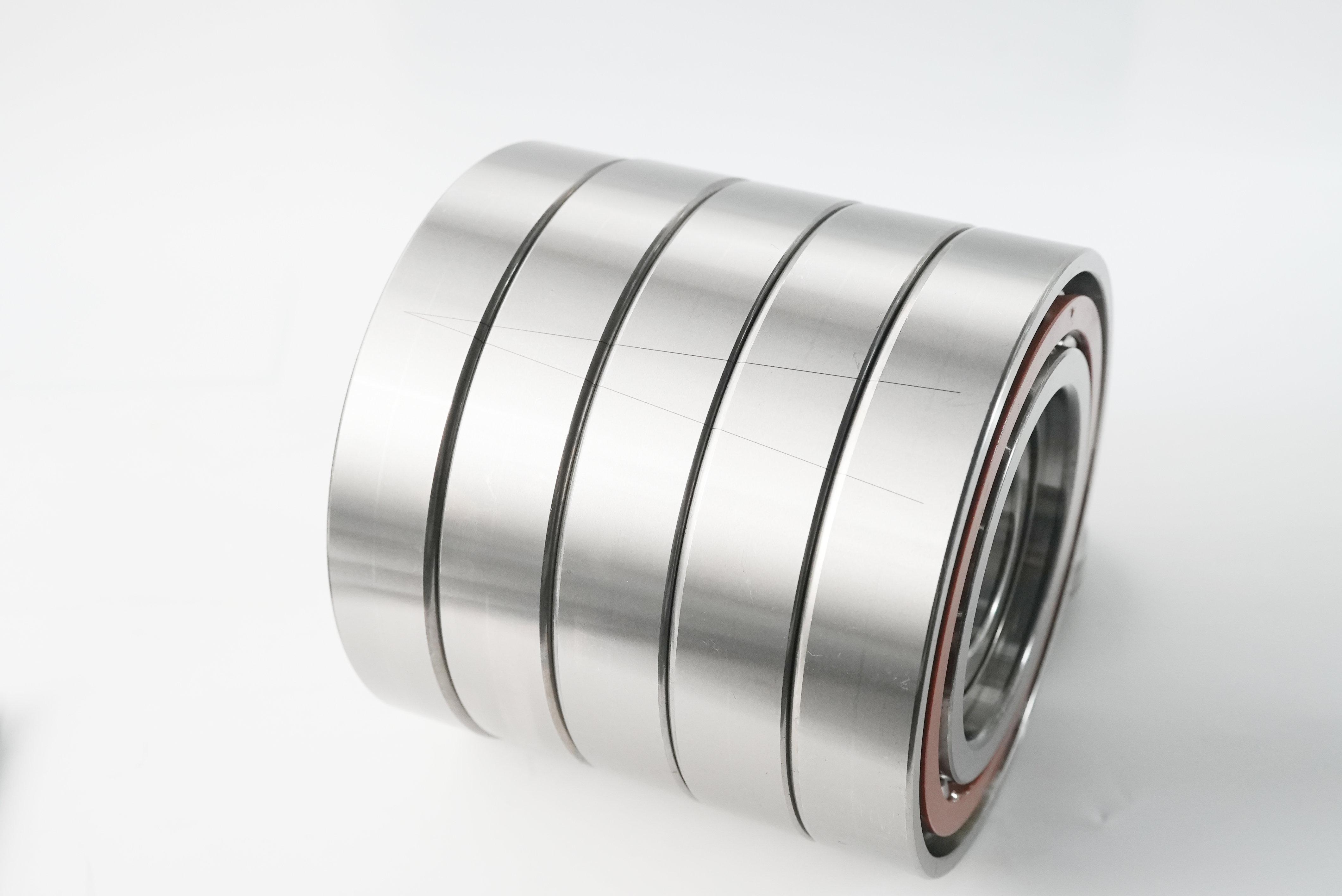

7220ACPBCP4 10018034mm super precision and spindle bearings photovoltaic industry OEM Home / Product / Angular contact ball bearing series / Super precision angular contact ball bearings-ceramic ball / 7220ACPBCP4 10018034mm super precision and spindle bearings photovoltaic industry

7220ACPBCP4 10018034mm super precision and spindle bearings photovoltaic industry

Contact now Ask a question

The products produced by Huaxing Group are widely used in various fields. Please feel free to contact us if you have any bearing requirements!

OVERVIEW
TECHNICAL SPECIFICATION
APPLICATION AND OTHERS

Hybrid ceramic ball bearings combine two different materials, bearing rings made from steel and balls made from ceramic.

Hybrid ceramic ball bearings applicable for high speed and low friction and long life. Also it perform excellent in some ways, such as under water applications.

Our production range of hybrid ceramic ball bearings: inner ring size from 8mm to 120mm, for example H708C-2RZ HQ1 P4 to H7220C-2RZ HQ1 P4

Application for our HXB hybrid ceramic ball bearings: CNC router, machine tool spindle, engraving milling spindle, grinding spindle, lathe spindle, woodworking spindle and so on.

Technical Data

Inside Ø (mm):	100
Outside Ø (mm):	180
Width (mm):	34
Tolerance for inside-Ø (mm):	0/-0,008
Tolerance for outside-Ø (mm):	0/-0,015
Tolerance for width (mm):	0/-0,15
Tolerance for shaft da (mm):	0,30/-0,30
Contact Angle:	25°
Rows Of Balls:	single row
Seal:	non
Ring Material:	GCr15, 100Cr6, SUJ2
Rolling Element Material:	steel balls
Cage Material:	Phenolic Resin
Tolerance Class:	P4
Lubrication:	non
Type of lubrication:	oil
Product weight:	3.21 kg

Features

· it is suitable for high radial and axial loads in one direction

· it has also an axial load carrying capacity on both sides in the X- or O-arrangement in pairs

· accuracy grade: P4S (main dimensions at least according to ISO-tolerance class 4)

· all running tolerances are classified according to ISO-tolerance class 2

· it is designed for a high running accuracy and high speeds with maximum rigidity and operational safety

· seal: open design (without seal)

Size Chart Unit: mm	Mass	Boundary Dimensions(mm)					Angel	Assemble Dimensions(mm)
Bearing Numbers	m kg	d	D	B	r	r₁	a	d_a	D_a	r_a	r_a1	E_tk
H7201-C-T-P-4	0.04	12	32	10	0.6	0.6	15	16.5	27.5	0.6	0.6	21.1
H7201-AC-T-P4	0.04	12	32	10	0.6	0.6	25	16.5	27.5	0.6	0.6	21.1
H7201-C-T-HQ1-P4	0.03	12	32	10	0.6	0.6	15	16.5	27.5	0.6	0.6	21.1
H7201-AC-T-HQ1-P4	0.03	12	32	10	0.6	0.6	25	16.5	27.5	0.6	0.6	21.1
H71902-C-T-P4	0.02	15	28	7	0.3	0.3	15	18	25.5	0.3	0.3	20.9
H71902-AC-T-P4	0.02	15	28	7	0.3	0.3	25	18	25.5	0.3	0.3	20.9
H71902-C-T-HQ1-P4	0.01	15	28	7	0.3	0.3	1S	18	25.5	0.3	0.3	20.9
H71902-AC-T-HQ1-P4	0.01	15	28	7	0.3	0.3	25	18	25.5	0.3	0.3	20.9
H71902-C-T-X-P4	0.02	15	28	7	0.3	-	1S	18	25.5	0.3	0.3	20.3
H71902-AC-T-X-P4	0.02	15	28	7	0.3	-	25	18	25.5	0.3	0.3	20.3
H71902-C-2RZ-T-HQ1-P4	0.02	15	28	7	0.3	-	25	18	25.5	0.3	0.3	20.3
H7002-C-T-P-4	0.03	15	32	9	0.3	0.3	15	19	29	0.3	0.1	22.3
H7002-AC-T-P4	0.03	15	32	9	0.3	0.3	25	19	29	0.3	0.1	22.3
H7002-C-T-HQ1-P4	0.03	15	32	9	0.3	0.3	15	19	29	0.3	0.1	22.3
H7002-AC-T-HQ1-P4	0.03	15	32	9	0.3	0.3	25	19	29	0.3	0.1	22.3
H7002-C-T-X-P4	0.03	15	32	9	0.3	-	15	19	29	0.3	0.1	22.2
H7002-AC-T-X-P4	0.03	15	32	9	0.3	-	25	19	29	0.3	0.1	22.2
H7002-C-2RZ-T-HQ1-P4	0.03	15	32	9	0.3	-	25	19	29	0.3	0.1	22.2
H7202-C-T-P-4	0.04	15	35	11	0.6	0.6	15	19.5	30.5	0.6	0.6	23.3
H7202-AC-T-P4	0.04	15	35	11	0.6	0.6	25	19.5	30.5	0.6	0.6	23.3
H7202-C-T-HQ1-P4	0.04	15	35	11	0.6	0.6	15	19.5	30.5	0.6	0.6	23.3
H7202-AC-T-HQ1-P4	0.04	15	35	11	0.6	0.6	25	19.5	30.5	0.6	0.6	23 3
H71903-C-T-P4	0.02	17	30	7	0.3	0.3	15	20	30.5	0.3	0.3	22.2
H71903-AC-T-P4	0.02	17	30	7	0.3	0.3	25	20	27.5	0.3	0.3	22.2
H71903-C-T-HQ1-P4	0.01	17	30	7	0.3	0.3	15	20	27.5	0.3	0.3	22.2
H71903-AC-T-HQ1-P4	0.01	17	30	7	0.3	0.3	25	20	27.5	0.3	0.3	22.2
H71903-C-T-X-P4	0.02	17	30	7	0.3	-	15	20	27.5	0.3	0.3	22.3
H71903-AC-T-X-P4	0.02	17	30	7	0.3	-	25	20	27.5	0.3	0.3	22.3
H71903-AC-T-X-P4	0.02	17	30	7	0.3	-	25	20	27.5	0.3	0.3	22.3
H7003-C-T-P4	0.04	17	35	10	0.3	0.3	15	21	32	0.3	0.1	24.1

H7003-C-T-HQ1-P4	0.03	17	35	10	0.3	0.3	15	21	32	0.3	0.1	24.1
H7003-AC-T-HQ1-P4	0.03	17	35	10	0.3	0.3	25	21	32	0.3	0.1	24.1
H7003-C-T-X-P4	0.04	17	35	10	0.3	-	15	21	32	0.3	0.1	24.7
H7003-AC-T-X-P4	0.04	17	35	10	0.3	-	25	21	32	0.3	0.1	24.7
H7003-C-2RZ-T-HQ1-P4	0.04	17	35	10	0.3	-	25	21	32	0.3	0.1	24.7
H7203-C-T-P4	0.06	17	40	12	0.6	0.6	15	22.5	34.5	0.6	0.6	26.7
H7203-AC-T-P4	0.06	17	40	12	0.6	0.6	25	22.5	34.5	0.6	0.6	26.7
H7203-C-T-HQ1-P4	0.06	17	40	12	0.6	0.6	15	22.5	34.5	0.6	0.6	26.7
H7203-AC-T-HQ1-P4	0.06	17	40	12	0.6	0.6	25	22.5	34.5	0.6	0.6	26.7
H71904-C-T-P4	0.03	20	37	9	0.3	0.3	15	24	33.5	0.3	0.3	26.8
H71904-AC-T-P4	0.03	20	37	9	0.3	0.3	25	24	33.5	0.3	0.3	26.8
H71904-C-T-HQ1-P4	0.03	20	37	9	0.3	0.3	15	24	33.5	0.3	0.3	26.8
H71904-AC-T-HQ1-P4	0.03	20	37	9	0.3	0.3	25	24	33.5	0.3	0.3	26.8
H71904-C-T-X-P4	0.04	20	37	9	0.3	-	15	24	33.5	0.3	03	27.2
H71904-AC-T-X-P4	0.04	20	37	9	0.3	-	25	24	33.5	0.3	0.3	27.2
H71904-C-2RZ-T-HQ1-P4	0.04	20	37	9	0.3	-	25	24	33.5	0.3	0.3	27.2
H7004-C-T-P4	0.07	20	42	12	0.6	0.6	15	25	37	0.6	0.3	28.8
H7004 AC-T-P4	0.07	20	42	12	0.6	0.6	25	25	37	0.6	0.3	28.8
H7004-C-T-HQ1P4	0.07	20	42	12	0.6	0.6	15	25	37	0.6	0.3	28.8
H7004-AC-T-HQ1-P4	0.07	20	42	12	0.6	0.6	25	25	37	0.6	0.3	28.8
H7004-C-T-X-P4	0.08	20	42	12	0.6	1	15	25	37	0.6	0.3	29.3
H7004-AC-T-X-P4	0.08	20	42	12	0.6	1	25	25	37	0.6	0.3	29.3
H7004-C-2RZ-T-HQ1-P4	0.08	20	42	12	0.6	1	25	25	37	0.6	0.3	29.3
H7204-C-T-P4	0.1	20	47	14	1	1	15	26.5	40.5	1	1	31.7
H7204-AC-T-P4	0.1	20	47	14	1	1	25	26.5	40.5	1	1	31.7
H7204-C-T-HQ1-P4	0.09	20	47	14	1	1	15	26.5	40.5	1	1	31.7
H7204-AC-T-HQ1-P4	0.09	20	47	14	1	1	25	26.5	40.5	1	1	31.7
H71905-C-T-P4	0.04	25	42	9	0.3	0.3	15	29	38.5	0.3	0.3	31.8
H71905-AC-T-P4	0.04	25	42	9	0.3	0.3	25	29	38.5	0.3	0.3	31.8

H71905-C-T-HQ1-P4	0.04	25	42	9	0.3	0.3	15	29	38.5	0.3	0.3	31.8
H71905-AC-T-HQ1-P4	0.04	25	42	9	0.3	0.3	25	29	38.5	0.3	0.3	31.8
H71905-C-T-X-P4	0.05	25	42	9	0.3	-	15	29	38.5	0.3	0.3	32.2
H7190S-AC-T-X-P4	0.05	25	42	9	0.3	-	25	29	38.5	0.3	0.3	32.2
H71905-C-2RZ-T-HQ1-P4	0.05	25	42	9	0.3	-	25	29	38.5	0.3	03	32.2
H7005-C-T-P4	0.08	25	47	12	0.6	0.6	15	30	42	0.6	0.3	33.5
H7005-AC-T-P4	0.08	25	47	12	0.6	0.6	25	30	42	0.6	0.3	33.5
H7005-C-T-HQ1-P4	0.08	25	47	12	0.6	0.6	15	30	42	0.6	0.3	33.5
H7005-AC-T-HQ1-P4	0.08	25	47	12	0.6	0.6	25	30	42	0.6	0.3	33.5
H7005-C-T-X-P4	0.09	25	47	12	0.6	-	15	30	42	0.6	0.3	34.3
H7005-AC-T-X-P4	0.09	25	47	12	0.6	-	25	30	42	0.6	0.3	34.3
H7005-C-2RZ-T-HQ1-P4	0.09	25	47	12	0.6	-	25	30	42	0.6	0.3	34.3
H7205-C-T-P4	0.12	25	52	15	1	1	15	31.5	45.5	1	1	36.5
H7205-AC-T-P4	0.12	25	52	15	1	1	25	31.5	45.5	1	1	36.5
H7205-C-T-HQ1-P4	0.12	25	52	15	1	1	15	31.5	45.5	1	1	36.5
H7205-AC-T-HQ1-P4	0.12	25	52	15	1	1	25	31.5	45.5	1	1	36.5
H71906-C-T-P4	0.05	30	47	9	0.3	0.3	15	34	43.5	0.3	0.3	36.8
H71906-AC-TP4	0.05	30	47	9	0.3	0.3	25	34	43.5	0.3	0.3	36.8
H71906-C-T-HQ1-P4	0.04	30	47	9	0.3	0.3	15	34	43.5	0.3	0.3	36.8
H71906-AC-T-HQ1-P4	0.04	30	47	9	0.3	0.3	25	34	43.5	0.3	0.3	36.8
H71906-C-T-X-P4	0.05	30	47	9	0.3	-	15	34	43.5	0.3	0.3	36.8
H71906-AC-T-X-P4	0.05	30	47	9	0.3	-	25	34	43.5	0.3	0.3	36.8
H71906-C-2RZ-T-HQ1-P4	0.05	30	47	9	0.3	-	25	34	43.5	0.3	0.3	36.8
H7006-C-T-P4	0.11	30	55	13	1	1	15	36	49	1	0.3	40.4
H7006-AC-T-P4	0.11	30	55	13	1	1	2S	36	49	1	03	40.4
H7006-C-T-HQ1-P4	0.1	30	55	13	1	1	15	36	49	1	0.3	40.4
H7006-AC-T-HQ1-P4	0.1	30	55	13	1	1	25	36	49	1	0.3	40.4
H7006-C-T-X-P4	0.13	30	55	13	1	-	15	36	49	1	0.3	40.5
H7006-AC-T-X-P4	0.13	30	55	13	1	-	25	36	49	1	0.3	40.5
H7006-C-2RZ-T-HQ1-P4	0.12	30	55	13	1	-	25	36	49	1	0.3	40.5

H7206-C-T-P4	0.19	30	62	16	1	1	15	37.5	54.5	1	1	43.7
H7206-AC-T-P4	0.19	30	62	16	1	1	25	37.5	54.5	1	1	43.7
H7206-C-T-HQ1-P4	0.17	30	62	16	1	1	15	37.5	54.5	1	1	43.7
H7206-AC-T-HQ1-P4	0.17	30	62	16	1	1	25	37.5	54.5	1	1	43.7
H71907-C-T-P4	0.07	35	55	10	0.6	0.6	15	40	51.5	0.6	0.6	44
H71907-AC-T-P4	0.07	35	55	10	0.6	0.6	25	40	51.5	0.6	0.6	44
H71907-C-T-HQ1-P4	0.06	35	55	10	0.6	0.6	15	40	51.5	0.6	0.6	44
H71907-AC-T-HQ1-P4	0.06	35	55	10	0.6	0.6	25	40	51.5	0.6	0.6	44
H71907-C-T-X-P4	0.08	35	55	10	0.6	-	15	40	51.5	0.6	0.6	43.3
H71907-AC-T-X-P4	0.08	35	55	10	0.6	-	25	40	51.5	0.6	0.6	43.3
H71907 C-2RZ-T-HQ1-P4	0.08	35	55	10	0.6	-	25	40	51.5	0.6	0.6	43.3
H7007-C-T-P4	0.15	35	62	14	1	1	15	41	56	1	0.3	45.6
H7007-AC-T-P4	0.15	35	62	14	1	1	25	41	S6	1	0.3	45.6
H7007-C-T-HQ1-P4	0.13	35	62	14	1	1	15	41	56	1	0.3	45.6
H7007-AC-T-HQ1-P4	0.13	35	62	14	1	1	25	41	56	1	03	45.6
H7007-C-T-X-P4	0.17	35	62	14	1	-	15	41	56	1	0.3	46.5
H7007-AC-T-X-P4	0.17	35	62	14	1	-	25	41	56	1	0.3	46.5
H7007-C-2RZ-T-HQ1-P4	0.17	35	62	14	1	-	25	41	56	1	0.3	46.5
H7207-C-T-P4	0.28	35	72	17	1.1	1.1	15	44	63	1	1	50.7
H7207-AC-T-P4	0.28	35	72	17	1.1	1.1	25	44	63	1	1	50.7
H7207-C-T-HQ1-P4	0.24	35	72	17	1.1	1.1	15	44	63	1	1	50.7
H7207-AC-T-HQ1-P4	0.24	35	72	17	1.1	1.1	25	44	63	1	1	50.7
H71908-C-T-P4	0.11	40	62	12	0.6	0.6	15	45	58.5	0.6	0.6	49.1
H71908-AC-T-P4	0.11	40	62	12	0.6	0.6	25	45	58.5	0.6	0.6	49.1
H71908-C-T-HQ1-P4	0.09	40	62	12	0.6	0.6	15	45	58.S	0.6	0.6	49.1
H71908-AC-T-HQ1-P4	0.09	40	62	12	0.6	0.6	25	45	58.5	0.6	0.6	49.1
H71908-C-T-X-P4	0.13	40	62	12	0.6	-	15	45	58.5	0.6	0.6	49.3
H71908-AC-T-XP4	0.13	40	62	12	0.6	-	25	45	58.5	0.6	0.6	49.3
H71908-C-2RZ-T-HQ1P4	0.12	40	62	12	0.6	-	25	45	58.5	0.6	0.6	49.3
H7008-C-T-P4	0.19	40	68	15	1	1	15	46	62	1	0.3	50.8

H7008-AC-T-P4	0.19	40	68	15	1	1	25	46	62	1	0.3	50.8
H7008-C-T-HQ1-P4	0.17	40	68	15	1	1	15	46	62	1	0.3	50.8
H7008-AC-T-HQ1-P4	0.17	40	68	15	1	1	25	46	62	1	0.3	50.8
H7008-C-T-X-P4	0.22	40	68	IS	1	-	15	46	62	1	0.3	52
H7008-AC-T-X-P4	0.22	40	68	15	1	-	25	46	62	1	03	52
H7008-C-2RZ-T-HQ1-P4	0.2	40	68	15	1	-	25	46	62	1	0.3	52
H7208-C-T-P4	0.37	40	80	18	1.1	1.1	15	48	72	1	1	56.7
H7208-AC-T-P4	0.37	40	80	18	1.1	1.1	25	48	72	1	1	56.7
H7208-C-T-HQ1-P4	0.33	40	80	18	1.1	1.1	15	48	72	1	1	56.7
H7208-AC-T-HQ1-P4	0.33	40	80	18	1.1	1.1	25	48	72	1	1	56.7
H71909-C-T-P4	0.13	45	68	12	0.6	0.6	15	50	63.5	0.6	0.6	54.4
H71909-AC-T-P4	0.13	45	68	12	0.6	0.6	25	50	63.5	0.6	0.6	54.4
H71909-C-T-HQ1-P4	0.11	45	68	12	0.6	0.6	15	50	63.5	0.6	0.6	54.4
H71909-AC-T-HQ1-P4	0.11	45	68	12	0.6	0.6	25	50	63.5	0.6	0.6	54.4
H71909-C-T-X-P4	0.14	45	68	12	0.6	-	15	50	63.5	0.6	0.6	54.5
H71909-AC-T-X-P4	0.14	45	68	12	0.6	-	25	50	63.5	0.6	0.6	54.5
H71909-C-2RZ-T-HQ1-P4	0.13	45	68	12	0.6	-	25	50	63.5	0.6	0.6	54.5
H7009-C-T-P4	0.23	45	75	16	1	1	15	51	69	1	0.3	56.2
H7009-AC-T-P4	0.23	45	75	16	1	1	25	51	69	1	0.3	56.2
H7009-C-T-HQ1P4	0.2	45	75	16	1	1	15	51	69	1	0.3	56.2
H7009-AC-T-HQ1-P4	0.2	45	75	16	1	1	25	51	69	1	0.3	56.2
H7009-C-T-X-P4	0.27	45	75	16	1	-	15	51	69	1	0.3	57.7
H7009-AC-T-X-P4	0.27	45	75	16	1	-	25	51	69	1	0.3	57.7
H7009-C-2RZ-T-HQ1-P4	0.26	45	75	16	1	-	25	51	69	1	0.3	57.7
H7209-C-T-P4	0.41	45	85	19	1.1	1.1	15	52.5	78	1	1	61.8
H7209-AC-T-P4	0.41	45	85	19	1.1	1.1	25	52.5	78	1	1	61.8
H7209-C-T-HQ1-P4	0.34	45	85	19	1.1	1.1	15	52.5	78	1	1	61.8
H7209-AC-T-HQ1-P4	0.34	45	85	19	1.1	1.1	25	52.5	78	1	1	61.8
H71910-C-T-P4	0.13	50	72	12	0.6	0.6	15	55	67.5	0.6	0.6	58.9
H71910-AC-T-P4	0.13	50	72	12	0.6	0.6	25	55	67.5	0.6	0.6	58.9

H71910-C-T-HQ1-P4	0.11	50	72	12	0.6	0.6	15	55	67.5	0.6	0.6	58.9
HT1910-AC-T-P4	0.11	50	72	12	0.6	0.6	25	55	67.5	0.6	0.6	58.9
HJ1910-C-T-X-P4	0.15	50	72	12	0.6	0.6	15	55	67.5	0.6	0.6	59
H71910-AC-T-X-P4	0.15	50	72	12	0.6	0.6	25	55	67.5	0.6	0.6	59
H71910-C-2RZ-T-HQl-P4	0.14	50	72	12	0.6	0.6	25	55	67.5	0.6	0.6	59
H7010-C-T-P4	0.25	50	80	16	1	1	15	56	74	1	0.3	61.2
H7010-AC-T-P4	0.25	50	80	16	1	1	25	56	74	1	0.3	61.2
H7010-C-T-HQ1-P4	0.21	50	80	16	1	1	15	56	74	1	0.3	61.2
H7010-AC-T-HQ1-P4	0.21	50	80	16	1	1	25	56	74	1	0.3	61.2
H7010-C-T-X-P4	0.29	50	80	16	1	-	15	56	74	1	0.3	62.7
H7010-AC-T-X-P4	0.29	50	80	16	1	-	25	56	74	1	0.3	62.7
H7010-C-2RZ-T-HQ1-P4	0.27	50	80	16	1	-	25	56	74	1	0.3	62.7
H3210-C-T-P4	0.46	50	90	20	1.1	1.1	15	57	83	1	1	66.2
H7210-AC-T-P4	0.46	50	90	20	1.1	1.1	25	57	83	1	1	66.2
HT210-C-T-HQ1-P4	0.39	50	90	20	1.1	1.1	1S	57	83	1	1	66.2
H7210AC-T-HQ1-P4	0.39	50	90	20	1.1	1.1	25	57	83	1	1	66.2
H71911-C-T-P4	0.18	55	80	13	1	1	15	60	75.5	0.6	0.6	65.1
H71911-AC-T-P4	0.18	55	80	13	1	1	25	60	75.5	0.6	0.6	65.1
H71911-C-T.HQ1-P4	0.15	55	80	13	1	1	15	60	75.5	0.6	0.6	65.1
H71911-AC-THQ1-P4	0.15	55	80	13	1	1	25	60	75.5	0.6	0.6	65.1
HT1911-C-T-X-P4	0.2	55	80	13	1	-	15	60	75.5	0.6	0.6	65.2
HT1911-AC-T-X-P4	0.2	55	80	13	1	-	25	60	75.5	0.6	0.6	65.2
HT1911-C-2RZ-T-HQ1-P4	0.19	55	80	13	1	-	25	60	75.5	0.6	0.6	65.2
H7011-C-T-P4	0.37	55	90	18	1.1	1.1	15	62	83	1	0.6	68.1
H7011-AC-T-P4	0.37	55	90	18	1.1	1.1	25	62	83	1	0.6	68.1
H7011-C-T-HQ1-P4	0.32	55	90	18	1.1	1.1	15	62	83	1	0.6	68.1
H7011-AC-T-HQ1-P4	0.32	55	90	18	1.1	1.1	25	62	83	1	0.6	68.1
H7011-C-T-X-P4	0.43	55	90	18	1.1	-	15	62	83	1	0.6	69.7
H7012-C-T.HQ1-P4	0.34	60	95	18	1.1	1.1	15	67	88	1	0.6	73.1
H7012-AC-THQ1-P4	0.34	60	95	18	1.1	1.1	25	67	88	1	0.6	73.1

70、719、 72 series								hl2	H12	max		Nominal value
H7012-C-T-X-P4	0.46	60	95	18	1.1	-	15	67	88	1	0.6	74.7
H7012-AC-T-X-P4	0.46	60	95	18	1.1	-	25	67	88	1	0.6	74.7
H7012-C-2RZ-T-HQ1-P4	0.43	60	95	18	1.1	-	25	67	88	1	0.6	74.7
H7212-C-T-P4	0.8	60	110	22	1.5	1.5	15	69.5	101.5	1.5	1.5	81.2
H7212-AC-T-P4	0.8	60	110	22	1.5	1.5	25	69.5	101.5	1.5	1.5	81.2
H7212-C-T-HQ1-P4	0.7	60	110	22	1.5	1.5	15	69.5	101.5	1.5	1.5	81.2
H7212-AC-T-P4	0.7	60	110	22	1.5	1.5	25	69.5	101.5	1.5	1.5	81.2
H71913-C-T-P4	0.2	65	90	13	1	1	15	70	85.5	0.6	0.6	75.1
H71913-AC-TP4	0.2	65	90	13	1	1	25	70	85.5	0.6	0.6	75.1
H71913-C-T-HQ1-P4	0.17	65	90	13	1	1	15	70	85.5	0.6	0.6	75.1
H71913-AC-T-HQ1-P4	0.17	65	90	13	1	1	25	70	85.5	0.6	0.6	75.1
H7011-AC-T-X-P4	0.43	55	90	18	1.1	-	25	62	83	1	0.6	69.7
H7011-C-2RZ-T-HQ1-P4	0.4	SS	90	18	1.1	-	25	62	83	1	0.6	69.7
H7211-C-T-P4	0.61	55	100	21	1.5	1.5	15	63	92	1.5	1.5	73.7
H7211-AC-T-P4	0.61	55	100	21	1.5	1.5	25	63	92	1.5	1.5	73.7
H7211-C-T-HQ1-P4	0.51	55	100	21	1.5	1.5	15	63	92	1.5	1.5	73.7
H7211-AC-T-HQ1-P4	0.51	55	100	21	1.5	1.5	25	63	92	1.5	1.5	73.7
H71912-C-TP4	0.19	60	85	13	1	1	15	65	80.5	0.6	0.6	70.1
H71912-AC-T-P4	0.19	60	85	13	1	1	25	65	80.5	0.6	0.6	70.1
H71912-C-T-HQ1-P4	0.16	60	85	13	1	1	15	65	80.5	0.6	0.6	70.1
H71912-AC-T-HQ1-P4	0.16	60	85	13	1	1	25	65	80.5	0.6	0.6	70.1
H71912-C-T-X-P4	0.21	60	85	13	1	-	15	65	80.5	0.6	0.6	70.2
H71912-AC-T-X-P4	0.21	60	85	13	1	-	25	65	80.S	0.6	0.6	70.2
H71912-C-2RZ-T-HQ1-P4	0.19	60	85	13	1	-	25	65	80.5	0.6	0.6	70.2
H7012-C-T-P4	0.4	60	95	18	1.1	1.1	15	67	88	1	0.6	73.1
H7012-AC-T-P4	0.4	60	95	18	1.1	1.1	25	67	88	1	0.6	73.1
H71913-C-T-X-P4	0.23	65	90	13	1	1	15	70	85.5	0.6	0.6	75.2
H71913-AC-T-XP4	0.23	65	90	13	1	1	25	70	85.5	0.6	0.6	75.2
H71913-AC-2RZ-T-HQ1-P4	0.21	65	90	13	1	1	25	70	85.5	0.6	0.6	75.2
H7013-C-T-P4	0.42	65	100	18	1.1	1.1	15	72	93	1	0.6	78.1

70、719、 72 series								hl2	H12	max		Nominal value
H7013-AC-T-P4	0.42	65	100	18	1.1	1.1	25	72	93	1	0.6	78.1
H7013-C-T-HQ1-P4	0.36	65	100	18	1.1	1.1	15	72	93	1	0.6	78.1
H7013-C-T-X-P4	0.36	65	100	18	1.1	1.1	25	72	93	1	0.6	78.1
H7013-AC-T-HQ1-P4	0.48	65	100	18	1.1	-	15	72	93	1	0.6	79.7
H7013-AC-T-X-P4	0.48	65	100	18	1.1	-	25	72	93	1	0.6	79.7
H7013-C-2RZ-T-HQ1-P4	0.45	65	100	18	1.1	-	25	72	93	1	0.6	79.7
H7213-C-T-P4	1.02	65	120	23	1.5	1.5	15	75.5	109.5	1.5	1.5	88.2
H7213-AC-T-P4	1.02	65	120	23	1.5	1.5	25	75.5	109.5	1.5	1.5	88.2
H7213-C-T-HQ1-P4	0.88	65	120	23	1.5	1.5	15	75.5	109.5	1.5	1.5	88.2
H7213-AC-THQ1-P4	0.88	65	120	23	1.5	1.5	25	75.5	109.5	1.5	1.5	88.2
H71914-C-T-P4	0.33	70	100	16	1	1	15	76	94.5	0.6	0.6	82.2
H71914-AC-T-P4	0.33	70	100	16	1	1	25	76	94.5	0.6	0.6	82.2
H71914-C-T-HQ1-P4	0.28	70	100	16	1	1	15	76	94.5	0.6	0.6	82.2
H71914-AC-T-HQ1-P4	0.28	70	100	16	1	1	25	76	94.5	0.6	0.6	82.2
H71914-C-T-X-P4	0.37	70	100	16	1	-	15	76	94.5	0.6	0.6	82.3
H71914-AC-T-X-P4	0.37	70	100	16	1	-	25	76	94.5	0.6	0.6	82.3
H71914-AC-2RZ-T-HQ1-P4	0.35	70	100	16	1	-	25	76	94.5	0.6	0.6	82.3
H7014-C-T-P4	0.59	70	110	20	1.1	1.1	15	77	102	1	0.6	85
H7014-AC-T-P4	0.59	70	110	20	1.1	1.1	25	77	102	1	0.6	85
H7014-C-T-HQ1P4	0.5	70	110	20	1.1	1.1	15	77	102	1	0.6	85
H7014-AC-T-HQ1-P4	0.5	70	110	20	1.1	1.1	25	77	102	1	0.6	85
H7014-C-T-X-P4	0.67	70	110	20	1.1	-	15	77	102	1	0.6	86.7
H7014-AC-T-X-P4	0.67	70	110	20	1.1	-	25	77	102	1	0.6	86.7
H7014-C-2RZ-T-HQ1-P4	0.63	70	110	20	1.1	-	25	77	102	1	0.6	86.7
H7214-C-T-P4	1.12	70	125	24	1.5	1.5	15	80	115	1.5	1.5	92.7
H7214-AC-T-P4	1.12	70	125	24	1.5	1.5	25	80	115	1.5	1.5	92.7
H7214-C-T-HQ1-P4	0.96	70	125	24	1.5	1.5	15	80	115	1.5	1.5	92.7
H7214-AC-T-HQ1-P4	0.96	70	125	24	1.5	1.5	25	80	115	1.5	1.5	92.7
H71915-C-T-P4	0.35	75	105	16	1	1	15	81	99.5	0.6	0.6	87.2
H71915-AC-T-P4	0.35	75	105	16	1	1	25	81	99.5	0.6	0.6	87.2

H71915-C-T-HQ1-P4	0.3	75	105	16	1	1	15	81	99.5	0.6	0.6	87.2
H71915-AC-T-HQ1-P4	0.3	75	105	16	1	1	25	81	99.5	0.6	0.6	87.2
H71915-C-T-X-P4	0.4	75	10S	16	1	-	15	81	99.5	0.6	0.6	87.3
H71915-AC-T-X-P4	0.4	75	105	16	1	-	25	81	99.5	0.6	0.6	87.3
H71915-AC-2RZ-T-HQ1-P4	0.37	75	105	16	1	-	25	81	99.5	0.6	0.6	87.3
H7015-C-T-P4	0.62	75	115	20	1.1	1.1	15	82	107	1	0.6	90
H7015-AC-T-P4	0.62	75	115	20	1.1	1.1	25	82	107	1	0.6	90
H7015-C-T-HQ1-P4	0.53	75	115	20	1.1	1.1	15	82	107	1	0.6	90
H7015-AC-T-HQ1-P4	0.53	75	115	20	1.1	1.1	25	82	107	1	0.6	90
H7015-C-T-X-P4	0.71	75	115	20	1.1	-	15	82	107	1	0.6	91.7
H7015-AC-T-X-P4	0.71	75	115	20	1.1	-	25	82	107	1	0.6	91.7
H7015-C-2RZ-T-HQ1-P4	0.66	75	115	20	1.1	-	25	82	107	1	0.6	91.7
H7215-C-T-P4	1.21	75	130	25	1.5	1.5	15	85	120	1.5	1.5	97.7
H7215-AC-T-P4	1.21	75	130	25	1.5	1.5	25	85	120	1.5	1.5	97.7
H7215-C-T-HQ1-P4	1.05	75	130	25	1.5	1.5	15	85	120	1.5	1.5	97.7
H7215-AC-T-HQ1-P4	1.05	75	130	25	1.5	1.5	25	85	120	1.5	1.5	97.7
H71916-C-TP4	0.37	80	110	16	1	1	15	86	104	0.6	0.6	92.2
H71916-AC-TP4	0.37	80	110	16	1	1	25	86	104	0.6	0.6	92.2
H71916-C-T-HQ1-P4	0.31	80	110	16	1	1	15	86	104	0.6	0.6	92.2
H71916-AC-T-HQ1-P4	0.31	80	110	16	1	1	25	86	104	0.6	0.6	92.2
H71916-C-T-X-P4	0.41	80	110	16	1	-	15	86	104	0.6	0.6	92.2
H71916-AC-T-X-P4	0.41	80	110	16	1	-	25	86	104	0.6	0.6	92.2
H71916-AC-2RZ-T-HQ1-P4	0.38	80	110	16	1	-	25	86	104	0.6	0.6	92.2
H7016-C-T-P4	0.84	80	125	22	1.1	1.1	15	88	117	1	0.6	96.8
H7016-AC-T-P4	0.84	80	125	22	1.1	1.1	25	88	117	1	0.6	96.8
H7016-C-T-HQ1-P4	0.71	80	125	22	1.1	1.1	15	88	117	1	0.6	96.8
H7016-AC-T-HQ1-P4	0.71	80	125	22	1.1	1.1	25	88	117	1	0.6	96.8
H7016-C-T-X-P4	0.96	80	125	22	1.1	-	15	88	117	1	0.6	98.9

70、719、72 series								hl2	H12	max	ral	Nominal value
H7216-C-T-P4	1.52	80	140	26	2	2	15	94	126	2	2
H7216-AC-T-P4	1.52	80	140	26	2	2	25	94	126	2	2	105.2
H7216-C-T-HQ1-P4	1.4	80	140	26	2	2	15	94	126	2	2	105.2
H7216-AC-T-HQ1-P4	1.4	80	140	26	2	2	25	94	126	2	2	105.2
H71917-C-T-P4	0.53	85	120	18	1.1	1.1	15	92	114	0.6	0.6	99.2
H71917-AC-T-P4	0.53	85	120	18	1.1	1.1	25	92	114	0.6	0.6	99.2
H71917-C-T-HQ1-P4	0.45	85	120	18	1.1	1.1	15	92	114	0.6	0.6	99.2
H71917-AC-T-HQ1-P4	0.45	85	120	18	1.1	1.1	25	92	114	0.6	0.6	99.2
H71917-C-T-X-P4	0.61	85	120	18	1.1	-	15	92	114	0.6	0.6	99.7
H71917-AC-T-X-P4	0.61	85	120	18	1.1	-	25	92	114	0.6	0.6	99.7
H71917-AC-2RZ-T-HQ1-P4	0.57	85	120	18	1.1	-	25	92	114	0.6	0.6	99.7
H7017-C-T-P4	0.89	85	130	22	1.1	11	15	93	122	1	0.6	101.8
H7017-AC-T-P4	0.89	85	130	22	1.1	1.1	25	93	122	1	0.6	101.8
H7017-C-T-HQ1-P4	0.74	85	130	22	1.1	1.1	15	93	122	1	0.6	101.8
H7017-AC-T-HQ1-P4	0.74	85	130	22	1.1	1.1	25	93	122	1	0.6	101.8
H7017-C-T-X-P4	0.99	85	130	22	1.1	-	15	93	122	1	0.6	103.9
H7017-AC-T-X-P4	0.99	85	130	22	1.1	-	25	93	122	1	0.6	103.9
H7017-C-2RZ-T-HQ1-P4	0.93	85	130	22	1.1	-	25	93	122	1	0.6	103.9
H7217-C-T-P4	1.85	85	150	23	2	2	15	98	138	2	2	112.3
H7217-AC-T-P4	1.85	85	150	23	2	2	25	98	138	2	2	112.3
H7217-C-T-HQ1-P4	1.58	85	150	28	2	2	15	98	138	2	2	112.3
H7217-AC-T-HQ1-P4	1.58	85	150	28	2	2	25	98	138	2	2	112.3
H71918-C-T-P4	0.55	90	125	18	1.1	1.1	15	97	119	0.6	0.6	104.2
H71918-AC-T-P4	0.55	90	125	18	1.1	1.1	25	97	119	0.6	0.6	104.2
H71918-C-T-HQ1-P4	0.47	90	125	18	1.1	1.1	15	97	119	0.6	0.6	104.2
H71918-AC-T-HQ1-P4	0.47	90	125	18	1.1	1.1	25	97	119	0.6	0.6	104.2
H71918-C-T-X-P4	0.63	90	125	18	1.1	-	15	97	119	0.6	0.6	104.5
H71918-AC-T-X-P4	0.63	90	125	18	1.1	-	25	97	119	0.6	0.6	104.5
H71918-AC-2RZ-T-HQ1-P4	0.58	90	125	18	1.1	-	25	97	119	0.6	0.6	104.5
H7018-C-T-P4	1.15	90	140	24	1.5	1.5	15	100	131	1.5	0.6	108.6

our HXB high speed spindle bearing is the perfect choice. With its superior performance, durability, and reliability, you can be sure that your machine will operate at its best for years to come.
- Machine tool spindles: State of the art machining processes, like high-speed milling, require a new concept of bearing arrangements for spindles. The application of hybrid bearings has resulted in a remarkable improvement in performance. For many years we have successfully used spindles with hybrid bearings for our own production processes.
- Vacuum Pumps: The reliability of these bearings is of utmost importance, as a breakdown can result in high costs.
- Medical equipment like X-ray tube bearings
- Emergency bearings, like touchdown bearings, for magnetic bearing systems
- Bearings for aeronautic and aerospace applications

High-precision equipment guarantees the quality and reliability of product manufacturing

Hangzhou Huaxing Kechuang Holding Group Co., Ltd.

Hangzhou Huaxing Kechuang Holding Group Co., Ltd was established in March 1995. Currently, there are Hangzhou Huaxing Bearing Co., Ltd., Hangzhou Yijia Precision Bearing Co., Ltd., Zhejiang Aiken Machinery Co., Ltd., Zhejiang Aijing Machinery Technology Co., Ltd., and Hangzhou Aibesi Bearing Co., Ltd., Huaxing Bearing Technology (Changxing) Co., Ltd. 6 companies and 2 industrial parks. We are professional 7220ACPBCP4 100*180*34mm super precision and spindle bearings photovoltaic industry suppliers and company. The group covers a total area of 66,800 square meters, with a planned total construction area of 130,000 square meters and a built-up area of 70,000 square meters. Three of the six companies have passed the identification of high-tech enterprises in key areas supported by the state, and have two provincial-level high-tech R&D centers. The group's R&D center has more than 80 scientific research personnel including doctors, masters, and industry senior engineers. The R&D team is strong. It has participated in the research and development of national science and technology projects and national defense strong military projects for many times. In 2020, Yijia Precision has entered the Aerospace Science and Technology Group and AVIC Group procurement system.

The company strictly follows the IATF16949, ISO9001 quality management system and ISO14001 environmental management system. Simply you can ODM/OEM 7220ACPBCP4 100*180*34mm super precision and spindle bearings photovoltaic industry.

Company Certificate

Passed IS09001: 2000 quality management system and ISO/TSl6949: 2002 quality management system certification.

Factory

Contact us

Address:
East Side of Dongxi Road, Linping Hangzhou, China.
Phone:
86-571-86157772
Fax:
86-571-86157772
Email:
[email protected]

If you need it, please contact us!

We have a strong R&D team, and we can develop and produce products according to the drawings or samples the customers offered.

Language

86-571-86157772
