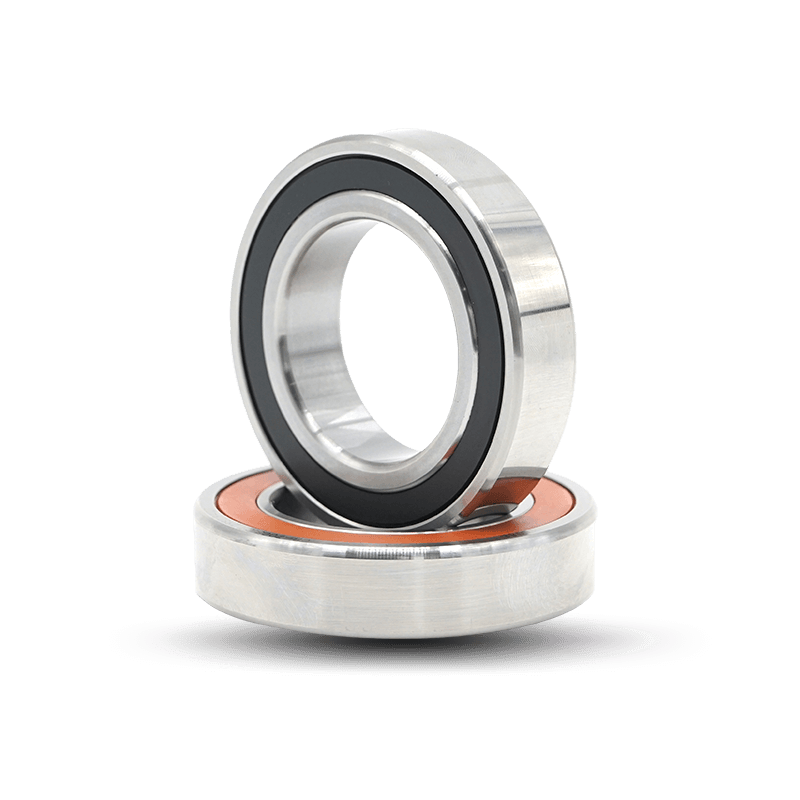

HCB7008-C-2RSD-T-P4S-DT 406815mm high speed spindle angular contact ball bearings-ceramic ball OEM Home / Product / Angular contact ball bearing series / Super precision angular contact ball bearings-ceramic ball / HCB7008-C-2RSD-T-P4S-DT 406815mm high speed spindle angular contact ball bearings-ceramic ball

HCB7008-C-2RSD-T-P4S-DT 406815mm high speed spindle angular contact ball bearings-ceramic ball

The 40*68*15mm high-speed spindle angular contact ball bearing uses ceramic balls as rolling elements, showing excellent performance. Ceramic balls have extremely high hardness, wear resistance and low friction coefficient, allowing this bearing to maintain extremely low heat generation and wear during high-speed operation, thereby ensuring long-term stable operation of the equipment. In addition, the angular contact design enhances the load-bearing capacity and stability of the bearing, making it suitable for applications that require extremely high accuracy and speed, such as high-speed machine tools, precision instruments, etc.

Contact now Ask a question

The products produced by Huaxing Group are widely used in various fields. Please feel free to contact us if you have any bearing requirements!

OVERVIEW
TECHNICAL SPECIFICATION
APPLICATION AND OTHERS

Size Chart Unit: mm	Mass	Boundary Dimensions(mm)					Angel	Assemble Dimensions(mm)
Bearing Numbers	m kg	d	D	B	r	r₁	a	d_a	D_a	r_a	r_a1	E_tk
H7201-C-T-P-4	0.04	12	32	10	0.6	0.6	15	16.5	27.5	0.6	0.6	21.1
H7201-AC-T-P4	0.04	12	32	10	0.6	0.6	25	16.5	27.5	0.6	0.6	21.1
H7201-C-T-HQ1-P4	0.03	12	32	10	0.6	0.6	15	16.5	27.5	0.6	0.6	21.1
H7201-AC-T-HQ1-P4	0.03	12	32	10	0.6	0.6	25	16.5	27.5	0.6	0.6	21.1
H71902-C-T-P4	0.02	15	28	7	0.3	0.3	15	18	25.5	0.3	0.3	20.9
H71902-AC-T-P4	0.02	15	28	7	0.3	0.3	25	18	25.5	0.3	0.3	20.9
H71902-C-T-HQ1-P4	0.01	15	28	7	0.3	0.3	1S	18	25.5	0.3	0.3	20.9
H71902-AC-T-HQ1-P4	0.01	15	28	7	0.3	0.3	25	18	25.5	0.3	0.3	20.9
H71902-C-T-X-P4	0.02	15	28	7	0.3	-	1S	18	25.5	0.3	0.3	20.3
H71902-AC-T-X-P4	0.02	15	28	7	0.3	-	25	18	25.5	0.3	0.3	20.3
H71902-C-2RZ-T-HQ1-P4	0.02	15	28	7	0.3	-	25	18	25.5	0.3	0.3	20.3
H7002-C-T-P-4	0.03	15	32	9	0.3	0.3	15	19	29	0.3	0.1	22.3
H7002-AC-T-P4	0.03	15	32	9	0.3	0.3	25	19	29	0.3	0.1	22.3
H7002-C-T-HQ1-P4	0.03	15	32	9	0.3	0.3	15	19	29	0.3	0.1	22.3
H7002-AC-T-HQ1-P4	0.03	15	32	9	0.3	0.3	25	19	29	0.3	0.1	22.3
H7002-C-T-X-P4	0.03	15	32	9	0.3	-	15	19	29	0.3	0.1	22.2
H7002-AC-T-X-P4	0.03	15	32	9	0.3	-	25	19	29	0.3	0.1	22.2
H7002-C-2RZ-T-HQ1-P4	0.03	15	32	9	0.3	-	25	19	29	0.3	0.1	22.2
H7202-C-T-P-4	0.04	15	35	11	0.6	0.6	15	19.5	30.5	0.6	0.6	23.3
H7202-AC-T-P4	0.04	15	35	11	0.6	0.6	25	19.5	30.5	0.6	0.6	23.3
H7202-C-T-HQ1-P4	0.04	15	35	11	0.6	0.6	15	19.5	30.5	0.6	0.6	23.3
H7202-AC-T-HQ1-P4	0.04	15	35	11	0.6	0.6	25	19.5	30.5	0.6	0.6	23 3
H71903-C-T-P4	0.02	17	30	7	0.3	0.3	15	20	30.5	0.3	0.3	22.2
H71903-AC-T-P4	0.02	17	30	7	0.3	0.3	25	20	27.5	0.3	0.3	22.2
H71903-C-T-HQ1-P4	0.01	17	30	7	0.3	0.3	15	20	27.5	0.3	0.3	22.2
H71903-AC-T-HQ1-P4	0.01	17	30	7	0.3	0.3	25	20	27.5	0.3	0.3	22.2
H71903-C-T-X-P4	0.02	17	30	7	0.3	-	15	20	27.5	0.3	0.3	22.3
H71903-AC-T-X-P4	0.02	17	30	7	0.3	-	25	20	27.5	0.3	0.3	22.3
H71903-AC-T-X-P4	0.02	17	30	7	0.3	-	25	20	27.5	0.3	0.3	22.3
H7003-C-T-P4	0.04	17	35	10	0.3	0.3	15	21	32	0.3	0.1	24.1

H7003-C-T-HQ1-P4	0.03	17	35	10	0.3	0.3	15	21	32	0.3	0.1	24.1
H7003-AC-T-HQ1-P4	0.03	17	35	10	0.3	0.3	25	21	32	0.3	0.1	24.1
H7003-C-T-X-P4	0.04	17	35	10	0.3	-	15	21	32	0.3	0.1	24.7
H7003-AC-T-X-P4	0.04	17	35	10	0.3	-	25	21	32	0.3	0.1	24.7
H7003-C-2RZ-T-HQ1-P4	0.04	17	35	10	0.3	-	25	21	32	0.3	0.1	24.7
H7203-C-T-P4	0.06	17	40	12	0.6	0.6	15	22.5	34.5	0.6	0.6	26.7
H7203-AC-T-P4	0.06	17	40	12	0.6	0.6	25	22.5	34.5	0.6	0.6	26.7
H7203-C-T-HQ1-P4	0.06	17	40	12	0.6	0.6	15	22.5	34.5	0.6	0.6	26.7
H7203-AC-T-HQ1-P4	0.06	17	40	12	0.6	0.6	25	22.5	34.5	0.6	0.6	26.7
H71904-C-T-P4	0.03	20	37	9	0.3	0.3	15	24	33.5	0.3	0.3	26.8
H71904-AC-T-P4	0.03	20	37	9	0.3	0.3	25	24	33.5	0.3	0.3	26.8
H71904-C-T-HQ1-P4	0.03	20	37	9	0.3	0.3	15	24	33.5	0.3	0.3	26.8
H71904-AC-T-HQ1-P4	0.03	20	37	9	0.3	0.3	25	24	33.5	0.3	0.3	26.8
H71904-C-T-X-P4	0.04	20	37	9	0.3	-	15	24	33.5	0.3	03	27.2
H71904-AC-T-X-P4	0.04	20	37	9	0.3	-	25	24	33.5	0.3	0.3	27.2
H71904-C-2RZ-T-HQ1-P4	0.04	20	37	9	0.3	-	25	24	33.5	0.3	0.3	27.2
H7004-C-T-P4	0.07	20	42	12	0.6	0.6	15	25	37	0.6	0.3	28.8
H7004 AC-T-P4	0.07	20	42	12	0.6	0.6	25	25	37	0.6	0.3	28.8
H7004-C-T-HQ1P4	0.07	20	42	12	0.6	0.6	15	25	37	0.6	0.3	28.8
H7004-AC-T-HQ1-P4	0.07	20	42	12	0.6	0.6	25	25	37	0.6	0.3	28.8
H7004-C-T-X-P4	0.08	20	42	12	0.6	1	15	25	37	0.6	0.3	29.3
H7004-AC-T-X-P4	0.08	20	42	12	0.6	1	25	25	37	0.6	0.3	29.3
H7004-C-2RZ-T-HQ1-P4	0.08	20	42	12	0.6	1	25	25	37	0.6	0.3	29.3
H7204-C-T-P4	0.1	20	47	14	1	1	15	26.5	40.5	1	1	31.7
H7204-AC-T-P4	0.1	20	47	14	1	1	25	26.5	40.5	1	1	31.7
H7204-C-T-HQ1-P4	0.09	20	47	14	1	1	15	26.5	40.5	1	1	31.7
H7204-AC-T-HQ1-P4	0.09	20	47	14	1	1	25	26.5	40.5	1	1	31.7
H71905-C-T-P4	0.04	25	42	9	0.3	0.3	15	29	38.5	0.3	0.3	31.8
H71905-AC-T-P4	0.04	25	42	9	0.3	0.3	25	29	38.5	0.3	0.3	31.8

H71905-C-T-HQ1-P4	0.04	25	42	9	0.3	0.3	15	29	38.5	0.3	0.3	31.8
H71905-AC-T-HQ1-P4	0.04	25	42	9	0.3	0.3	25	29	38.5	0.3	0.3	31.8
H71905-C-T-X-P4	0.05	25	42	9	0.3	-	15	29	38.5	0.3	0.3	32.2
H7190S-AC-T-X-P4	0.05	25	42	9	0.3	-	25	29	38.5	0.3	0.3	32.2
H71905-C-2RZ-T-HQ1-P4	0.05	25	42	9	0.3	-	25	29	38.5	0.3	03	32.2
H7005-C-T-P4	0.08	25	47	12	0.6	0.6	15	30	42	0.6	0.3	33.5
H7005-AC-T-P4	0.08	25	47	12	0.6	0.6	25	30	42	0.6	0.3	33.5
H7005-C-T-HQ1-P4	0.08	25	47	12	0.6	0.6	15	30	42	0.6	0.3	33.5
H7005-AC-T-HQ1-P4	0.08	25	47	12	0.6	0.6	25	30	42	0.6	0.3	33.5
H7005-C-T-X-P4	0.09	25	47	12	0.6	-	15	30	42	0.6	0.3	34.3
H7005-AC-T-X-P4	0.09	25	47	12	0.6	-	25	30	42	0.6	0.3	34.3
H7005-C-2RZ-T-HQ1-P4	0.09	25	47	12	0.6	-	25	30	42	0.6	0.3	34.3
H7205-C-T-P4	0.12	25	52	15	1	1	15	31.5	45.5	1	1	36.5
H7205-AC-T-P4	0.12	25	52	15	1	1	25	31.5	45.5	1	1	36.5
H7205-C-T-HQ1-P4	0.12	25	52	15	1	1	15	31.5	45.5	1	1	36.5
H7205-AC-T-HQ1-P4	0.12	25	52	15	1	1	25	31.5	45.5	1	1	36.5
H71906-C-T-P4	0.05	30	47	9	0.3	0.3	15	34	43.5	0.3	0.3	36.8
H71906-AC-TP4	0.05	30	47	9	0.3	0.3	25	34	43.5	0.3	0.3	36.8
H71906-C-T-HQ1-P4	0.04	30	47	9	0.3	0.3	15	34	43.5	0.3	0.3	36.8
H71906-AC-T-HQ1-P4	0.04	30	47	9	0.3	0.3	25	34	43.5	0.3	0.3	36.8
H71906-C-T-X-P4	0.05	30	47	9	0.3	-	15	34	43.5	0.3	0.3	36.8
H71906-AC-T-X-P4	0.05	30	47	9	0.3	-	25	34	43.5	0.3	0.3	36.8
H71906-C-2RZ-T-HQ1-P4	0.05	30	47	9	0.3	-	25	34	43.5	0.3	0.3	36.8
H7006-C-T-P4	0.11	30	55	13	1	1	15	36	49	1	0.3	40.4
H7006-AC-T-P4	0.11	30	55	13	1	1	2S	36	49	1	03	40.4
H7006-C-T-HQ1-P4	0.1	30	55	13	1	1	15	36	49	1	0.3	40.4
H7006-AC-T-HQ1-P4	0.1	30	55	13	1	1	25	36	49	1	0.3	40.4
H7006-C-T-X-P4	0.13	30	55	13	1	-	15	36	49	1	0.3	40.5
H7006-AC-T-X-P4	0.13	30	55	13	1	-	25	36	49	1	0.3	40.5
H7006-C-2RZ-T-HQ1-P4	0.12	30	55	13	1	-	25	36	49	1	0.3	40.5

H7206-C-T-P4	0.19	30	62	16	1	1	15	37.5	54.5	1	1	43.7
H7206-AC-T-P4	0.19	30	62	16	1	1	25	37.5	54.5	1	1	43.7
H7206-C-T-HQ1-P4	0.17	30	62	16	1	1	15	37.5	54.5	1	1	43.7
H7206-AC-T-HQ1-P4	0.17	30	62	16	1	1	25	37.5	54.5	1	1	43.7
H71907-C-T-P4	0.07	35	55	10	0.6	0.6	15	40	51.5	0.6	0.6	44
H71907-AC-T-P4	0.07	35	55	10	0.6	0.6	25	40	51.5	0.6	0.6	44
H71907-C-T-HQ1-P4	0.06	35	55	10	0.6	0.6	15	40	51.5	0.6	0.6	44
H71907-AC-T-HQ1-P4	0.06	35	55	10	0.6	0.6	25	40	51.5	0.6	0.6	44
H71907-C-T-X-P4	0.08	35	55	10	0.6	-	15	40	51.5	0.6	0.6	43.3
H71907-AC-T-X-P4	0.08	35	55	10	0.6	-	25	40	51.5	0.6	0.6	43.3
H71907 C-2RZ-T-HQ1-P4	0.08	35	55	10	0.6	-	25	40	51.5	0.6	0.6	43.3
H7007-C-T-P4	0.15	35	62	14	1	1	15	41	56	1	0.3	45.6
H7007-AC-T-P4	0.15	35	62	14	1	1	25	41	S6	1	0.3	45.6
H7007-C-T-HQ1-P4	0.13	35	62	14	1	1	15	41	56	1	0.3	45.6
H7007-AC-T-HQ1-P4	0.13	35	62	14	1	1	25	41	56	1	03	45.6
H7007-C-T-X-P4	0.17	35	62	14	1	-	15	41	56	1	0.3	46.5
H7007-AC-T-X-P4	0.17	35	62	14	1	-	25	41	56	1	0.3	46.5
H7007-C-2RZ-T-HQ1-P4	0.17	35	62	14	1	-	25	41	56	1	0.3	46.5
H7207-C-T-P4	0.28	35	72	17	1.1	1.1	15	44	63	1	1	50.7
H7207-AC-T-P4	0.28	35	72	17	1.1	1.1	25	44	63	1	1	50.7
H7207-C-T-HQ1-P4	0.24	35	72	17	1.1	1.1	15	44	63	1	1	50.7
H7207-AC-T-HQ1-P4	0.24	35	72	17	1.1	1.1	25	44	63	1	1	50.7
H71908-C-T-P4	0.11	40	62	12	0.6	0.6	15	45	58.5	0.6	0.6	49.1
H71908-AC-T-P4	0.11	40	62	12	0.6	0.6	25	45	58.5	0.6	0.6	49.1
H71908-C-T-HQ1-P4	0.09	40	62	12	0.6	0.6	15	45	58.S	0.6	0.6	49.1
H71908-AC-T-HQ1-P4	0.09	40	62	12	0.6	0.6	25	45	58.5	0.6	0.6	49.1
H71908-C-T-X-P4	0.13	40	62	12	0.6	-	15	45	58.5	0.6	0.6	49.3
H71908-AC-T-XP4	0.13	40	62	12	0.6	-	25	45	58.5	0.6	0.6	49.3
H71908-C-2RZ-T-HQ1P4	0.12	40	62	12	0.6	-	25	45	58.5	0.6	0.6	49.3
H7008-C-T-P4	0.19	40	68	15	1	1	15	46	62	1	0.3	50.8

H7008-AC-T-P4	0.19	40	68	15	1	1	25	46	62	1	0.3	50.8
H7008-C-T-HQ1-P4	0.17	40	68	15	1	1	15	46	62	1	0.3	50.8
H7008-AC-T-HQ1-P4	0.17	40	68	15	1	1	25	46	62	1	0.3	50.8
H7008-C-T-X-P4	0.22	40	68	IS	1	-	15	46	62	1	0.3	52
H7008-AC-T-X-P4	0.22	40	68	15	1	-	25	46	62	1	03	52
H7008-C-2RZ-T-HQ1-P4	0.2	40	68	15	1	-	25	46	62	1	0.3	52
H7208-C-T-P4	0.37	40	80	18	1.1	1.1	15	48	72	1	1	56.7
H7208-AC-T-P4	0.37	40	80	18	1.1	1.1	25	48	72	1	1	56.7
H7208-C-T-HQ1-P4	0.33	40	80	18	1.1	1.1	15	48	72	1	1	56.7
H7208-AC-T-HQ1-P4	0.33	40	80	18	1.1	1.1	25	48	72	1	1	56.7
H71909-C-T-P4	0.13	45	68	12	0.6	0.6	15	50	63.5	0.6	0.6	54.4
H71909-AC-T-P4	0.13	45	68	12	0.6	0.6	25	50	63.5	0.6	0.6	54.4
H71909-C-T-HQ1-P4	0.11	45	68	12	0.6	0.6	15	50	63.5	0.6	0.6	54.4
H71909-AC-T-HQ1-P4	0.11	45	68	12	0.6	0.6	25	50	63.5	0.6	0.6	54.4
H71909-C-T-X-P4	0.14	45	68	12	0.6	-	15	50	63.5	0.6	0.6	54.5
H71909-AC-T-X-P4	0.14	45	68	12	0.6	-	25	50	63.5	0.6	0.6	54.5
H71909-C-2RZ-T-HQ1-P4	0.13	45	68	12	0.6	-	25	50	63.5	0.6	0.6	54.5
H7009-C-T-P4	0.23	45	75	16	1	1	15	51	69	1	0.3	56.2
H7009-AC-T-P4	0.23	45	75	16	1	1	25	51	69	1	0.3	56.2
H7009-C-T-HQ1P4	0.2	45	75	16	1	1	15	51	69	1	0.3	56.2
H7009-AC-T-HQ1-P4	0.2	45	75	16	1	1	25	51	69	1	0.3	56.2
H7009-C-T-X-P4	0.27	45	75	16	1	-	15	51	69	1	0.3	57.7
H7009-AC-T-X-P4	0.27	45	75	16	1	-	25	51	69	1	0.3	57.7
H7009-C-2RZ-T-HQ1-P4	0.26	45	75	16	1	-	25	51	69	1	0.3	57.7
H7209-C-T-P4	0.41	45	85	19	1.1	1.1	15	52.5	78	1	1	61.8
H7209-AC-T-P4	0.41	45	85	19	1.1	1.1	25	52.5	78	1	1	61.8
H7209-C-T-HQ1-P4	0.34	45	85	19	1.1	1.1	15	52.5	78	1	1	61.8
H7209-AC-T-HQ1-P4	0.34	45	85	19	1.1	1.1	25	52.5	78	1	1	61.8
H71910-C-T-P4	0.13	50	72	12	0.6	0.6	15	55	67.5	0.6	0.6	58.9
H71910-AC-T-P4	0.13	50	72	12	0.6	0.6	25	55	67.5	0.6	0.6	58.9

H71910-C-T-HQ1-P4	0.11	50	72	12	0.6	0.6	15	55	67.5	0.6	0.6	58.9
HT1910-AC-T-P4	0.11	50	72	12	0.6	0.6	25	55	67.5	0.6	0.6	58.9
HJ1910-C-T-X-P4	0.15	50	72	12	0.6	0.6	15	55	67.5	0.6	0.6	59
H71910-AC-T-X-P4	0.15	50	72	12	0.6	0.6	25	55	67.5	0.6	0.6	59
H71910-C-2RZ-T-HQl-P4	0.14	50	72	12	0.6	0.6	25	55	67.5	0.6	0.6	59
H7010-C-T-P4	0.25	50	80	16	1	1	15	56	74	1	0.3	61.2
H7010-AC-T-P4	0.25	50	80	16	1	1	25	56	74	1	0.3	61.2
H7010-C-T-HQ1-P4	0.21	50	80	16	1	1	15	56	74	1	0.3	61.2
H7010-AC-T-HQ1-P4	0.21	50	80	16	1	1	25	56	74	1	0.3	61.2
H7010-C-T-X-P4	0.29	50	80	16	1	-	15	56	74	1	0.3	62.7
H7010-AC-T-X-P4	0.29	50	80	16	1	-	25	56	74	1	0.3	62.7
H7010-C-2RZ-T-HQ1-P4	0.27	50	80	16	1	-	25	56	74	1	0.3	62.7
H3210-C-T-P4	0.46	50	90	20	1.1	1.1	15	57	83	1	1	66.2
H7210-AC-T-P4	0.46	50	90	20	1.1	1.1	25	57	83	1	1	66.2
HT210-C-T-HQ1-P4	0.39	50	90	20	1.1	1.1	1S	57	83	1	1	66.2
H7210AC-T-HQ1-P4	0.39	50	90	20	1.1	1.1	25	57	83	1	1	66.2
H71911-C-T-P4	0.18	55	80	13	1	1	15	60	75.5	0.6	0.6	65.1
H71911-AC-T-P4	0.18	55	80	13	1	1	25	60	75.5	0.6	0.6	65.1
H71911-C-T.HQ1-P4	0.15	55	80	13	1	1	15	60	75.5	0.6	0.6	65.1
H71911-AC-THQ1-P4	0.15	55	80	13	1	1	25	60	75.5	0.6	0.6	65.1
HT1911-C-T-X-P4	0.2	55	80	13	1	-	15	60	75.5	0.6	0.6	65.2
HT1911-AC-T-X-P4	0.2	55	80	13	1	-	25	60	75.5	0.6	0.6	65.2
HT1911-C-2RZ-T-HQ1-P4	0.19	55	80	13	1	-	25	60	75.5	0.6	0.6	65.2
H7011-C-T-P4	0.37	55	90	18	1.1	1.1	15	62	83	1	0.6	68.1
H7011-AC-T-P4	0.37	55	90	18	1.1	1.1	25	62	83	1	0.6	68.1
H7011-C-T-HQ1-P4	0.32	55	90	18	1.1	1.1	15	62	83	1	0.6	68.1
H7011-AC-T-HQ1-P4	0.32	55	90	18	1.1	1.1	25	62	83	1	0.6	68.1
H7011-C-T-X-P4	0.43	55	90	18	1.1	-	15	62	83	1	0.6	69.7
H7012-C-T.HQ1-P4	0.34	60	95	18	1.1	1.1	15	67	88	1	0.6	73.1
H7012-AC-THQ1-P4	0.34	60	95	18	1.1	1.1	25	67	88	1	0.6	73.1

70、719、 72 series								hl2	H12	max		Nominal value
H7012-C-T-X-P4	0.46	60	95	18	1.1	-	15	67	88	1	0.6	74.7
H7012-AC-T-X-P4	0.46	60	95	18	1.1	-	25	67	88	1	0.6	74.7
H7012-C-2RZ-T-HQ1-P4	0.43	60	95	18	1.1	-	25	67	88	1	0.6	74.7
H7212-C-T-P4	0.8	60	110	22	1.5	1.5	15	69.5	101.5	1.5	1.5	81.2
H7212-AC-T-P4	0.8	60	110	22	1.5	1.5	25	69.5	101.5	1.5	1.5	81.2
H7212-C-T-HQ1-P4	0.7	60	110	22	1.5	1.5	15	69.5	101.5	1.5	1.5	81.2
H7212-AC-T-P4	0.7	60	110	22	1.5	1.5	25	69.5	101.5	1.5	1.5	81.2
H71913-C-T-P4	0.2	65	90	13	1	1	15	70	85.5	0.6	0.6	75.1
H71913-AC-TP4	0.2	65	90	13	1	1	25	70	85.5	0.6	0.6	75.1
H71913-C-T-HQ1-P4	0.17	65	90	13	1	1	15	70	85.5	0.6	0.6	75.1
H71913-AC-T-HQ1-P4	0.17	65	90	13	1	1	25	70	85.5	0.6	0.6	75.1
H7011-AC-T-X-P4	0.43	55	90	18	1.1	-	25	62	83	1	0.6	69.7
H7011-C-2RZ-T-HQ1-P4	0.4	SS	90	18	1.1	-	25	62	83	1	0.6	69.7
H7211-C-T-P4	0.61	55	100	21	1.5	1.5	15	63	92	1.5	1.5	73.7
H7211-AC-T-P4	0.61	55	100	21	1.5	1.5	25	63	92	1.5	1.5	73.7
H7211-C-T-HQ1-P4	0.51	55	100	21	1.5	1.5	15	63	92	1.5	1.5	73.7
H7211-AC-T-HQ1-P4	0.51	55	100	21	1.5	1.5	25	63	92	1.5	1.5	73.7
H71912-C-TP4	0.19	60	85	13	1	1	15	65	80.5	0.6	0.6	70.1
H71912-AC-T-P4	0.19	60	85	13	1	1	25	65	80.5	0.6	0.6	70.1
H71912-C-T-HQ1-P4	0.16	60	85	13	1	1	15	65	80.5	0.6	0.6	70.1
H71912-AC-T-HQ1-P4	0.16	60	85	13	1	1	25	65	80.5	0.6	0.6	70.1
H71912-C-T-X-P4	0.21	60	85	13	1	-	15	65	80.5	0.6	0.6	70.2
H71912-AC-T-X-P4	0.21	60	85	13	1	-	25	65	80.S	0.6	0.6	70.2
H71912-C-2RZ-T-HQ1-P4	0.19	60	85	13	1	-	25	65	80.5	0.6	0.6	70.2
H7012-C-T-P4	0.4	60	95	18	1.1	1.1	15	67	88	1	0.6	73.1
H7012-AC-T-P4	0.4	60	95	18	1.1	1.1	25	67	88	1	0.6	73.1
H71913-C-T-X-P4	0.23	65	90	13	1	1	15	70	85.5	0.6	0.6	75.2
H71913-AC-T-XP4	0.23	65	90	13	1	1	25	70	85.5	0.6	0.6	75.2
H71913-AC-2RZ-T-HQ1-P4	0.21	65	90	13	1	1	25	70	85.5	0.6	0.6	75.2
H7013-C-T-P4	0.42	65	100	18	1.1	1.1	15	72	93	1	0.6	78.1

70、719、 72 series								hl2	H12	max		Nominal value
H7013-AC-T-P4	0.42	65	100	18	1.1	1.1	25	72	93	1	0.6	78.1
H7013-C-T-HQ1-P4	0.36	65	100	18	1.1	1.1	15	72	93	1	0.6	78.1
H7013-C-T-X-P4	0.36	65	100	18	1.1	1.1	25	72	93	1	0.6	78.1
H7013-AC-T-HQ1-P4	0.48	65	100	18	1.1	-	15	72	93	1	0.6	79.7
H7013-AC-T-X-P4	0.48	65	100	18	1.1	-	25	72	93	1	0.6	79.7
H7013-C-2RZ-T-HQ1-P4	0.45	65	100	18	1.1	-	25	72	93	1	0.6	79.7
H7213-C-T-P4	1.02	65	120	23	1.5	1.5	15	75.5	109.5	1.5	1.5	88.2
H7213-AC-T-P4	1.02	65	120	23	1.5	1.5	25	75.5	109.5	1.5	1.5	88.2
H7213-C-T-HQ1-P4	0.88	65	120	23	1.5	1.5	15	75.5	109.5	1.5	1.5	88.2
H7213-AC-THQ1-P4	0.88	65	120	23	1.5	1.5	25	75.5	109.5	1.5	1.5	88.2
H71914-C-T-P4	0.33	70	100	16	1	1	15	76	94.5	0.6	0.6	82.2
H71914-AC-T-P4	0.33	70	100	16	1	1	25	76	94.5	0.6	0.6	82.2
H71914-C-T-HQ1-P4	0.28	70	100	16	1	1	15	76	94.5	0.6	0.6	82.2
H71914-AC-T-HQ1-P4	0.28	70	100	16	1	1	25	76	94.5	0.6	0.6	82.2
H71914-C-T-X-P4	0.37	70	100	16	1	-	15	76	94.5	0.6	0.6	82.3
H71914-AC-T-X-P4	0.37	70	100	16	1	-	25	76	94.5	0.6	0.6	82.3
H71914-AC-2RZ-T-HQ1-P4	0.35	70	100	16	1	-	25	76	94.5	0.6	0.6	82.3
H7014-C-T-P4	0.59	70	110	20	1.1	1.1	15	77	102	1	0.6	85
H7014-AC-T-P4	0.59	70	110	20	1.1	1.1	25	77	102	1	0.6	85
H7014-C-T-HQ1P4	0.5	70	110	20	1.1	1.1	15	77	102	1	0.6	85
H7014-AC-T-HQ1-P4	0.5	70	110	20	1.1	1.1	25	77	102	1	0.6	85
H7014-C-T-X-P4	0.67	70	110	20	1.1	-	15	77	102	1	0.6	86.7
H7014-AC-T-X-P4	0.67	70	110	20	1.1	-	25	77	102	1	0.6	86.7
H7014-C-2RZ-T-HQ1-P4	0.63	70	110	20	1.1	-	25	77	102	1	0.6	86.7
H7214-C-T-P4	1.12	70	125	24	1.5	1.5	15	80	115	1.5	1.5	92.7
H7214-AC-T-P4	1.12	70	125	24	1.5	1.5	25	80	115	1.5	1.5	92.7
H7214-C-T-HQ1-P4	0.96	70	125	24	1.5	1.5	15	80	115	1.5	1.5	92.7
H7214-AC-T-HQ1-P4	0.96	70	125	24	1.5	1.5	25	80	115	1.5	1.5	92.7
H71915-C-T-P4	0.35	75	105	16	1	1	15	81	99.5	0.6	0.6	87.2
H71915-AC-T-P4	0.35	75	105	16	1	1	25	81	99.5	0.6	0.6	87.2

H71915-C-T-HQ1-P4	0.3	75	105	16	1	1	15	81	99.5	0.6	0.6	87.2
H71915-AC-T-HQ1-P4	0.3	75	105	16	1	1	25	81	99.5	0.6	0.6	87.2
H71915-C-T-X-P4	0.4	75	10S	16	1	-	15	81	99.5	0.6	0.6	87.3
H71915-AC-T-X-P4	0.4	75	105	16	1	-	25	81	99.5	0.6	0.6	87.3
H71915-AC-2RZ-T-HQ1-P4	0.37	75	105	16	1	-	25	81	99.5	0.6	0.6	87.3
H7015-C-T-P4	0.62	75	115	20	1.1	1.1	15	82	107	1	0.6	90
H7015-AC-T-P4	0.62	75	115	20	1.1	1.1	25	82	107	1	0.6	90
H7015-C-T-HQ1-P4	0.53	75	115	20	1.1	1.1	15	82	107	1	0.6	90
H7015-AC-T-HQ1-P4	0.53	75	115	20	1.1	1.1	25	82	107	1	0.6	90
H7015-C-T-X-P4	0.71	75	115	20	1.1	-	15	82	107	1	0.6	91.7
H7015-AC-T-X-P4	0.71	75	115	20	1.1	-	25	82	107	1	0.6	91.7
H7015-C-2RZ-T-HQ1-P4	0.66	75	115	20	1.1	-	25	82	107	1	0.6	91.7
H7215-C-T-P4	1.21	75	130	25	1.5	1.5	15	85	120	1.5	1.5	97.7
H7215-AC-T-P4	1.21	75	130	25	1.5	1.5	25	85	120	1.5	1.5	97.7
H7215-C-T-HQ1-P4	1.05	75	130	25	1.5	1.5	15	85	120	1.5	1.5	97.7
H7215-AC-T-HQ1-P4	1.05	75	130	25	1.5	1.5	25	85	120	1.5	1.5	97.7
H71916-C-TP4	0.37	80	110	16	1	1	15	86	104	0.6	0.6	92.2
H71916-AC-TP4	0.37	80	110	16	1	1	25	86	104	0.6	0.6	92.2
H71916-C-T-HQ1-P4	0.31	80	110	16	1	1	15	86	104	0.6	0.6	92.2
H71916-AC-T-HQ1-P4	0.31	80	110	16	1	1	25	86	104	0.6	0.6	92.2
H71916-C-T-X-P4	0.41	80	110	16	1	-	15	86	104	0.6	0.6	92.2
H71916-AC-T-X-P4	0.41	80	110	16	1	-	25	86	104	0.6	0.6	92.2
H71916-AC-2RZ-T-HQ1-P4	0.38	80	110	16	1	-	25	86	104	0.6	0.6	92.2
H7016-C-T-P4	0.84	80	125	22	1.1	1.1	15	88	117	1	0.6	96.8
H7016-AC-T-P4	0.84	80	125	22	1.1	1.1	25	88	117	1	0.6	96.8
H7016-C-T-HQ1-P4	0.71	80	125	22	1.1	1.1	15	88	117	1	0.6	96.8
H7016-AC-T-HQ1-P4	0.71	80	125	22	1.1	1.1	25	88	117	1	0.6	96.8
H7016-C-T-X-P4	0.96	80	125	22	1.1	-	15	88	117	1	0.6	98.9

70、719、72 series								hl2	H12	max	ral	Nominal value
H7216-C-T-P4	1.52	80	140	26	2	2	15	94	126	2	2
H7216-AC-T-P4	1.52	80	140	26	2	2	25	94	126	2	2	105.2
H7216-C-T-HQ1-P4	1.4	80	140	26	2	2	15	94	126	2	2	105.2
H7216-AC-T-HQ1-P4	1.4	80	140	26	2	2	25	94	126	2	2	105.2
H71917-C-T-P4	0.53	85	120	18	1.1	1.1	15	92	114	0.6	0.6	99.2
H71917-AC-T-P4	0.53	85	120	18	1.1	1.1	25	92	114	0.6	0.6	99.2
H71917-C-T-HQ1-P4	0.45	85	120	18	1.1	1.1	15	92	114	0.6	0.6	99.2
H71917-AC-T-HQ1-P4	0.45	85	120	18	1.1	1.1	25	92	114	0.6	0.6	99.2
H71917-C-T-X-P4	0.61	85	120	18	1.1	-	15	92	114	0.6	0.6	99.7
H71917-AC-T-X-P4	0.61	85	120	18	1.1	-	25	92	114	0.6	0.6	99.7
H71917-AC-2RZ-T-HQ1-P4	0.57	85	120	18	1.1	-	25	92	114	0.6	0.6	99.7
H7017-C-T-P4	0.89	85	130	22	1.1	11	15	93	122	1	0.6	101.8
H7017-AC-T-P4	0.89	85	130	22	1.1	1.1	25	93	122	1	0.6	101.8
H7017-C-T-HQ1-P4	0.74	85	130	22	1.1	1.1	15	93	122	1	0.6	101.8
H7017-AC-T-HQ1-P4	0.74	85	130	22	1.1	1.1	25	93	122	1	0.6	101.8
H7017-C-T-X-P4	0.99	85	130	22	1.1	-	15	93	122	1	0.6	103.9
H7017-AC-T-X-P4	0.99	85	130	22	1.1	-	25	93	122	1	0.6	103.9
H7017-C-2RZ-T-HQ1-P4	0.93	85	130	22	1.1	-	25	93	122	1	0.6	103.9
H7217-C-T-P4	1.85	85	150	23	2	2	15	98	138	2	2	112.3
H7217-AC-T-P4	1.85	85	150	23	2	2	25	98	138	2	2	112.3
H7217-C-T-HQ1-P4	1.58	85	150	28	2	2	15	98	138	2	2	112.3
H7217-AC-T-HQ1-P4	1.58	85	150	28	2	2	25	98	138	2	2	112.3
H71918-C-T-P4	0.55	90	125	18	1.1	1.1	15	97	119	0.6	0.6	104.2
H71918-AC-T-P4	0.55	90	125	18	1.1	1.1	25	97	119	0.6	0.6	104.2
H71918-C-T-HQ1-P4	0.47	90	125	18	1.1	1.1	15	97	119	0.6	0.6	104.2
H71918-AC-T-HQ1-P4	0.47	90	125	18	1.1	1.1	25	97	119	0.6	0.6	104.2
H71918-C-T-X-P4	0.63	90	125	18	1.1	-	15	97	119	0.6	0.6	104.5
H71918-AC-T-X-P4	0.63	90	125	18	1.1	-	25	97	119	0.6	0.6	104.5
H71918-AC-2RZ-T-HQ1-P4	0.58	90	125	18	1.1	-	25	97	119	0.6	0.6	104.5
H7018-C-T-P4	1.15	90	140	24	1.5	1.5	15	100	131	1.5	0.6	108.6

High-precision equipment guarantees the quality and reliability of product manufacturing

Hangzhou Huaxing Kechuang Holding Group Co., Ltd.

Hangzhou Huaxing Kechuang Holding Group Co., Ltd was established in March 1995. Currently, there are Hangzhou Huaxing Bearing Co., Ltd., Hangzhou Yijia Precision Bearing Co., Ltd., Zhejiang Aiken Machinery Co., Ltd., Zhejiang Aijing Machinery Technology Co., Ltd., and Hangzhou Aibesi Bearing Co., Ltd., Huaxing Bearing Technology (Changxing) Co., Ltd. 6 companies and 2 industrial parks. We are professional HCB7008-C-2RSD-T-P4S-DT 40*68*15mm high speed spindle angular contact ball bearings-ceramic ball suppliers and company. The group covers a total area of 66,800 square meters, with a planned total construction area of 130,000 square meters and a built-up area of 70,000 square meters. Three of the six companies have passed the identification of high-tech enterprises in key areas supported by the state, and have two provincial-level high-tech R&D centers. The group's R&D center has more than 80 scientific research personnel including doctors, masters, and industry senior engineers. The R&D team is strong. It has participated in the research and development of national science and technology projects and national defense strong military projects for many times. In 2020, Yijia Precision has entered the Aerospace Science and Technology Group and AVIC Group procurement system.

The company strictly follows the IATF16949, ISO9001 quality management system and ISO14001 environmental management system. Simply you can ODM/OEM HCB7008-C-2RSD-T-P4S-DT 40*68*15mm high speed spindle angular contact ball bearings-ceramic ball .

Company Certificate

Passed IS09001: 2000 quality management system and ISO/TSl6949: 2002 quality management system certification.

Factory

Contact us

Address:
East Side of Dongxi Road, Linping Hangzhou, China.
Phone:
86-571-86157772
Fax:
86-571-86157772
Email:
[email protected]

If you need it, please contact us!

We have a strong R&D team, and we can develop and produce products according to the drawings or samples the customers offered.

Inside Ø (mm):	40
Outside Ø (mm):	68
Width (mm):	15
Tolerance for inside-Ø (mm):	0/-0,006
Tolerance for outside-Ø (mm):	0/-0,007
Tolerance for width (mm):	0/-0,12
Tolerance for shaft da (mm):	0,25/-0,25
Contact Angle:	15°
Rows Of Balls:	single row
Seal:	non-contacted rubber seals
Ring Material:	GCr15, 100Cr6, SUJ2
Rolling Element Material:	Ceramics
Cage Material:	Phenolic Resin
Tolerance Class:	P4S
Lubrication:	greased with Kluber
Type of lubrication:	grease
Product weight:	0,17 kg

Language

86-571-86157772

HCB7008-C-2RSD-T-P4S-DT 406815mm high speed spindle angular contact ball bearings-ceramic ball

The products produced by Huaxing Group are widely used in various fields. Please feel free to contact us if you have any bearing requirements!

Technical Data

Features

High-precision equipment guarantees the quality and reliability of product manufacturing
